Sharp SA-155H User Manual

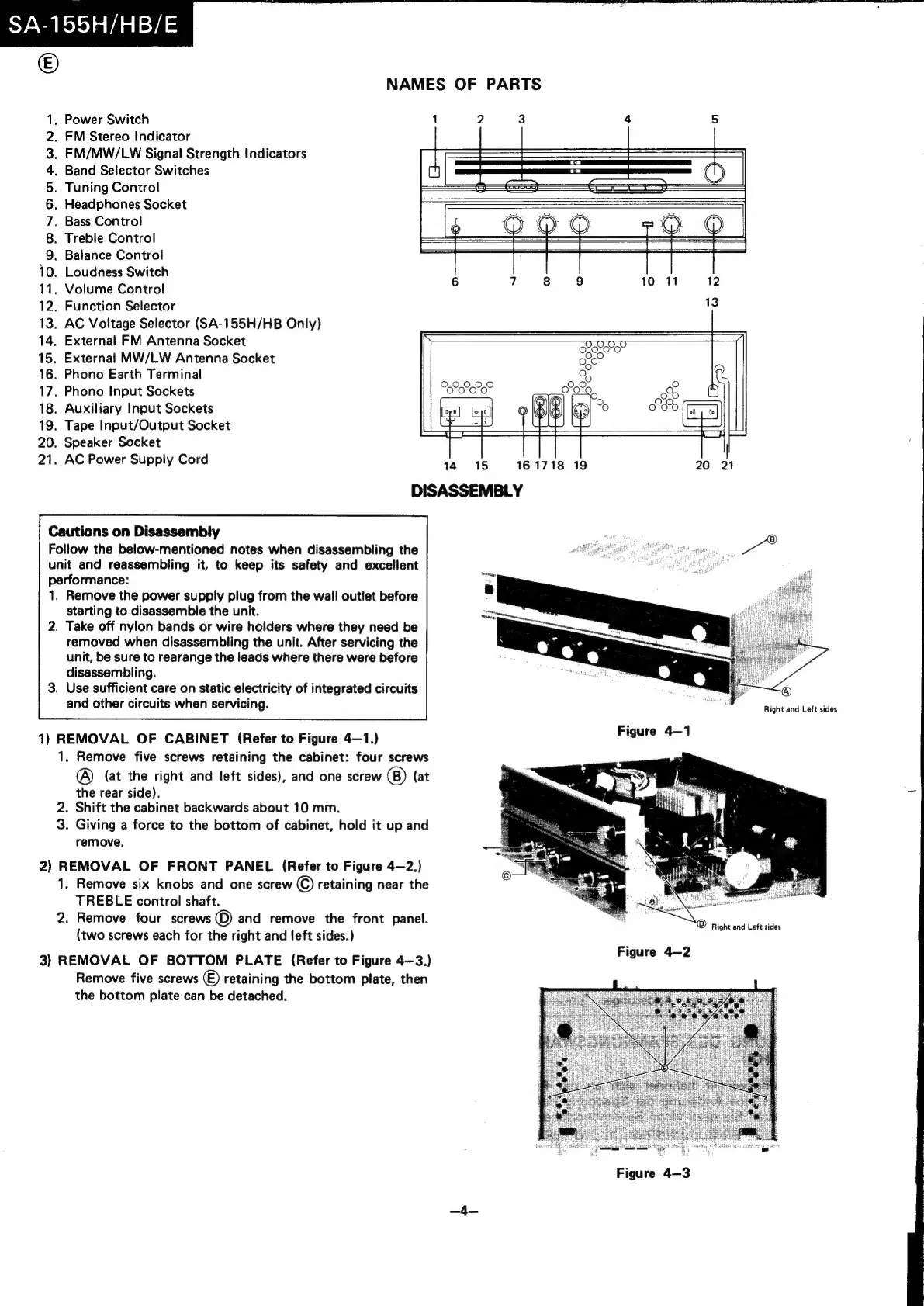

NAMES OF PARTS
. Power Switch
. FM Stereo Indicator
. FM/MW/LW Signal Strength Indicators
Band Selector Switches
Tuning Control
. Headphones Socket
. Bass Control
. Treble Control
OCONATAWN =
. Balance Control
. Loudness Switch
11. Volume Control
. Function Selector
. AC Voltage Selector (SA-155H/HB Only)
10 11 12
. External FM Antenna Socket
. External MW/LW Antenna Socket
. Phono Earth Terminal
. Phono Input Sockets
. Auxiliary Input Sockets
. Tape Input/Output Socket
. Speaker Socket
21. AC Power Supply Cord
14 15 161718 19
DISASSEMBLY
Cautions on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep its safety and excellent
performance:
1. Remove the power supply plug from the wall outlet before
starting to disassemble the unit.
2. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing the
unit, be sure to rearange the leads where there were before
disassembling.
. Use sufficient care on static electricity of integrated circuits
and other circuits when servicing.
1) REMOVAL OF CABINET (Refer to Figure 4—1.)
1. Remove five screws retaining the cabinet: four screws
A (at the right and left sides), and one screw (at
the rear side).
2. Shift the cabinet backwards about 10 mm.
3. Giving a force to the bottom of cabinet, hold it up and
remove.
2) REMOVAL OF FRONT PANEL (Refer to Figure 4—2.)
1. Remove six knobs and one screw (©) retaining near the
TREBLE control shaft.
2. Remove four screws O and remove the front panel.
(two screws each for the right and left sides.)
3) REMOVAL OF BOTTOM PLATE (Refer to Figure 4—3.)
Remove five screws © retaining the bottom plate, then
the bottom plate can be detached.
Right and Left sides
® Right and Left sides
Figure 4—2
Figure 4—3
