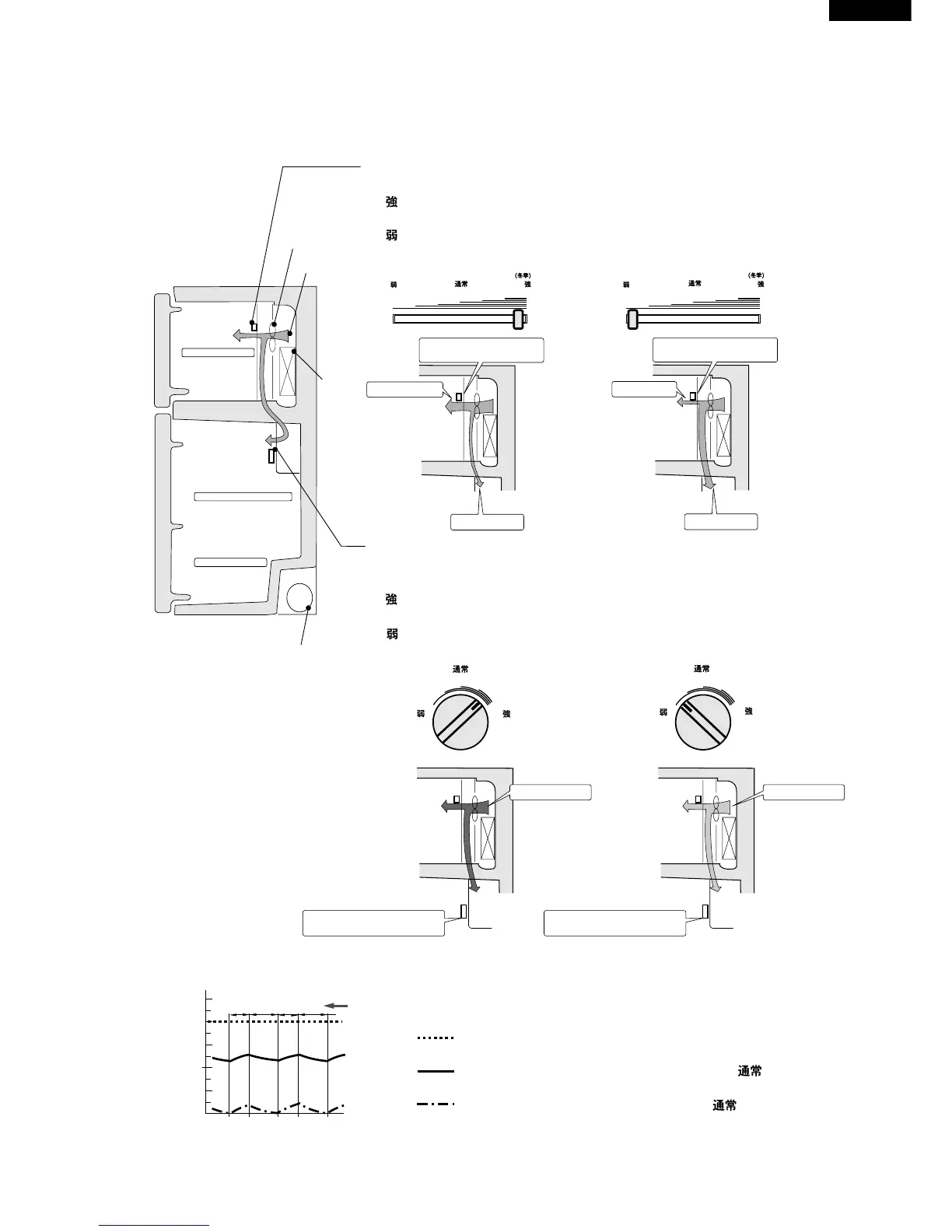

(3) Temp. control system
Ambient temperature
Refrigerator compartment temperature (at " "position)
Freezer compartment temperature (at " "position)
0
Normal operation (ex. at 20 ambient temperature)
ON
Compressor & Fan
10
20
30
-20
-10
Time
OFF
OFF
ON
Temp.( )
FREEZER
COMPARTMENT
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Evapo-
rator
Cold air
Fan
Compressor
4123 567
much cold air
less cold air
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
low cold power
less cold air
4123 567
regulating the quantity
of cold air.
much cold air
1
2
3
4
5
1
2
3
4
5
regulating the quantity
of cold air.
controlling the compressor
& the fan running time
high cold power
controlling the compressor
& the fan running time
Freezer Temp. Control Knob
The Freezer temp. control knob regulates the quantity of cold air to the freezer.
" " (7) setting directs more cold air to the freezer compartment.
(making the freezer compartment colder)
" " (1) setting directs less cold air to the freezer compartment.
(making the freezer compartment less colder)
Refrigerator Temp. Control Knob
The Refrigerator temp. control knob controls the
compressor & the fan running time of the refrigerator system.
" " setting will result in colder temperature in the both
(refrigerator and freezer) compartments.
" " control setting will result in warmer temperature in the
both (refrigerator and freezer) compartments.
°C
°C

Sharp SJ-21P-GY Specifications

General

Brand	Sharp
Model	SJ-21P-GY
Category	Refrigerator
Language	English
