SJ-21P
SJ-D25P

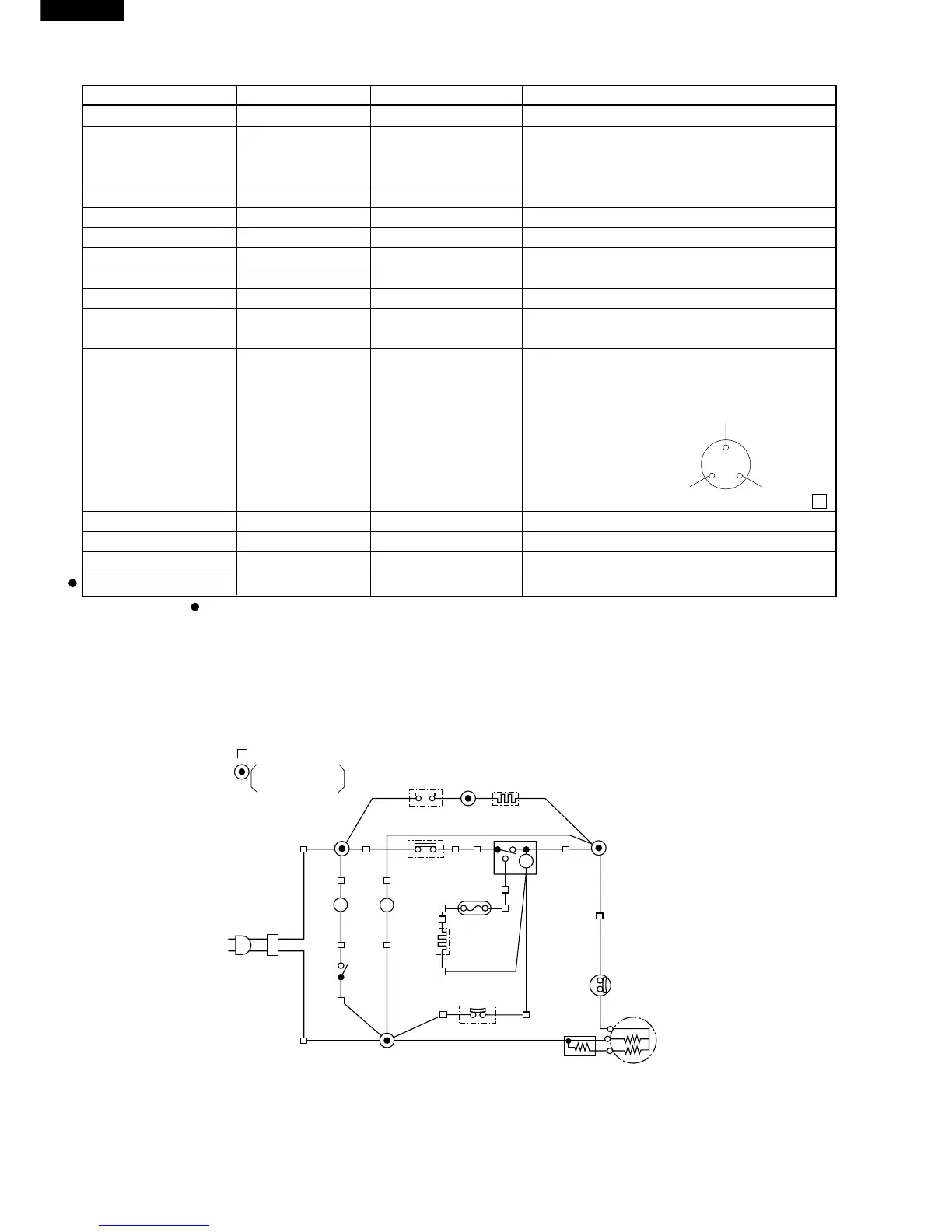

WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.
Figure W-1. Wiring Diagram
CONNECTOR
CONNECTED IN
TERMINAL BOX
Compressor
Starting relay
(P.T.C relay)
(Bk)
C
M
A
(Br)
Lamp
(S-B)
(Br)
(G)
(R)
Protector
(Overload relay)
(B)
(B)
(O)
(Y)(Y)
(O)
(Bk)
2
34
1
(W)
Door
Switch
Fan Motor
Defrost
Heater
Compartment
Heater
Defrost
Thermo.
Thermo.
Fuse
R-Thermo.
Compensating
Thermo.
2PIN AC
Plug /
Cord
Defrost
Timer
B : BLUE
G : GRAY
Bk : BLACK
P : PINK
Br : BROWN
S-B : SKY-BLUE
O: ORANGE
W: WHITE
Y: YELLOW
R: RED
FM
TM
L
LIST OF ELECTRICAL PARTS
ITEMS TYPE NAME RATING SPECIFICATIONS
Defrost thermostat S101 125V,15A Open : 10˚C , Close : 1˚C
Timer TMDFX04FB2 100-127V Integration type
50/ 60Hz Cycle time : 10h (60Hz)
Delay time : 4m (60Hz)
Thermo. fuse (defrost) SF70E 250V,10A Cut off temperature : 70˚C
Door switch 100424NC 250V,0.25A 2 terminals type push-button
Fan motor 3R00057B 110V,60Hz —
Lamp — 110V,10W E-12
Lamp socket — 250V,1A E-12 (Hard plastic body type)
R-thermostat MM1-8071F — ON : 3.5˚C , OFF : 0.5˚C
Defrost heater — 100-110V 78.8Ω without deodorizer (SJ-21P)
78.8Ω with deodorizer (SJ-D25P)
Compressor EMI50HNP 115V Main : 3.85Ω
60Hz Aux : 7.70Ω
Cooling capacity 151W
Terminal shape
1
Starting relay P600E ——
Protector 4TM319RFBYY ——
Compensating thermostat
S101 125V,15A Open : 25˚C , Close : 17˚C
Compartment heater — 110V, 4.8W 2500Ω
The black dot ( ) indicates non-replacement parts or part which is not replaceable itself.
Common
Main coil
Aux. coil
