9
SJ-43L-A2
SJ-47L-A2

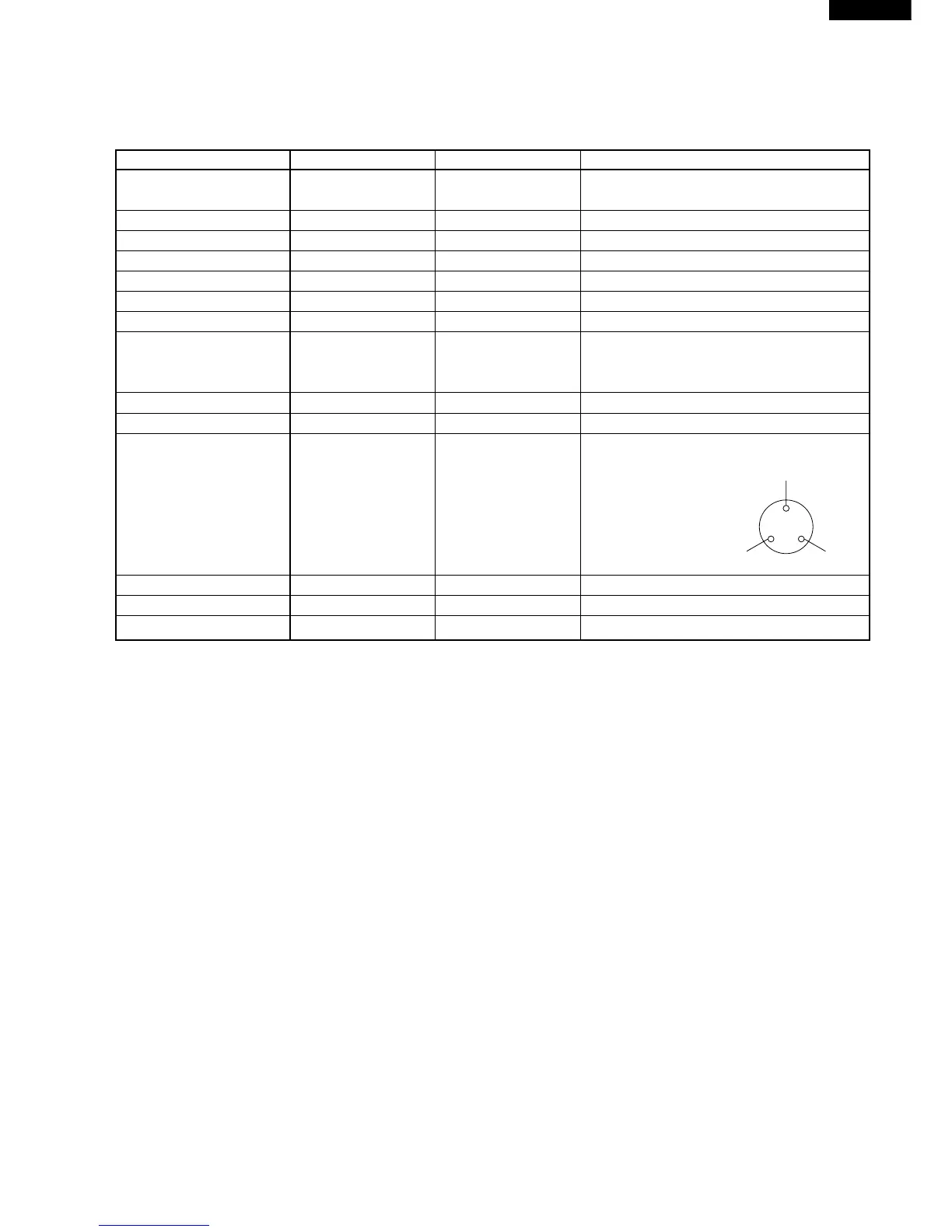

LIST OF ELECTRICAL PARTS
ITEMS TYPE NAME RATING SPECIFICATIONS
Thermostat MM1-8149 125V 6A (At normal notch)
250V 3A ON/OFF : -20 / -25˚C
Defrost thermostat S101 250V 8A Open/Close : 8 / 1˚C
Thermo. fuse SF70E 250V 10A Working temp. : 70˚C
Fan motor 3R00121A 220-240V 50/60Hz Working with ø100 fan
Defrost heater MM6-4264 220-240V 378Ω 140W at 230V
Door switch DSD-5 250V 0.25A 4 terminals push-button type
Damper thermostat MM1-6173 — Open/Close : 5 / 0˚C
Defrost timer ND1004M2 220-240V Integration type
50/60Hz Cycle time : 10h44m/8h57m(50/60Hz)
Delay time : 4m20s/3m37s(50/60Hz)
Lamp socket — 250V 1A E-12(Hard plastic body type)
Lamp — 240V 15W E-12
Compressor FL1568SD 220-240V/50Hz Cooling capacity : 188W (50Hz)
Main coil : 13.3Ω
Aux. coil : 25.6Ω
(at 25˚C)
Starting relay PET0SAT — 22 Ω 300V
Overload relay(Protector) 1.8C36A1 — Open/ Close : 130/60˚C
Running capatior — 420V or 450V 4µF—
Common
Main coil
Aux. coil
To Next Page
