Sharp SJ-A20S-SL

5 – 1
SJD26LVSL
CHAPTER 5. WIRING DIAGRAM

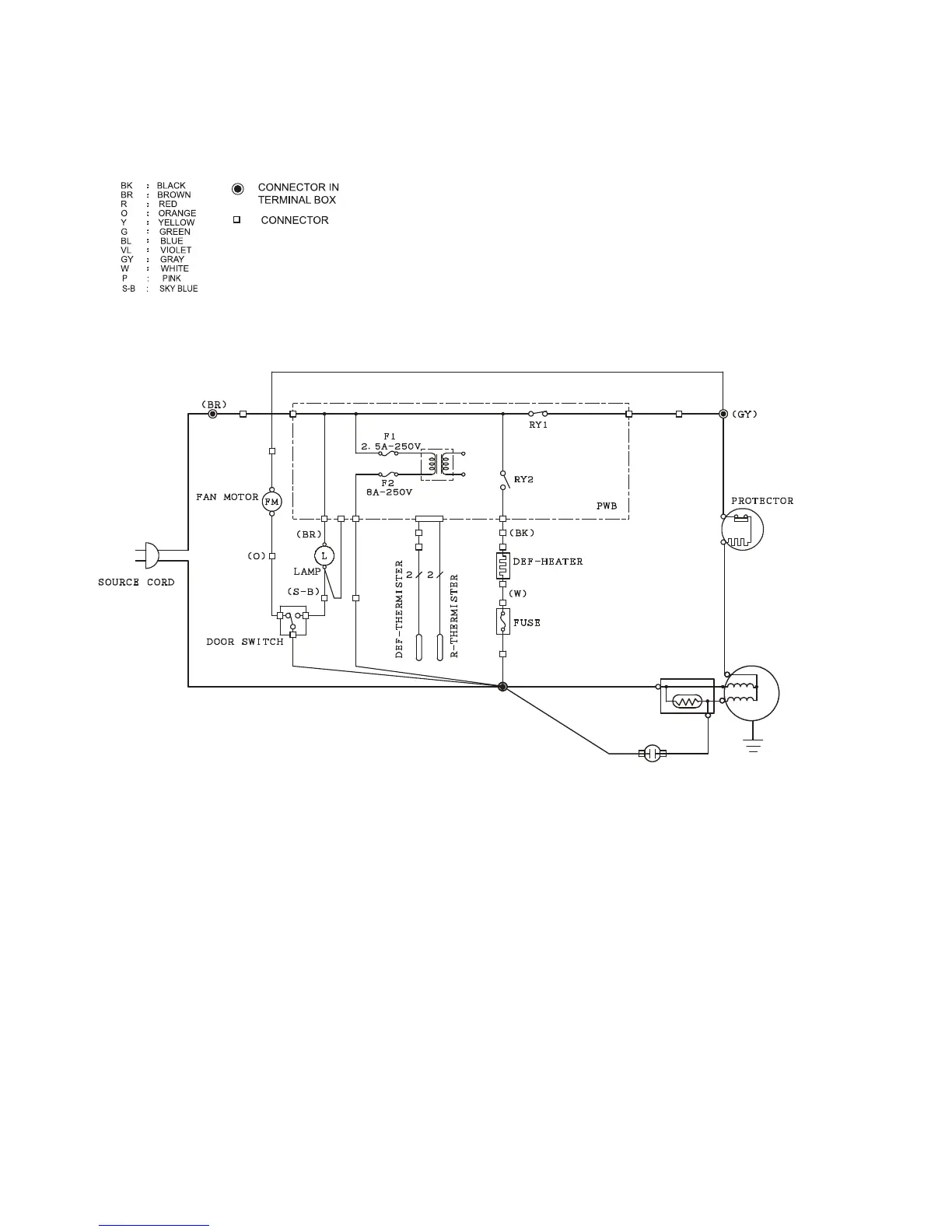

[1] WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.
(BL)
STARTING RELAY
COMPRESSOR
RUNNING CAPACITOR
!"#$% &'$( &#$) &'$* &#$+ &'$, &#-( &#-)
