Sharp SJ-D20N-SLG - R Control Cov. Assy

SJD24NSLG
8 – 4

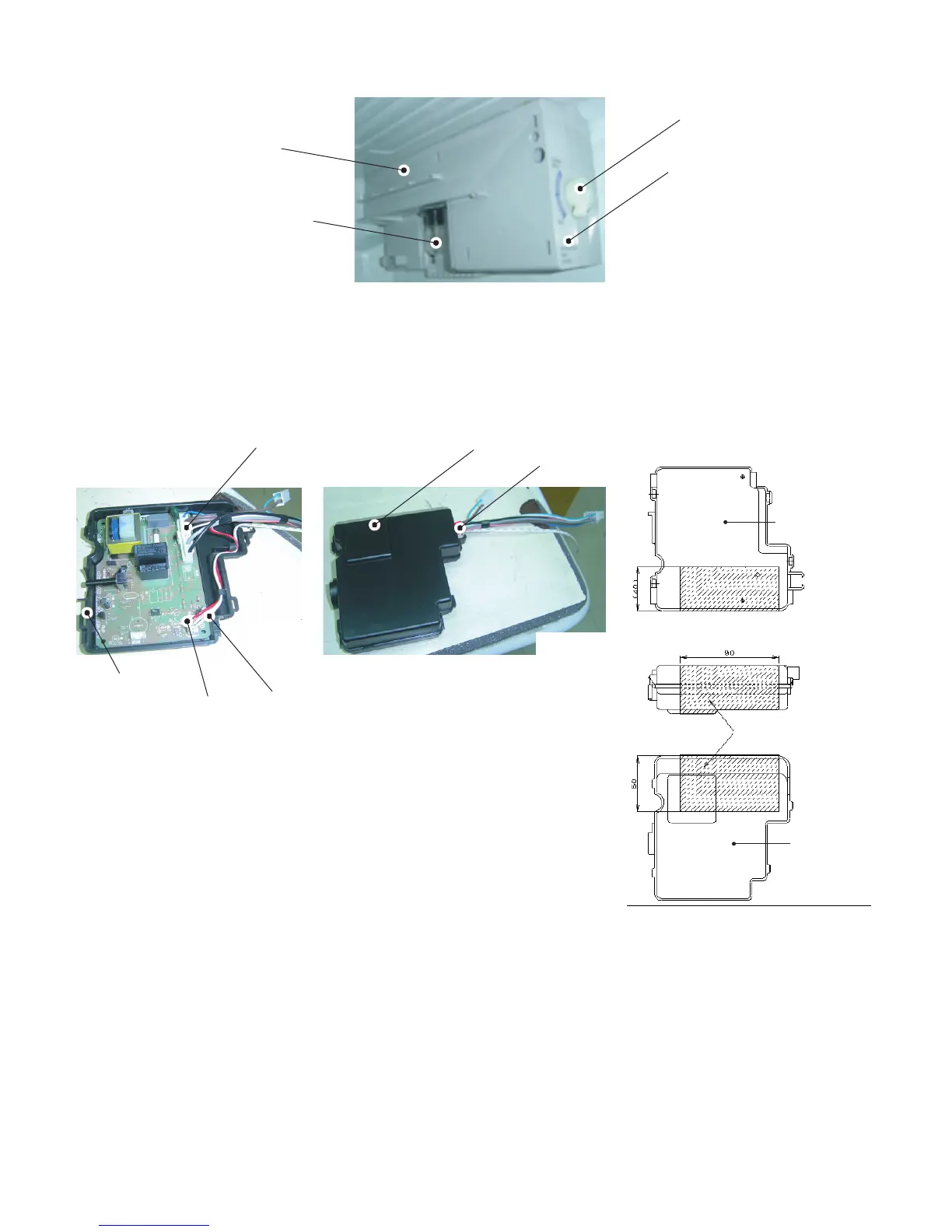

[2] R CONTROL COV. ASS'Y
1. Insert Lead R-Thermistor to Lead R-C Box.
2. Inset Lead R-C box to PWB L ass'y.
3. Assemble the PWB L ass’y with PWB holder A and then assemble the PWB holder A with PWB holder B.
4. Stick the R-control AL on PWB holder A/B ass’y.
Lamp
R-C Box cover
Control label
R-Control knob
Figure A-10
Lead R-Thermistor( White wire)
Lead R-C Box
Lead R-C Box
PWB holder B
PWB holder A
Lead sealer
Figure A-11
PWB holder A
R-control AL
PWB holder B
