SJD24NSLG
8 – 7
[4] DEFROST HEATER
1. Taking-out Evaporator
1. Take-out Fan louver ass’y.
2. Take-out E.V cover ass’y.

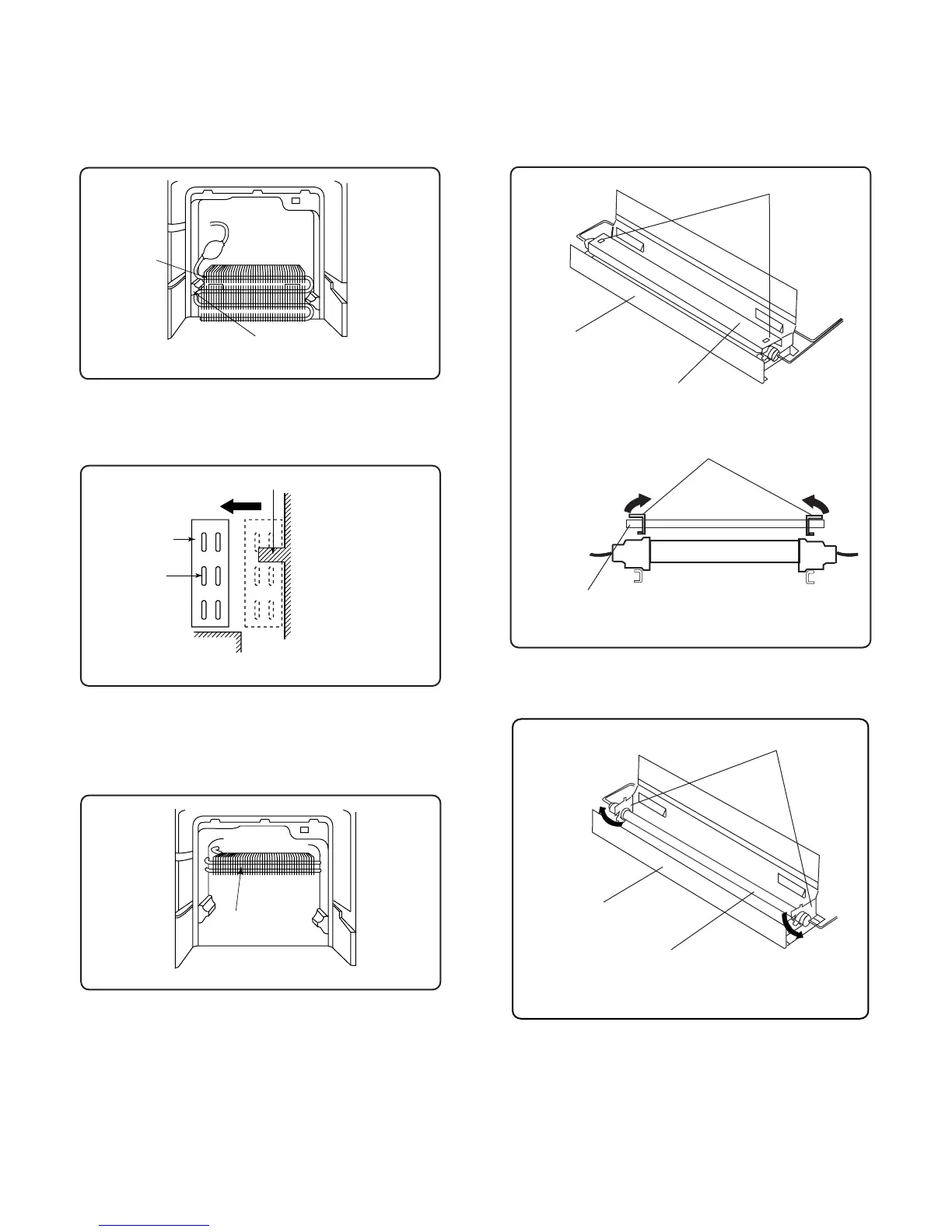

3. As shown in Figure A-15, pull the upper part of Evaporator toward
you, pull it diagonally so that the pipe of Evaporator does not con-
tact the convex part of food liner.
4. Pull the Evaporator for remove as shown in Figure A-16.
NOTE: When pulling Evaporator and bending the pipes,pay attention
so as not to break and deform the pipes. Still, take care not to
hurt yourself by fin of Evaporator.
2. Replacement of Def. heater.
1. Remove the aluminium tape on Heater support to take it off from
the food liner.
2. Raise the protrusion part of Heater support. Then remove Heater
cover.
3. Open Def.heater fixed part of Heater support al to the right and left,
then remove Def.heater ass’y.
Evaporator
Food liner convex part
Figure A-15
Food liner convex part
Evaporator
Pipe
Figure A-16
Evaporator
Figure A-17
Heater cover
Protrusion parts
Protrusion part of Drain support al(2 pcs.)
Heater cover
Def. heater ass'y
Heater support
Figure A-18
Heater support
Fixed parts
Def.heater ass’y
Figure A-19
To Next Page
