SJF800SPSL
11 2

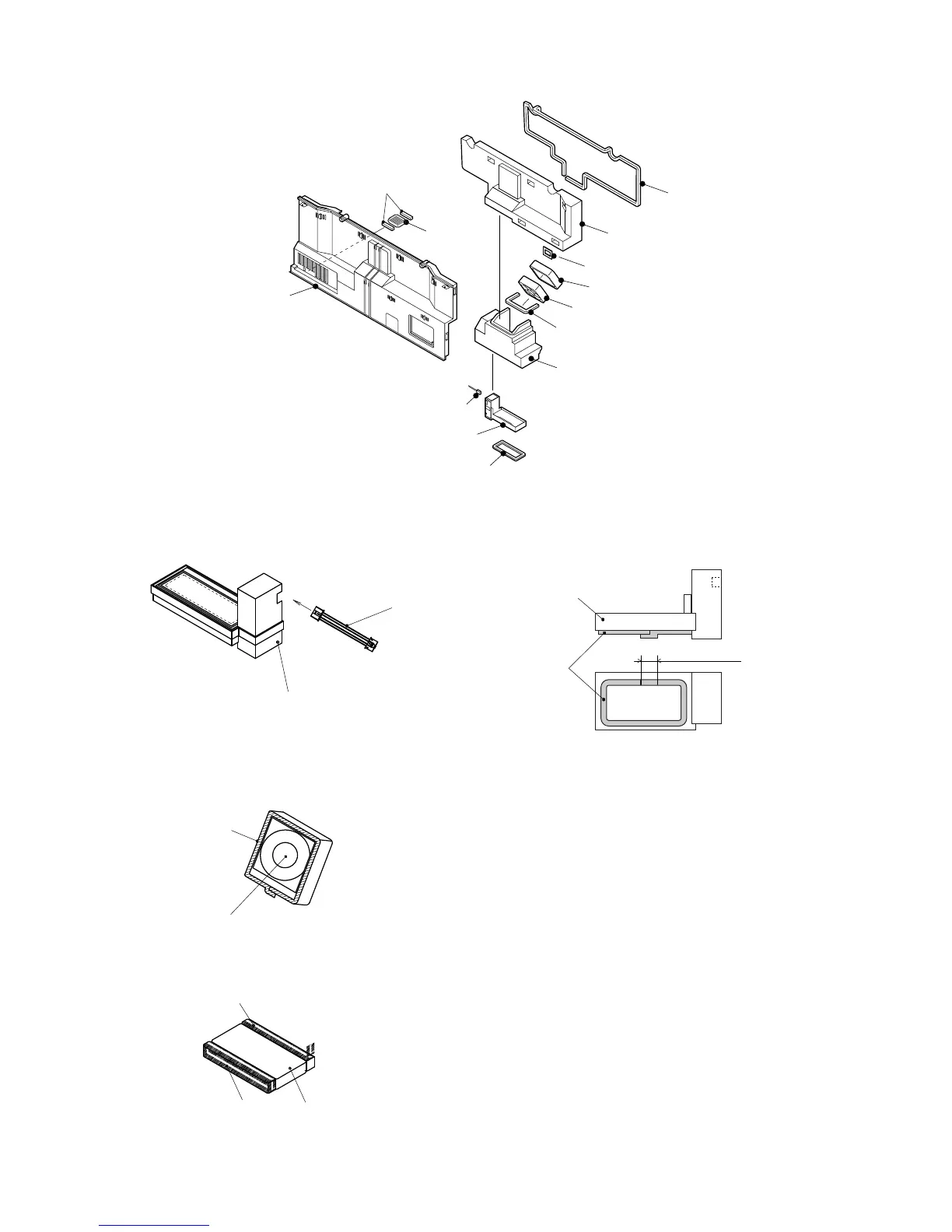

2. Assembling procedures of R CONTROL BOX ASS’Y.
1. Insert Lead r-c box to Damper ass’y and next stick A-sealer rc-d to Damper ass’y (lead wire shall be fix by A-sealer rc-d)
2. Stick A-sealer rc-a to R fan motor.
3. Stick A-sealer ag4 to deodorizer.
A-sealer rc-c
A-sealer ag4
Deodorizer
R-C box cover
A-sealer rc-d
A-sealer rc-a
R fan motor
R air guider a
R air guider b
Damper ass'y
Lead r-c box
A-sealer rc-g
A-sealer rc-f
Damper ass’y
Lead r-c box
Damper ass’y
A-sealer rc-d
10~20 over rap
R fan motor
A-sealer rc-a
A-sealer ag4
A-sealer ag4
Deodorizer
