[4] DEFROST HEATER

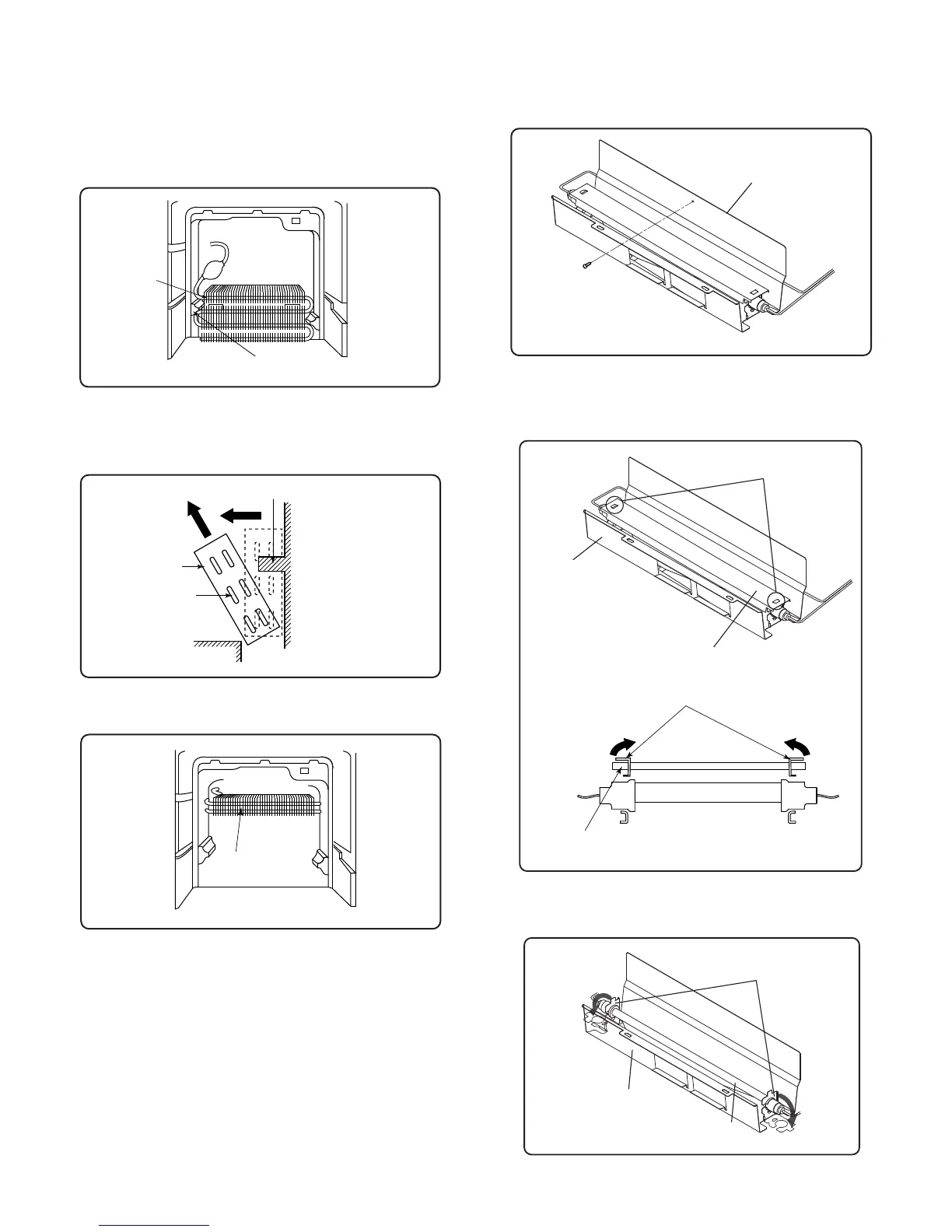

1. Taking-out Evaporator
1. Take-out C Partition ffb ass’y.
2. Take-out Fan louver.
3. Take-out E.V cover ass’y.
4. As shown in the above figure, pull the upper part of Evaporator
toward you, pull it diagonally so that the pipe of Evaporator does
not contact the convex part of food liner.
5. Pull the Evaporator for remove as shown in the above figure.
NOTE: When pulling Evaporator and bending the pipes,pay attention
so as not to break and deform the pipes. Still, take care not to
hurt yourself by fin of Evaporator.
2. Replacement of Def. heater.
1. Remove the center screw of Heater support to take it off from the
food liner.
2. Raise the protrusion part of Heater support. Then remove Heater
cover.
3. Open Def.heater fixed part of Heater support to the right and left,
then remove Def.heater.
To Next Page
