SJF800SPSL
11 14

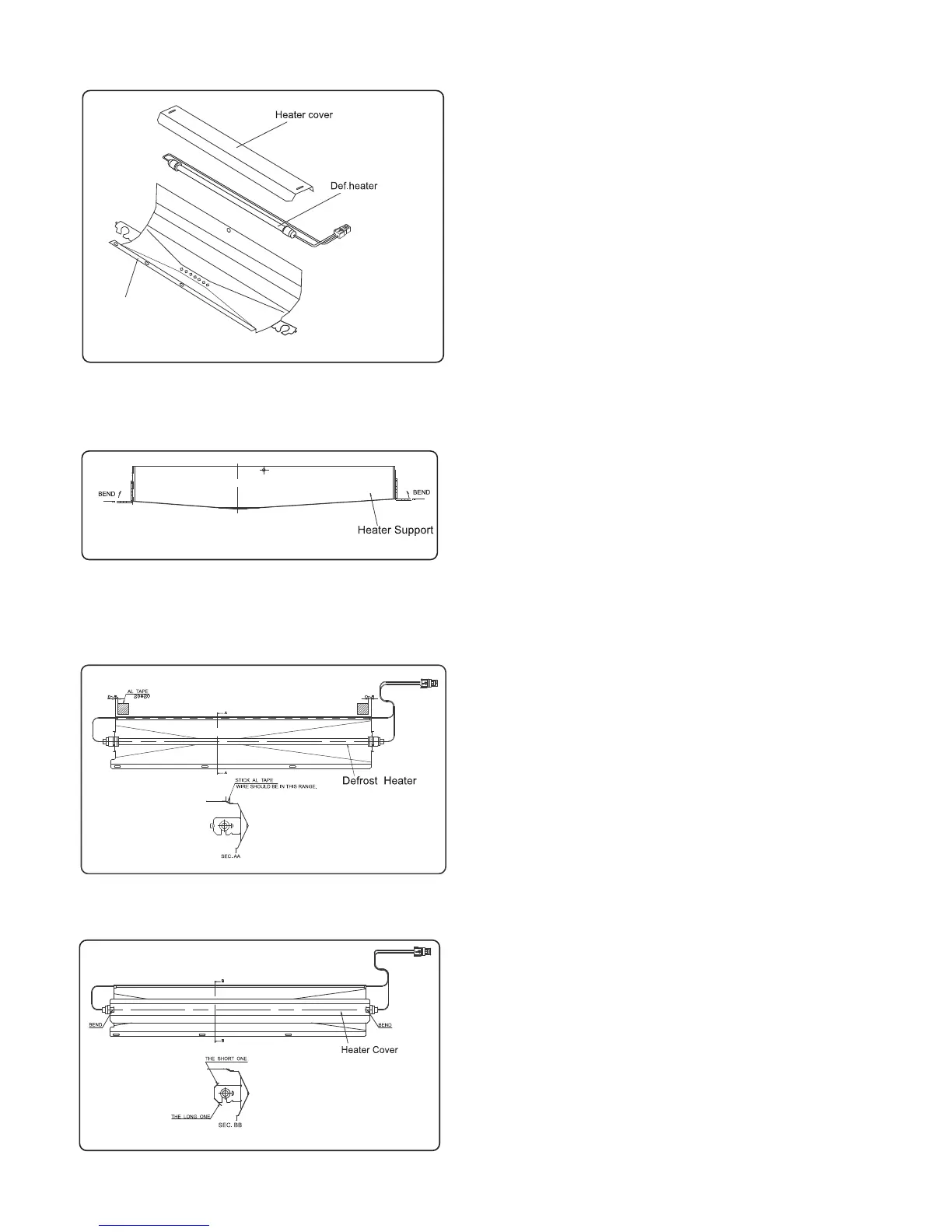

4. Replace Def. heater with new one.
5. Bend end of heater support.
6. Assemble Defrost heater to Heater Support.
7. Assemble Heater cover to Heater Support. Bend top edge to out-
side.
8. Roll the leading wire Sealer to Lead wire Defrost Heater.
3. Installing of Evaporator
1. Install Evaporator as shown in 1-3 in the reverse order of 1-4.
2. Correct the deformed fin.
NOTE: 1.When installing Evaporator, take care not to deform signifi-
cantly and break the pipes.
2.Take care not to damage the lead wires and hurt yourself by
the fin of Evaporator.
Heater support
(Unit : mm)
