SJF800SPSL
11 – 1
SJF800SPSL
ServiceManual

CHAPTER 11. DISASSEMBLING/ASSEMBLING PROCEDURES
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY REPAIRING.

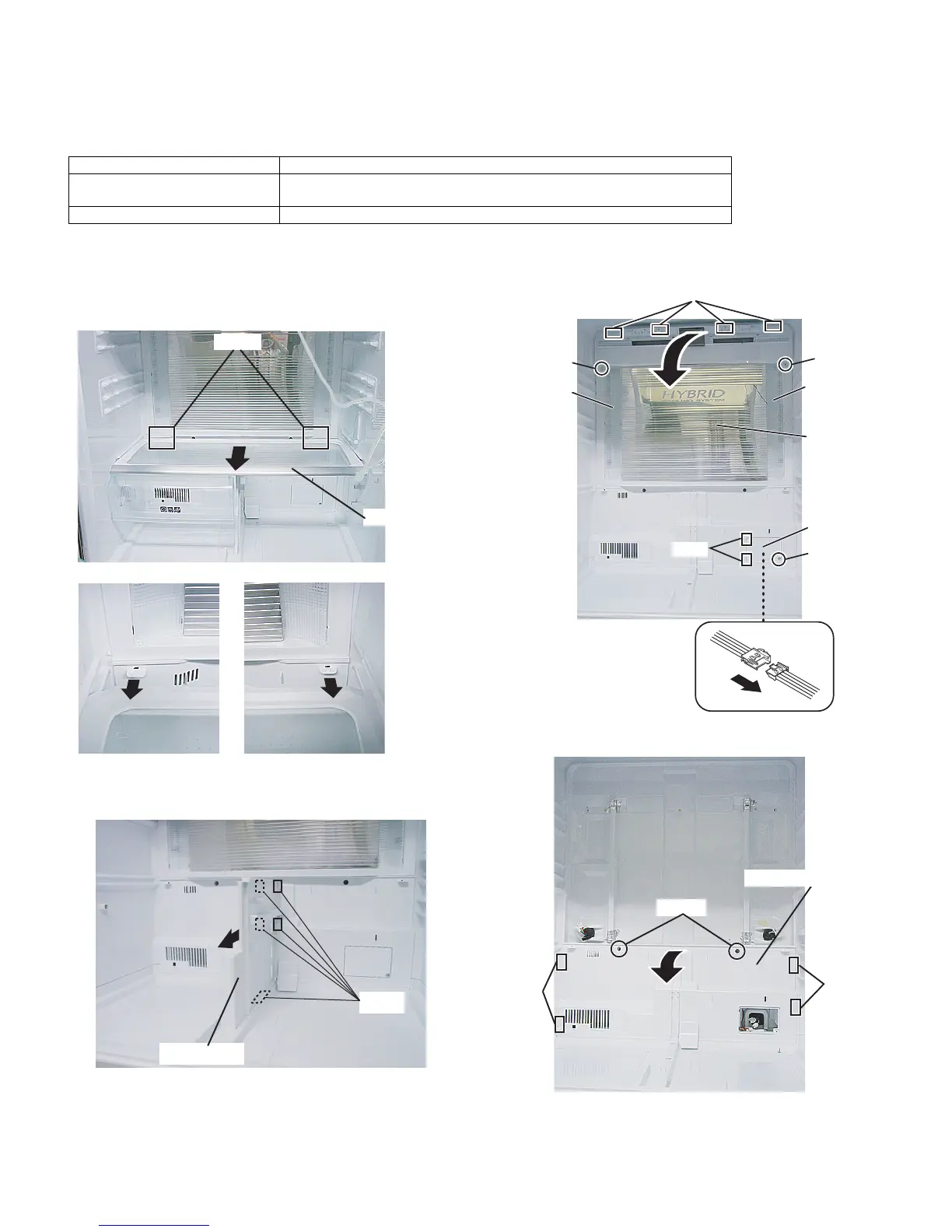

[1] REFRIGERATOR COMPARTMENT
1. Disassembling procedures
1. Remove the accessories(shelves, fresh case, etc.).
2. Remove the v shelf ass'y.
3. Remove the r-case stay
4. Remove the r con cover s, and disconnect the connector.
5. Remove the r lamp cover and the r-louver ass'y.
6. Remove the r control box ass'y.
Parents parts name Included electrical parts
R-louver ass'y
Plasmacluster unit, Lr led pwb ass'y, Top led pwb ass'y, Pci pwb ass'y,
Lr led harness, Pci indicator harness, R-thermistor
R control box ass'y Damper ass'y, Lead r-c box, R fan motor
Latch
V shelf ass'y
Latch
R-case stay
Latch
R-louver ass'y
R con cover s
Latch
Screw
Screw
Screw
R lamp cover r
R lamp cover l
Screw
Latch
Latch
R contorol box ass'y
