Sharp SJ-P65M-SLG - ASSEMBLY PROCEDURES OF MAIN PARTS AND CAUTIONS; R-CONTROL COV. ASSEMBLY

15
SJ-D59M/P60M
SJ-D64M/P65M
SJ-D69M/P70M
ASSEMBLING PROCEDURES OF MAIN PARTS AND CAUTIONS
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY REPAIRING.

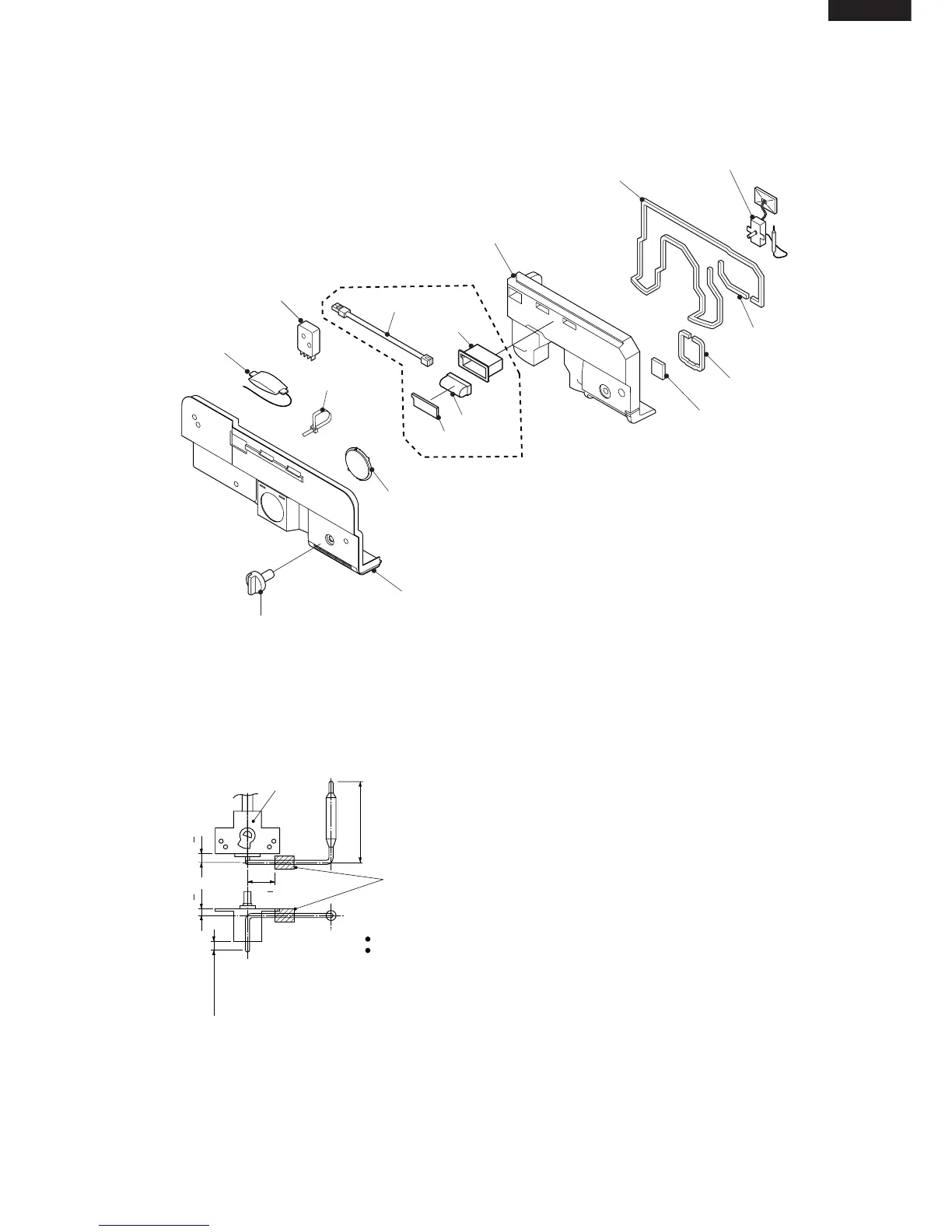

1. R-CONTROL COV. ASSEMBLY
(Only for SJ-P60M,P65M,P70M)
R-temp. control knob
Nylon band
Fan cover
R-C box cover
RA sealer B
RA sealer
C
Dial sealer
R air guider A
RA sealer A
Damper thermo.
Defrost timer
R
fan thermo. ass'y
Ionizer-K
Plasma holder
Holder cover
Plasma harness
Figure A-1
Figure A-2
(1) Forming sensor of Damper thermo.
Stick thermo.
cap. sealer
Less than 130 m
m
Damper
thermostat
3
1
mm
5
1
mm
L
ess than 12 mm
25
2
mm
NOTE
Minimum bending radius is R5mm.
There should be no gas leak by reforming of sensor tub
e.
+
++
After forming, fix it to the refrigerator.
