(2) Sticking of sealers to R air guider A.

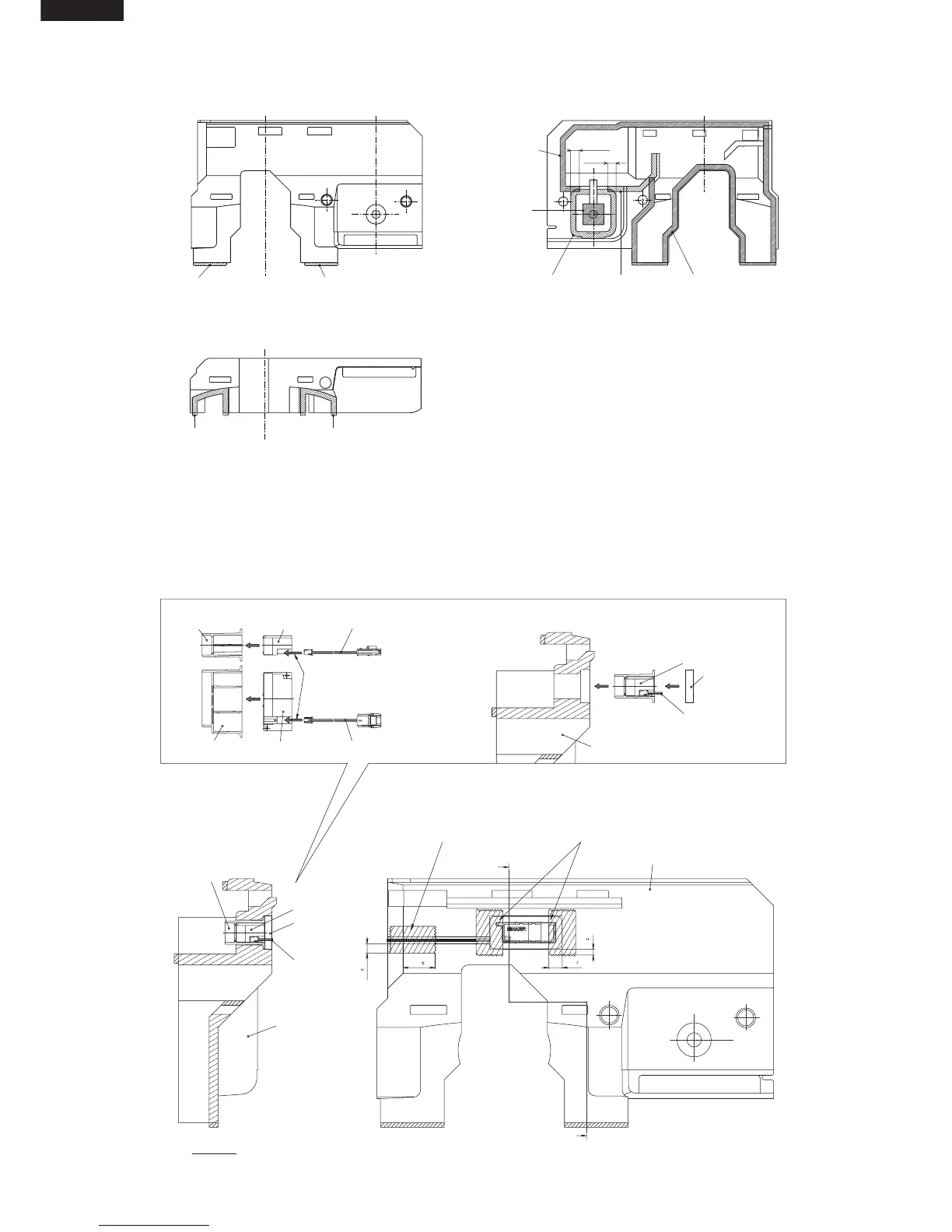

Figure A-3
(3) Fixing of the Ionizer-K.(Only for SJ-P60M, P65M, P70M)
(3)-1 Connect Ionizer-K and connector of the lead wire.
(3)-2 Insert Ionizer-K to Plasma holder.
(3)-3 Insert the (3)-2 assembly to R air guider A.
(3)-4 Insert Holder cover to (3)-3 assembly and fix by the paper tepe.
10
25
5
Paper tape W30X50mm
Paper tape W30X40mm
B
B
Connecter should insert surely.
２Ｐ
Plasma holder Ionizer-K
Ionizer-K
Holder cover
Holder cover
Ionizer-K
Ionizer-K
Plasma harness
R aire guider A
R aire guider A
R aire guider A
Plasma holder
P
lasma holder
5
5
15
5
3
2P
2P
2P
2P
２Ｐ
SEC. B-B
Plasma harness
Plasma harness
Plasma
harness
RA sealer A
RA sealer A
RA sealer A
RA sealer CRA sealer B
RA sealer A
RA sealer ARA sealer A
[Front side]
[Back side]
[
Bottom side]
Dial sealer
OVERLAP 15mm
OVERLAP 15mm
Figure A-4
