17
SJ-D59M/P60M
SJ-D64M/P65M
SJ-D69M/P70M

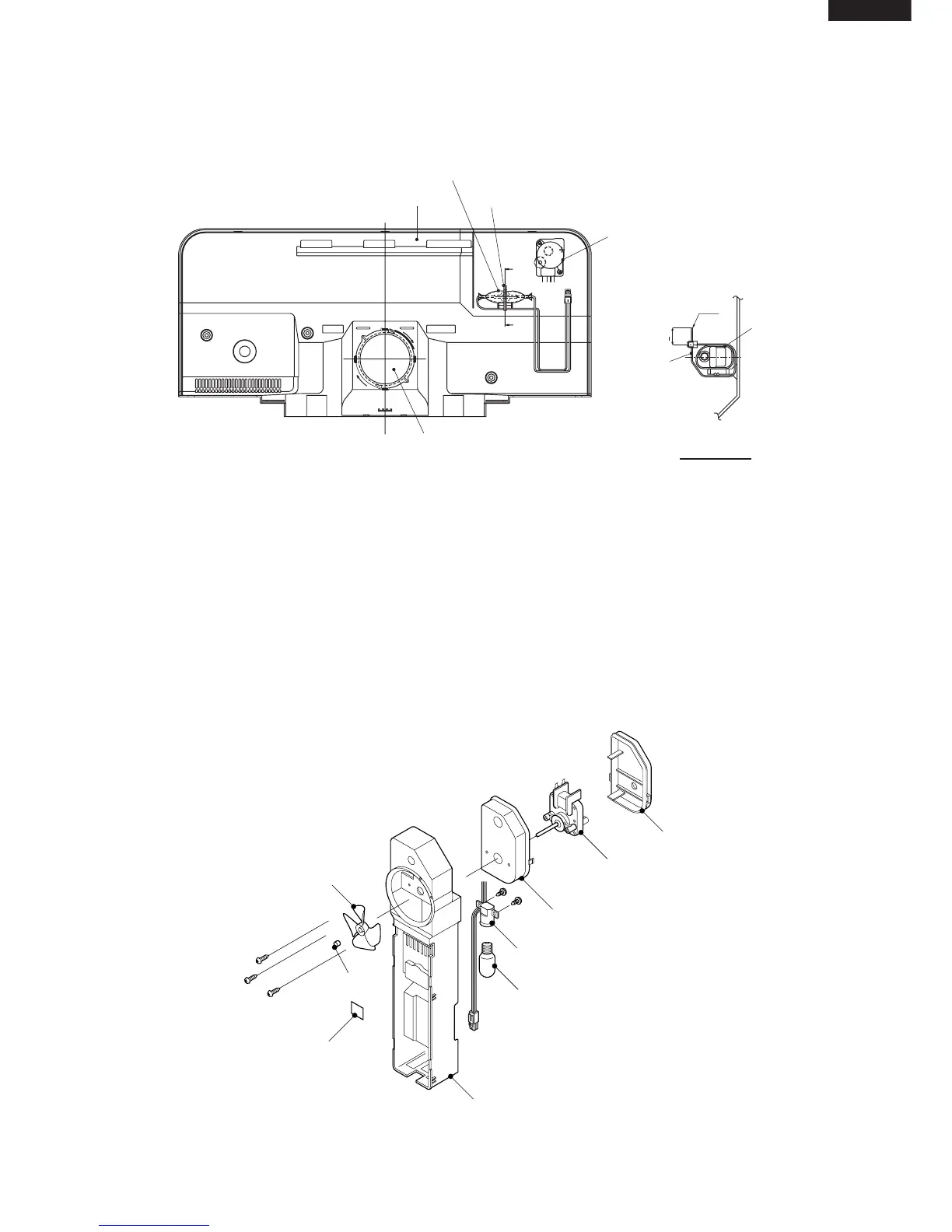

2. R LAMP BOX ASSEMBLY
Lamp socket (with lead wires for R-fan moto
r)
Lamp 15W
Warning label
R lamp box
Propeller fan 80
R-fan motor
R fan motor holder A
Fan clamp
R fan motor holder
B
Figure A-6
Figure A-5
10 5mm
+
Cut
R-C box cover
Nylon band
R fan thermo ass’y
Fan cover
Defrost timer
R fan thermo.
ass’y
Nylon band
SEC. G-G
G
G
(4) Fixing of Defrost timer, R fan thermo. ass'y cover to R-C box cover.
