Introduction

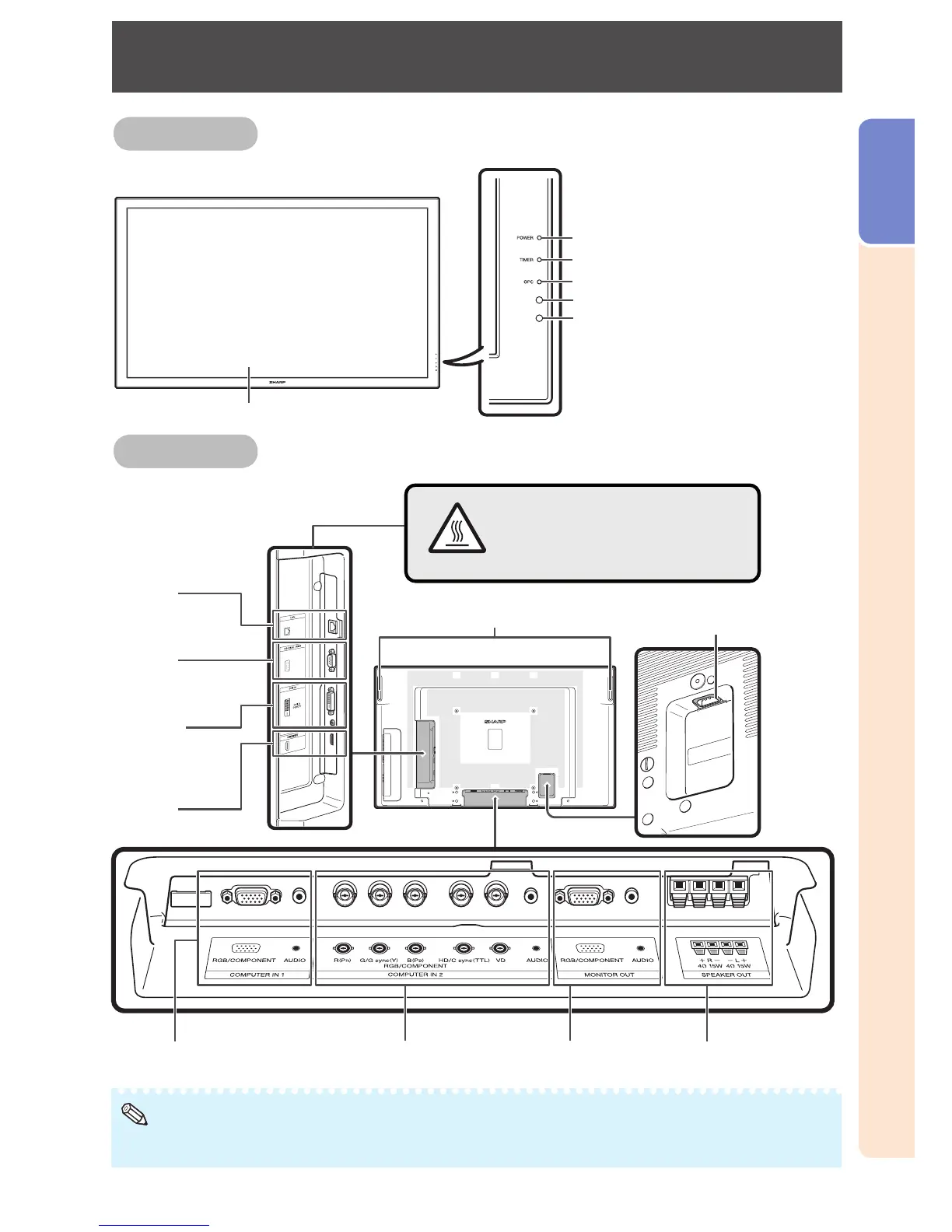

Part Names
Front view
LCD panel
POWER indicator (See page 22.)
TIMER indicator (See page 42.)
OPC indicator (See page 32.)
OPC sensor (See page 32.)
Remote control sensor (See page 21.)
Rear view
CAUTION
The area surrounding these terminals
gets hot. Exercise due caution when
handling. (TL-M4600 only)
HOT
LAN
terminal
(See page 19.)
RS-232C
terminal
(See page 19.)
HDMI
terminal
(See page 16.)
DVI IN
terminals
(See pages
15, 16 and 17.)
AC input terminal
(See page 20.)
COMPUTER IN 1 terminals
(
See pages 15, 16 and 17.
)
COMPUTER IN 2 terminals
(
See pages 15, 16 and 17.
)
MONITOR OUT terminals
(See page 17.)
SPEAKER OUT terminals
(See page
18
.)
Handles (Fixed type)
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The illustrations used throughout this manual are based on TL-M5200.
