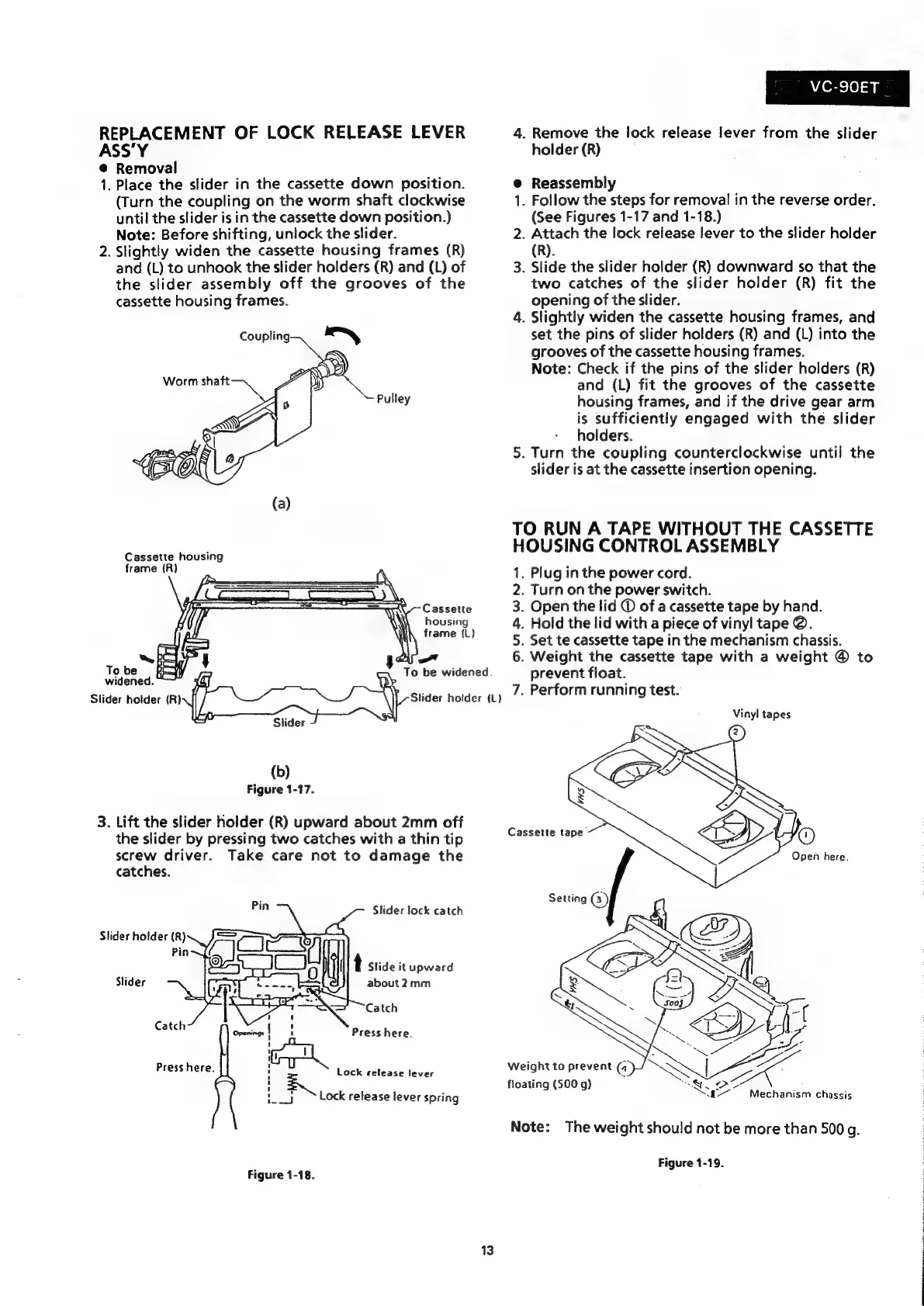

REPLACEMENT
OF
LOCK
RELEASE
LEVER
ASS'Y
@
Removal
1.
Place
the
slider
in
the
cassette
down
position.
(Turn
the
coupling
on
the
worm
shaft
clockwise
until
the
slider
is
in
the
cassette
down
position.)
Note:
Before
shifting,
unlock
the
slider.
2.
Slightly
widen
the
cassette
housing
frames
(R)
and
(L)
to
unhook
the
slider
holders
(R)
and
(L)
of
the
slider
assembly
off
the
grooves
of
the
cassette
housing
frames.
a
a
=,
Pulley
(a)
Cassette
housing
frame
(R)
housing
frame
(L)
\
\
\
2
“BEM
ye
Tobe
BOW
To
be
widened.
widened.
Slider
holder
(R)
Slider
holder
{L)
Slider
(b)
Figure
1-17.
3.
Lift
the
slider
holder
(R)
upward
about
2mm
off
the
slider
by
pressing
two
catches
with
a
thin
tip
screw
driver.
Take
care
not
to
damage
the
catches.
Slider
lock
catch
Slider
holder
(R)
Pin
Slide
it
upward
Slider
about
2mm
Catch
Catch
Press
here.
Lock
release
lever
z
--J
!
a]
!
Press
here.
i
H
'
'
1
Lock
release
lever
spring
Figure
1-18.
VC-S0ET
4.
Remove
the
lock
release
lever
from
the
slider
holder
(R)
@
Reassembly
.
Follow
the
steps
for
removal
in
the
reverse
order.
(See
Figures
1-17
and
1-18.)
2.
Attach
the
lock
release
lever
to
the
slider
holder
(R).
3.
Slide
the
slider
holder
(R)
downward
so
that
the
two
catches
of
the
slider
holder
(R)
fit
the
opening
of
the
slider.
4.
Slightly
widen
the
cassette
housing
frames,
and
set
the
pins
of
slider
holders
(R)
and
(L)
into
the
grooves
of
the
cassette
housing
frames.
Note:
Check
if
the
pins
of
the
slider
holders
(R)
and
(L)
fit
the
grooves
of
the
cassette
housing
frames,
and
if
the
drive
gear
arm
is
sufficiently
engaged
with
the
slider
holders.
5.
Turn
the
coupling
counterclockwise
until
the
slider
is
at
the
cassette
insertion
opening.
_
TO
RUN
A
TAPE
WITHOUT
THE
CASSETTE
HOUSING
CONTROL
ASSEMBLY
.
Plug
in
the
power
cord.
.
Turn
on
the
power
switch.
.
Open
the
lid
©
of
a
cassette
tape
by
hand.
.
Hold
the
lid
with
a
piece
of
vinyl
tape
@.
.
Set
te
cassette
tape
in
the
mechanism
chassis.
.
Weight
the
cassette
tape
with
a
weight
@
to
prevent
float.
7.
Perform
running
test.
Am
fwWwn
Vinyl
tapes
Weight
to
prevent
(a
floating
(500
g)
rs
ZO
¢
a
oa
"Mechanism
chassis
Note:
The
weight
should
not
be
more
than
500
g.
Figure
1-19.
