Sharp VC-90ET

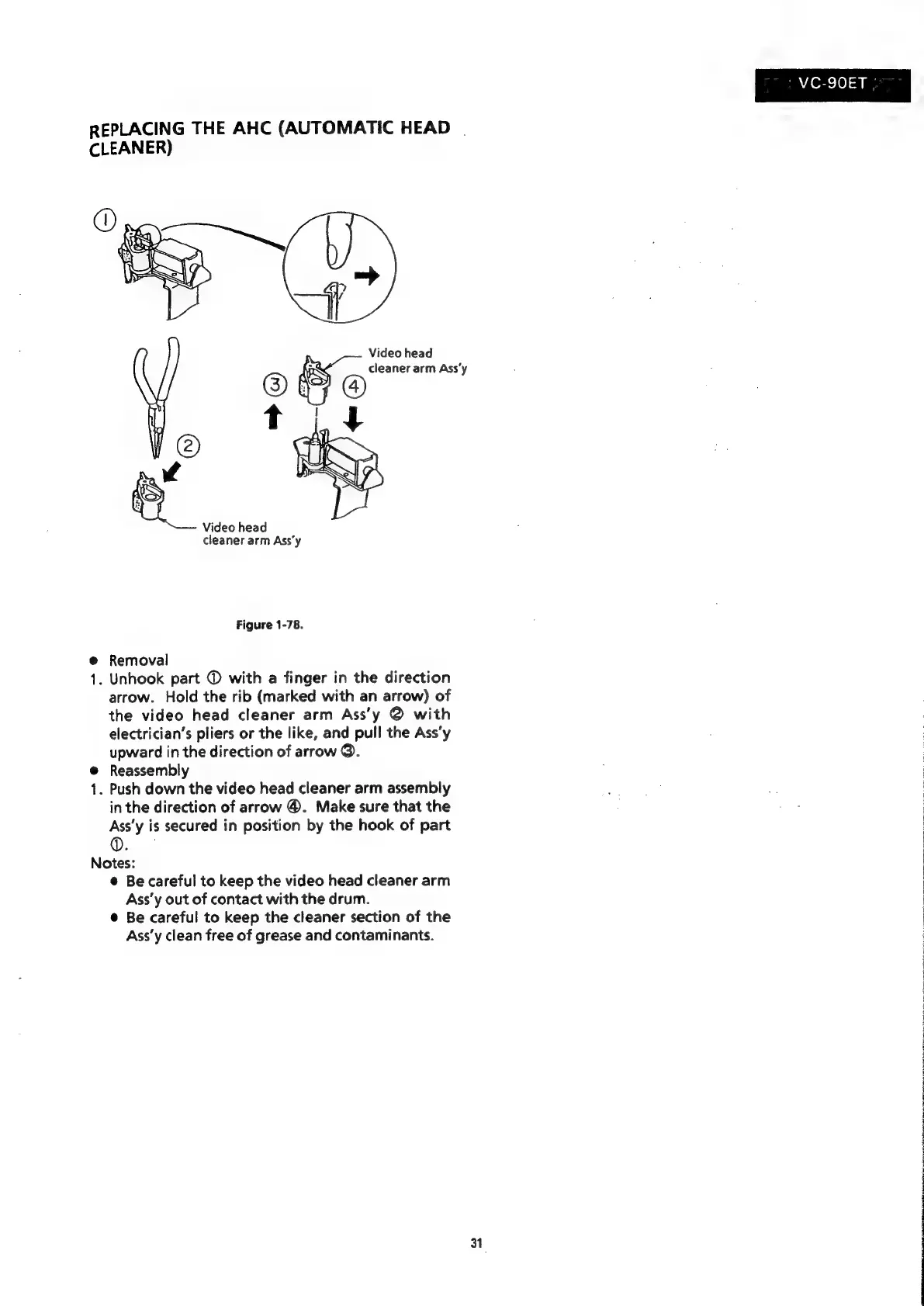

REPLACING THE AHC (AUTOMATIC HEAD |
CLEANER)
Video head
a cleaner arm Ass'y
Video head
cleaner arm Ass’y
Figure 1-78.
@ Removal
. Unhook part © with a finger in the direction
arrow. Hold the rib (marked with an arrow) of
the video head cleaner arm Ass’y @ with
electrician’s pliers or the like, and pull the Ass’y
upward in the direction of arrow @.
@ Reassembly
1. Push down the video head cleaner arm assembly
in the direction of arrow @. Make sure that the
Ass'y is secured in position by the hook of part
_
Notes:
@ Be careful to keep the video head cleaner arm
Ass’y out of contact with the drum.
@ Be careful to keep the cleaner section of the
Ass’y clean free of grease and contaminants.
