USING
YOUR
VCR
WITH
A
VIDEO
CAMERA

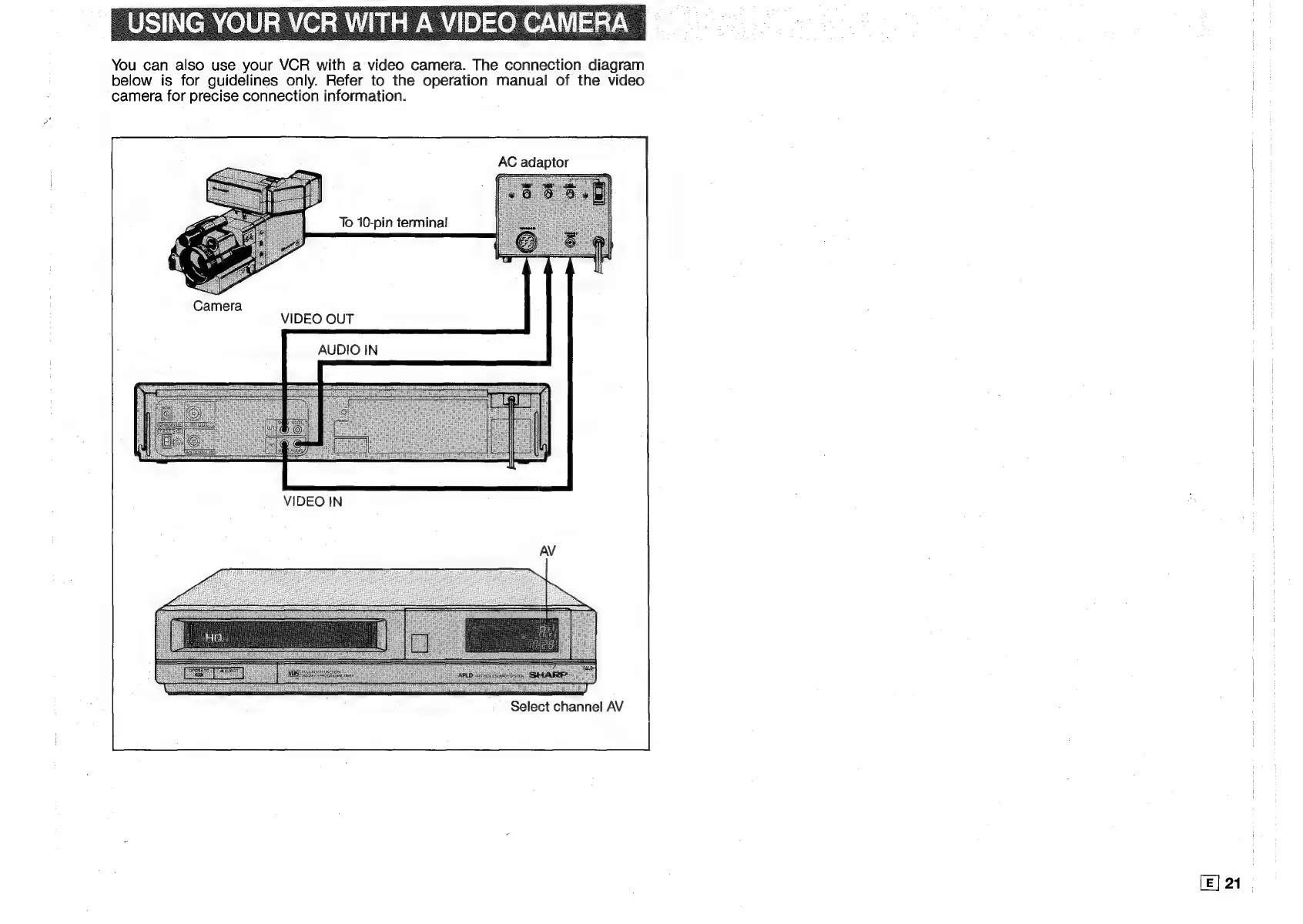

You can also use your VCR with a video camera. The connection diagram
below is for guidelines only. Refer to the operation manual of the video
camera for precise connection information.
AC adaptor
To 10-pin terminal
VIDEO OUT
VIDEO IN
Select channel AV
[Ee] 24
