26
VC-GH61GM/SM,GH611GM
VC-GH60SM,GH600SM,GH601SM
VC-FH310GM/SM

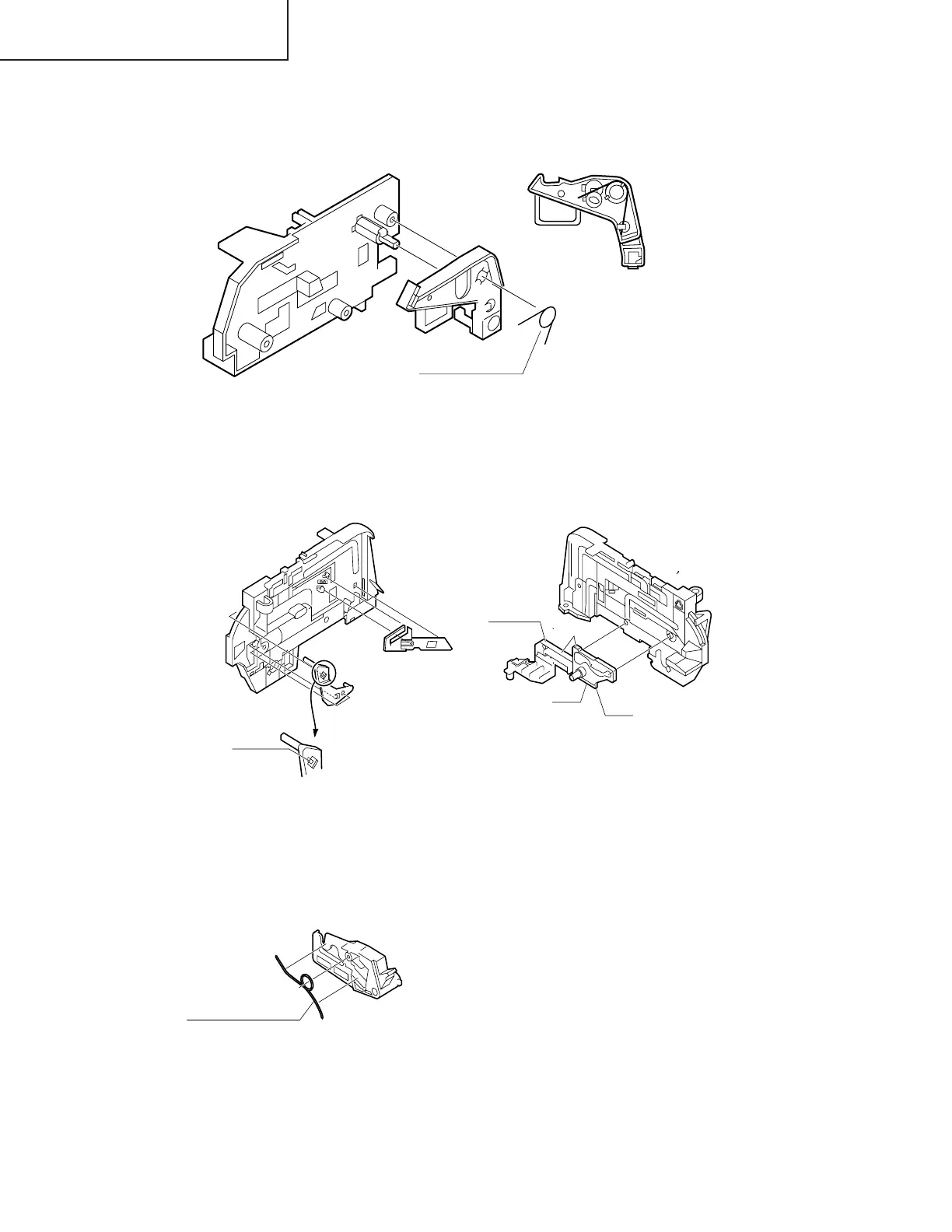

4-25 ASSEMBLY OF CASSETTE HOUSING
1. Proof lever Proof lever spring and Holder R
Figure 4-41.
MSPRD0215AJFJ
*Proof lever spring fixing direction designated.
Take care that
not to damage
this parts.
out side
out side
inside
bottom
top
MSPRD0212AJFJ
Figure 4-42.
Figure 4-43.
2. 0pen lever, Sensor Plate and Frame R
3. Spring to Drive Arm R
To Next Page
