6-2
VL-H870U
VL-H875U
VL-H890U
VL-H870U
VL-H875U
VL-H890U
< Adjusting the video/LCD section >
• Measuring instruments:
*Color monitor TV set *AC adapter *AV output cable (accessory)
*Digital voltmeter *Oscilloscope *Video recording tape
*DC power supply *Frequency counter (For Y/C, audio and servo adjustments)
*Audio generator (CR oscillator) *Signal generator *DC cable (AC adapter accessory)
*Alignment tape (JiGWR5-5NSP) (NTSC pattern generator *Video extension cables
(JiGWR5-8NSE) LCG-401/401YC:Leader-made) *Vector scope
*Standard tape (JiGWR5-9NS)
L-CABINET
UNIT
INVERTER
VCR
UNIT
MECHA
UNIT
8
4
7
5
1
6
2
3
CAMERA
UNIT
LCD
UNIT

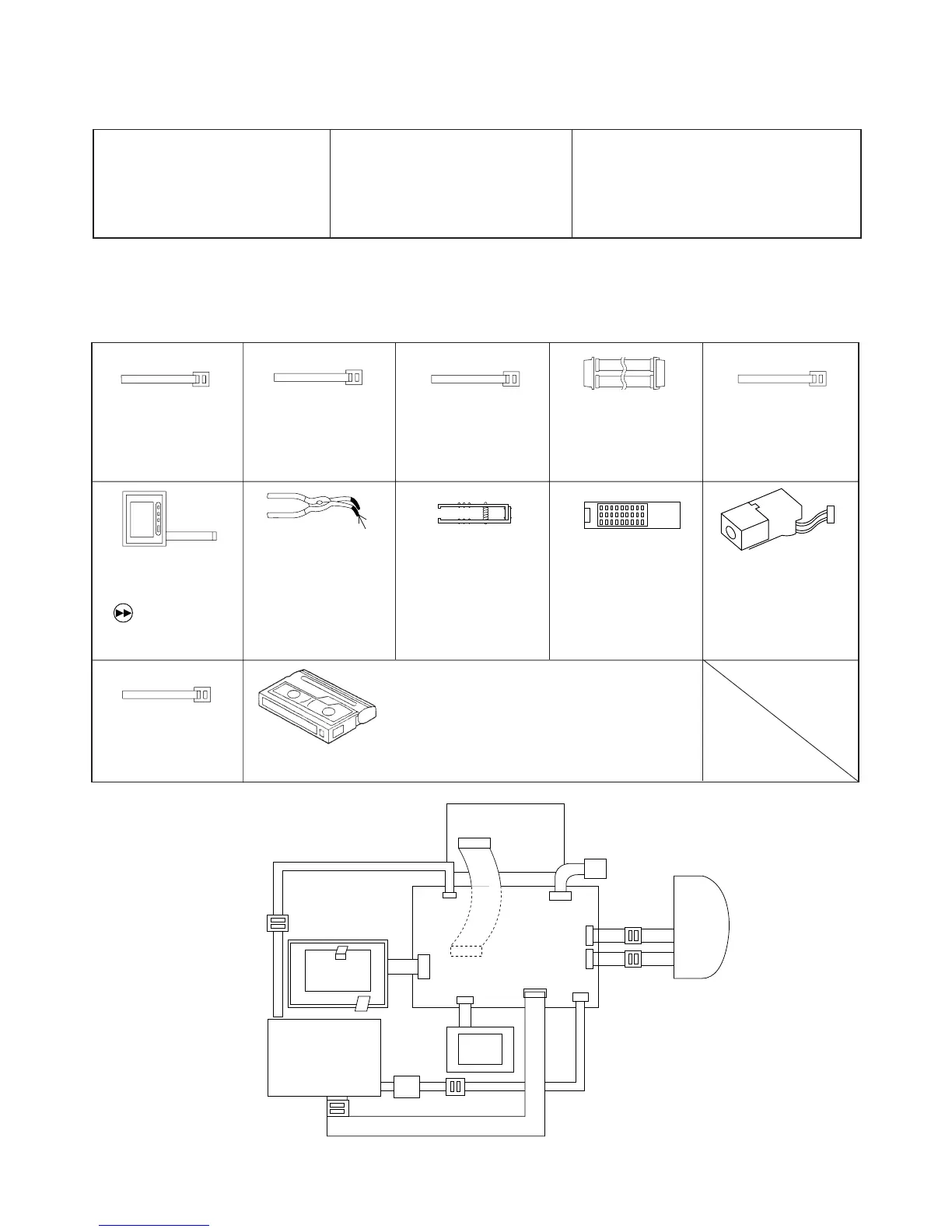

6-3-2. Servicing the VCR section Adjustment
Configuration
<Note: The entries of list> 1. Name 2. Part No. 3. Code
4. Note * Model, Uses Remarks
1. Extension Cable LCD~
VCR (24pin)
2. QCNW-1382TAZZ
3. BD
1. Extension Cable
Inverter~VCR (7pin
)
2. QCNW-1265TAZZ
3. AX
1. Extension Cable
Camera~VCR (18pin)
2. QCNW-1270TAZZ
3. AY
1. Extension Cable
Camera~VCR (19pin)
2. QCNW-1381TAZZ
3. AX
1. Extension Cable
MECHA~VCR (70pin)
2. QCNW-1534TAZZ
3. BS
1. Operation Unit
2.
QSW-Z0287TAZZ
3. AW
* " (FF) Button" func-
tions to as "DISPLAY-
button".
1. Connector fitting and
withdrawing extractor
1. Connector fitting and
withdrawing tweezers
2. 9EQPiNSET06GE
3. BR
1. Service remote control
2.
RRMCG0033TASA
3. BT
insulating sleeve
1. DC-IN Jack Unit
2.
QJAKZ0069TAZZ
3. AK
4. New
1. Extension Cable
TOUCH PANEL (6pin
)
2. QCNW-1267TAZZ
3. AX
12345
6 8
7
1. Alignment Tape
2. JiGWR5-5NSP (NTSC) .... Normal 8 TAPE (MONO)
JiGWR5-8NSE (NTSC) ...Hi8 TAPE (MONO)
* Y/C Audio Alignment
6-3-2-1. Typical connections
<Extension Cable etc.>
