44
VT-G14
VT-G21

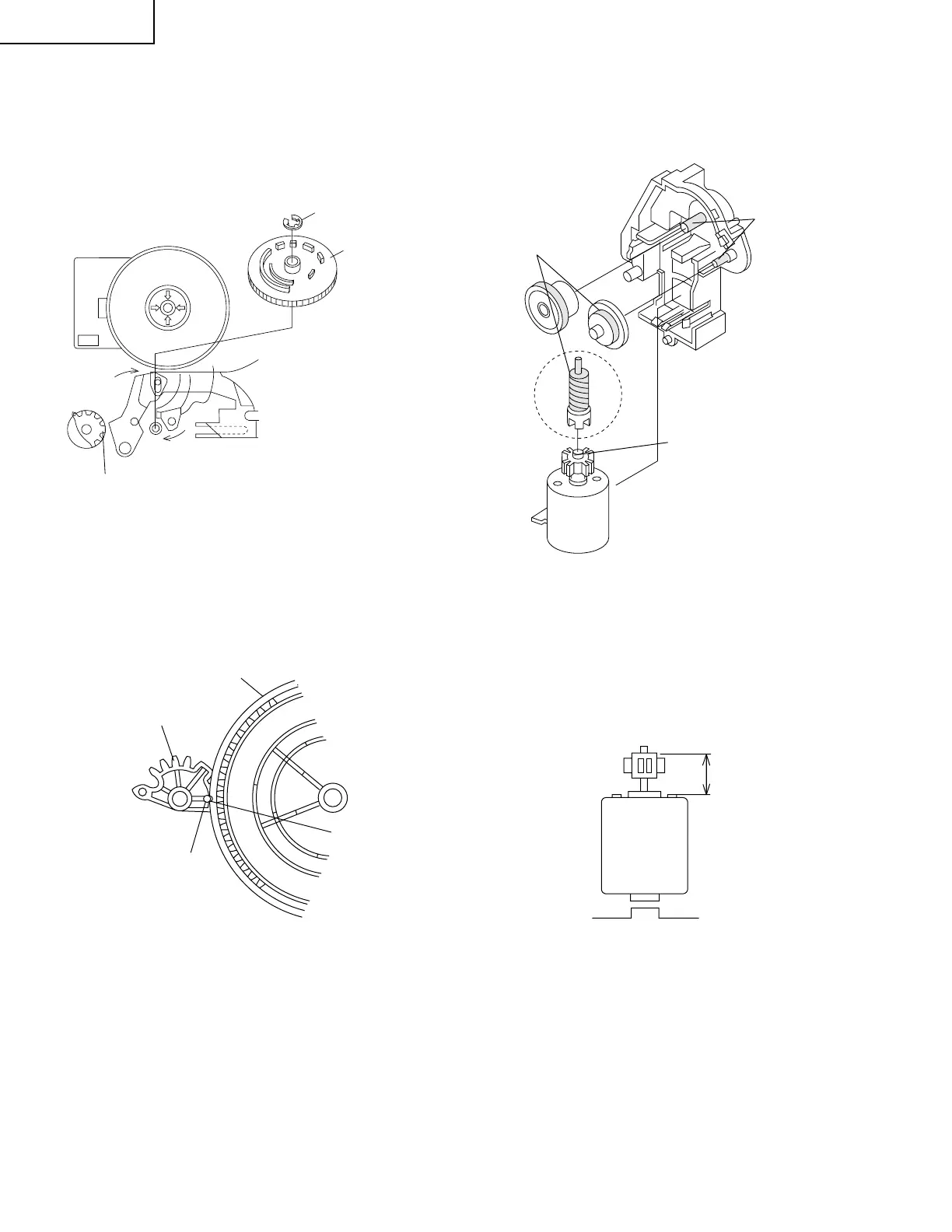

REPLACEMENT OF LOADING MOTOR
• Removal
Figure 1-46.
No grease
Figure 1-45.
+0.2
–0.2
Figure 1-44-2.
When installing the master cam,
align the casecon drive gear
round mark with the half-round
notch of master cam.
Figure 1-44-1.
Half-round notch
INSTALLING THE MASTER CAM (AT REAR
SIDE OF MECHANISM CHASSIS)
1. Make sure beforehand that the shifter is at the point
as shown below.
2. Place the master cam in the position as shown below.
E ring
(XRESJ30-06000)
Master cam
Fully turn
clockwise
Fully turn counterclockwise
Face the wide tooth side ward
Note:
See the figure below for the phase matching between
the master cam and the casecon drive gear.
3. Finally fix with the E ring.
Master cam
Casecon drive gear
Round mark
The loading motor pressing-in must be less than 14.7 N
(15 gf).
Adjust the distance between motor and pulley to 10.2
mm).
• Replacement
1. Remove the loading motor, and install the replace-
ment loading motor as shown below.
Apply grease
Apply grease
To Next Page
