9
VT-G14
VT-G21

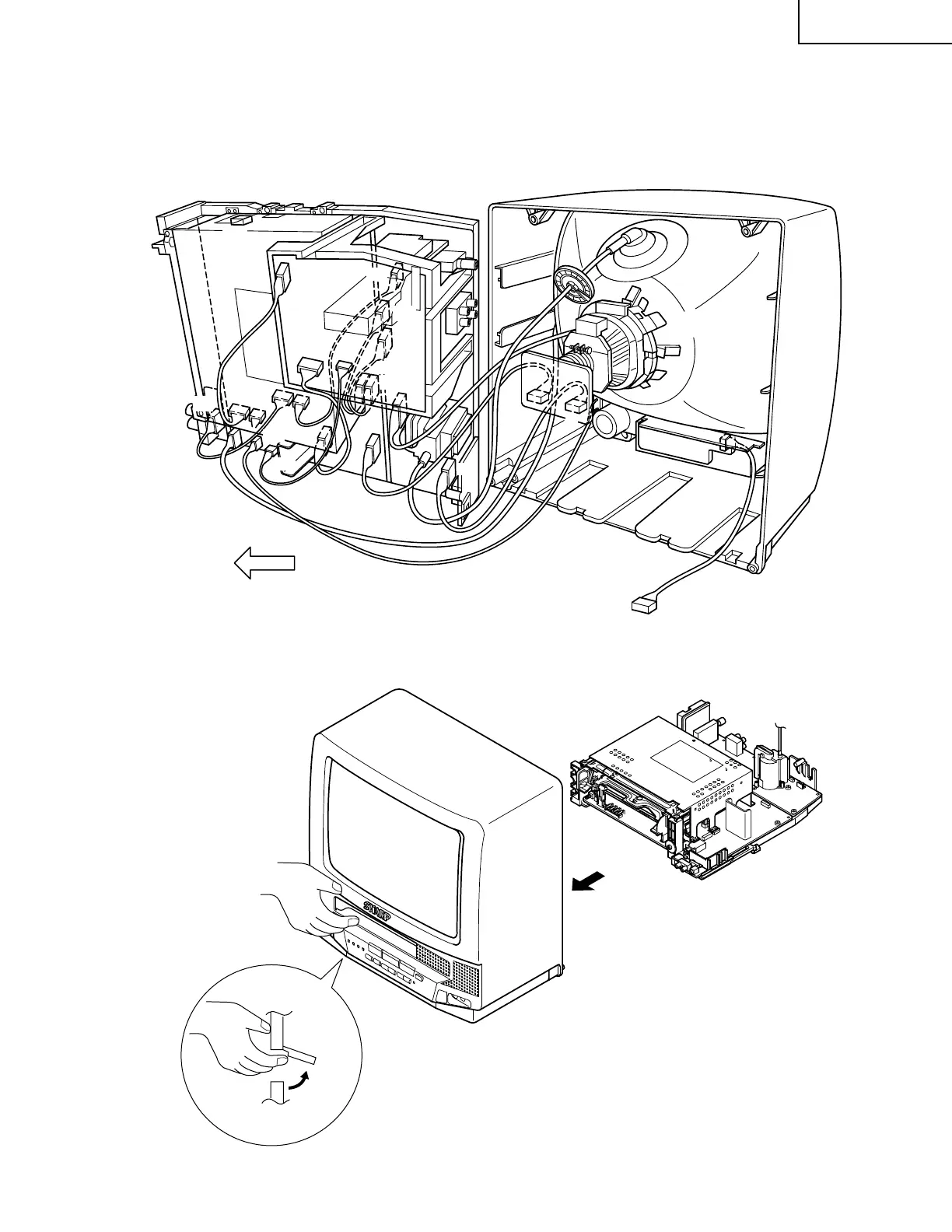

DISASSEMBLY AND REASSEMBLY (Continued)
For servicing any of the components inside, disconnect the lead dressing holder. Position the main PWB unit upright
as shown below and connect the leads for starting the services.
70~80°
Note: Fit the VCR unit the front cabinet with the front flap door tilted at 70~80°.
K
FRONT
F
G
B
B
AJ
AJ
AV
AM
AN
PA
PA
PB
PB
SP
AN
AM
AV
H
AO
AO
K
H
