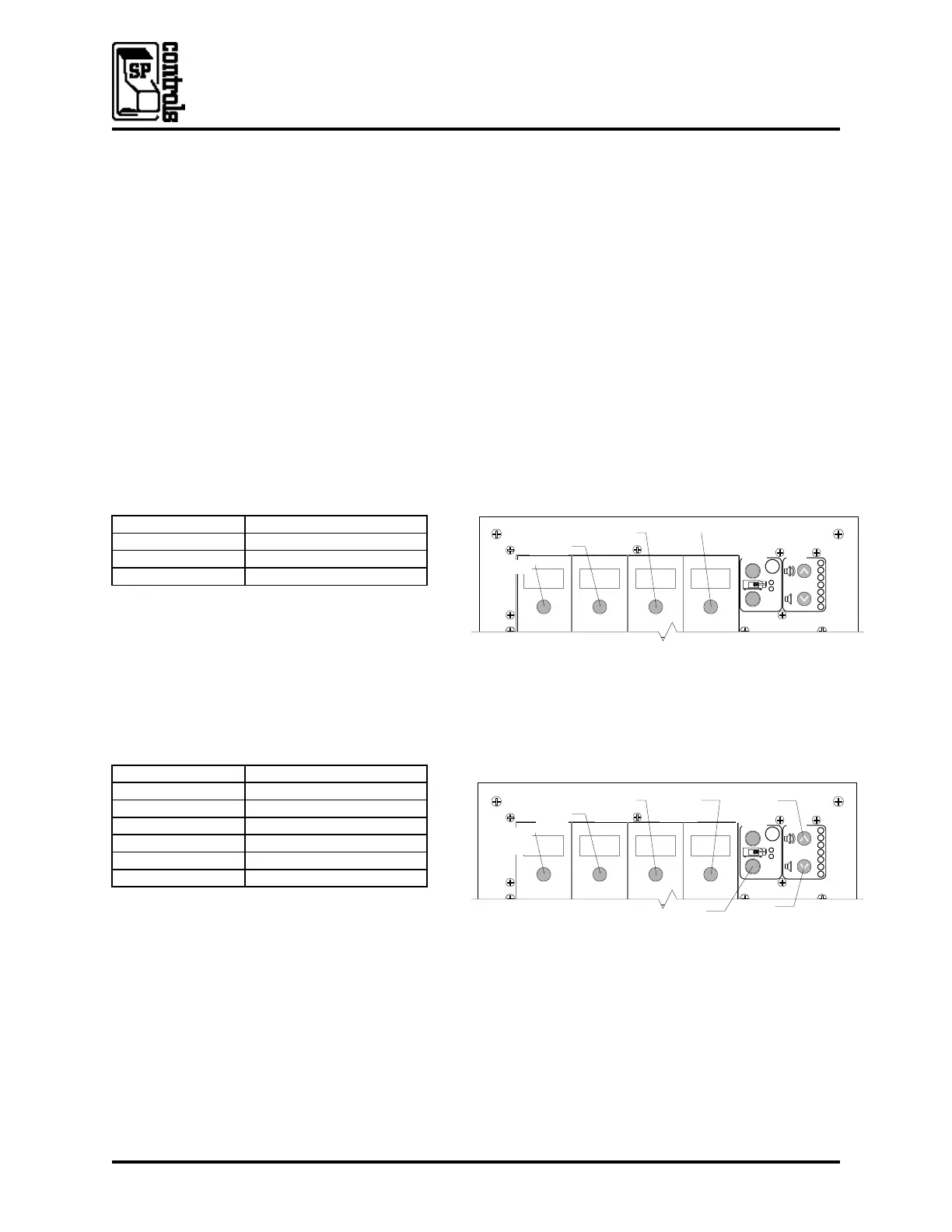

Projector Driver Application Note
Sharp XG-C55X
Revision A
DR-SHP26 – 3/17/04 SP Controls reserves the right to modify specifications without notice at any time.
This document describes the SmartPanel Projector Driver for the Sharp XG-C55X projector. For
information on configuring and using the Panel see the SmartPanel Configuration and Installation Guide.
Please read the SPECIAL CONTROL NOTE in the Control Wiring section of this document before
attempting control of the projector. This note describes how the Sharp’s Economy Mode impacts the
projector’s behavior.
I. PROJECTOR CONTROL
A. Volume and Power Control
Volume control on the Sharp is absolute. Absolute volume control is also possible with SP Controls’
option Audio Follow Video Preamplifer (SP3-AFVP+).
B. Input Selection Mapping
The following table specifies the factory-preset input mapping for this Driver. The Configuration Utility
can be used to customize these settings your installation.
Selection 1: VIDEO
Selection 2: S-VIDEO
Selection 3: RGB 1
Selection 4: RGB 2
Input choices available for the Sharp with this
Driver are VIDEO, S-VIDEO, RGB 1, and RGB 2.
C. Hidden Function Mapping
The following table specifies the factory preset hidden function mapping for this Driver. The
Configuration Utility can be used to customize these settings your installation.
Selection 1: BLACK SCREEN
Selection 2: ENTER
Selection 3: ADJUST LEFT
Selection 4: ADJUST RIGHT
Off: MENU
Volume Up: ADJUST UP
Volume Down: ADJUST DOWN
Hidden functions names are based on the Sharp remote and controls on top of the projector. Hidden
functions are accessed by pressing the indicated key while the holding the On key down.
ADJUST controls, ENTER and UNDO navigate through onscreen menus. UNDO is a “return to previous
menu” or “back” command. MENU can also be used as UNDO. The area zoomed with the ENLARGE
function can be moved using the ADJUST keys.
BLACK SCREEN is a toggle.
Projector
Ready
Warm-up
OFF
ON
Volume
VIDEO
S-VIDEO
RGB 1 RGB 2
Projector
Ready
Warm-up
OFF
ON
Volume
ADJUST
UP
ADJUST
DOWN
MENU
BLACK
SCREEN
ENTER
ADJUST
LEFT
ADJUST
RIGHT
