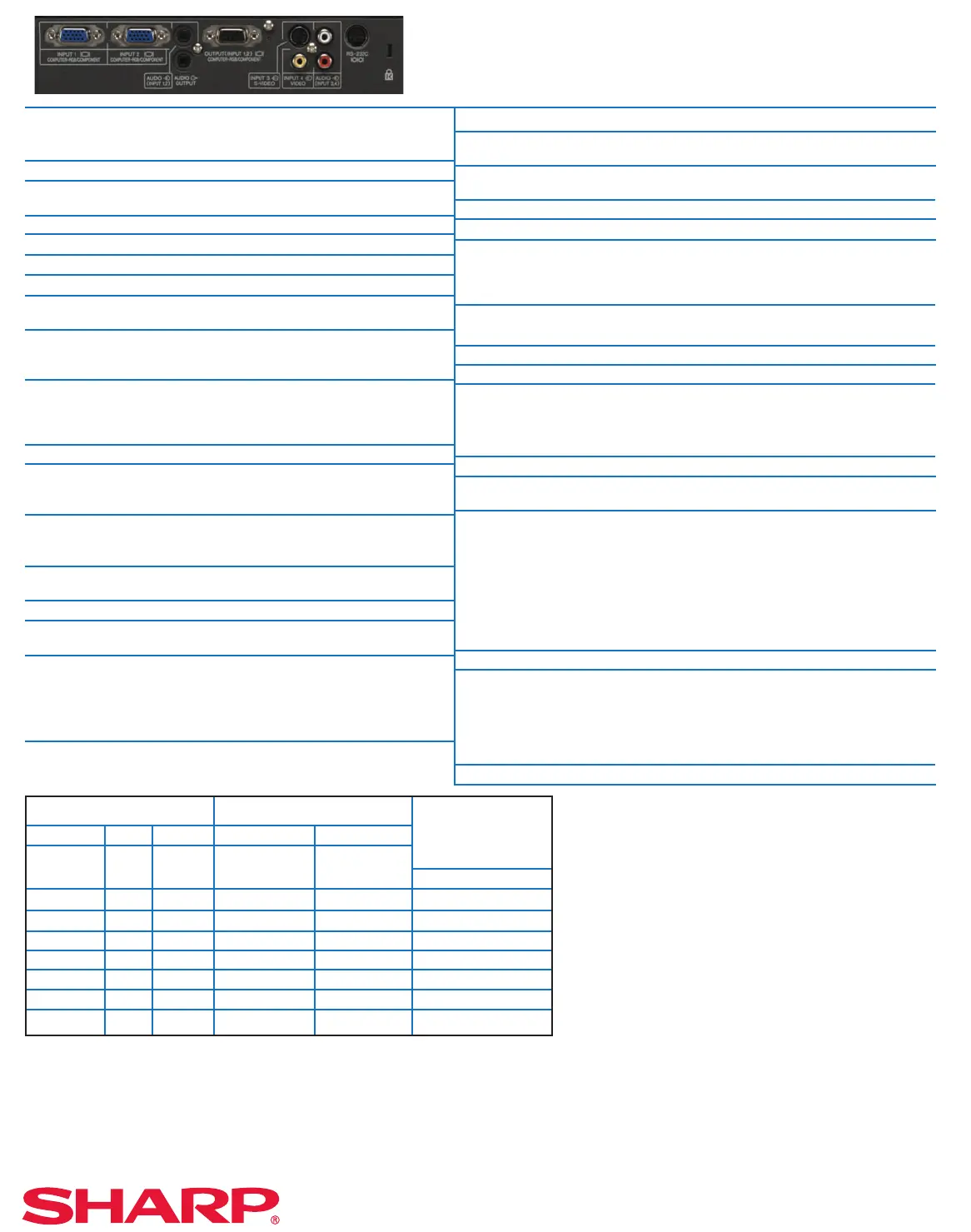

XG-MB65X / XG-MB55X
Conference / Classroom Multimedia Projectors
Design and specifications subject to change without notice.
© 2006 Sharp Electronics Corporation. Sharp is a registered trademark of Sharp Corporation. DLP™, the
DLP™ logo the DLP™ medallion and TrueVision™ are trademarks of Texas Instruments. All other trade-
marks are the property of their respective owners. LC-02-306 January 2006 Rev. 1.0
Note: There may be a maximum error of approximately ± 5.4% in the above values. Values with
a minus (-) sign indicate the distance from the lens center below the bottom of the image.
Picture (Screen) Size Projection distance [L] Distance from the lens
Diag. [
χ
] Width Height Minimum [L1] Maximum[L2] center to the bottom
of the image [H]
300" 240" 180" 34' 3" 39' 8" – 19 5/64"
200" 160" 120" 22' 10" 26' 5" – 12 23/32"
150" 120" 90" 17' 2" 19' 10" – 9 17/32"
100" 80" 60" 11' 5" 13' 3" – 6 23/64"
84" 67" 50" 9' 7" 11' 1" – 5 11/32"
72" 58" 43" 8' 3" 9' 6" – 4 37/64"
60" 48" 36" 6' 10" 7' 11" – 3 13/16"
40" 32" 24" 4' 7" 5' 3" – 2 35/64"
Screen Size and Projection Distance - NORMAL Mode (4:3)
Included Accessories: Wireless Remote Control; two "AA"
batteries; 6' AC Power Cord; 10' RGB signal cable;
attached lens cap, projector operation manual;
RS-232C Control Adapter
Optional Accessories: AN-XRCM30 Ceiling Mounting Bracket;
AN-EP101B: Extension Tube for Ceiling Mount; AN-JT200:
Angle-Mount joint for Ceiling Mount; AN-CMCSS16: 16"
security cable system for use with ceiling mount;
AN-CMCSS46: 46" security cable system for use with ceiling
mount and extension tube; AN-C3CP2: Component Video cable
(3-RCA to 15-pin D-sub, 10'); AN-A1RS: RS-232C
adapter; AN-C10RS RS-232C Serial Control Cable (32' 10");
AN-MR2 Remote IR Receiver (for forward/back presentation
control); AN-C3BN 5-BNC to 15-pin D-sub cable (10');
AN-LS1 Ethernet to RS-232C adapter, AN-C500SB light-duty
storage bag; AN-C500WCC hard-shell wheeled storage bag;
AN-C500SC "ATA" storage case.
*Consult the warranty statement available in the owners manual
at www.SharpLCD.com
Native Resolution / Resizing XGA (1024 x 768) Native Resolution
up through SXGA+ (1400 x 1050)
with Intelligent ImageACE Resizing
TV Lines 600 TV Lines (DTV 720P input)
Device Type Single 0.55" DDR DLP™ 12º with 3x Speed,
4 Segment Enhanced White Color Wheel
Cabinet Color Dark Metallic
H & V Frequency fH 15-70 kHz / fV 45-85 Hz
Dot Clock 12-108 MHz
Compatibility PC, Mac, Workstation
Video System NTSC 3.58, 4.43 / PAL, 60, M,
N/SECAM
DTV / HDTV Compatibility including 480I, 480P,
540P, 576I, 576P, 720P, 1035I,
1080I
Brightness
XG-MB65X: 3000 ANSI lumens (2400 A.L. in low
power "eco & quiet" mode); XG-MB55X: 2500 ANSI
lumens (2180 A.L. in Low Power "eco & quiet"
mode). 85% CCR (Center-to-Corner Ratio).
Contrast Ratio 2000:1
Lens Type
1:1.15x Manual Zoom and Focus, F2.4-2.6, Throw
Ratio = 1.75-2.0. XG-MB55X: f = 19.0-21.9mm;
XG-MB65X: f = 18.7-21.5mm
Optical System Condenser Lens Optical System
(provides higher image uniformity and
contrast, without "ghosting")
Aspect Ratio: Native 4:3 (with "image shift" for
16:9 software)
Screen Size (Min / Max) 40" (diagonal) up to 300" (diagonal)
Projection Distance (for
100" Diagonal Screen) 11.5' - 13.3'
IR Wireless Remote Control Yes - with on-screen break timer and
image "freeze" function. Also includes
forward/back presentation control
when used with optional AN-MR2 remote
IR receiver. [38 kHz IR carrier frequency.]
Built-In Audio System 2.0 Watts Monaural
Lamp Module
XG-MB55X: AN-XR20LP or AN-XR20LP/1 (275W SHP, user replaceable)
XG-MB65X: AN-XR20LP or AN-XR20LP/1 (300W SHP, user replaceable)
Estimated Lamp Life XG-MB55X: 2,000 hours / 3,000 hours
(standard/eco) XG-MB65X: 1,500 hours / 3,000 hours
Fan Noise (standard/eco)
XG-MB55X: 33dB/30dB; XG-MB65X: 37dB/30dB
Power Source XG-MB55X: 100 - 240V, 3.6A; XG-MB65X: 110 - 240V, 3.6A
Power Consumption (110V) XG-MB55X: 350W in "bright" lamp setting and "high" fan mode; 305W
in"eco & quiet" lamp setting & "normal" fan mode. Standby mode: 4W
XG-MB65X: 385W in "bright" lamp setting and "high" fan mode; 308W
in"eco & quiet" lamp setting & "normal" fan mode. Standby mode: 4.7W
Heat Dissipation (110V) XG-MB55X: 1,315 BTU/hour / 1,145 BTU/hour
(lamp setting "bright" / "eco/quiet")
XG-MB65X: 1,450 BTU/hour / 1,160 BTU/hour
Safety Approval UL, FCC Class B
Operating Temperature 41º F to 95-deg F (+5º C to +35º C)
Storage Temperature -4 º F to 140º F (-20º C to +60º C)
Dimensions (w x h x d) 12 13/32" x 4 19/64" x 11 1/32" (main
body only) 12 13/32" x 4 47/64" x 11 37/64"
(includes adjustment foot and projecting parts)
Weight 8.6 lbs.
Limited Warranty*
2 Years parts/labor including 2-years of Sharp "ER"
24-hour turnaround Express Repair. 90-day lamp warranty.
Inputs/Outputs 2 - RGB/Component Input (15-pin HD);
1 - Composite Video Input (RCA pin type);
1 - S-Video Input (4-pin DIN);
1 - PC/Component Stereo Audio Input
(3.5mm mini jack); 1 - "Video" Audio Input
(1-pair RCA pin-type); 1 - RGB Loop-through
Output (15-pin HD); 1 - Stereo "VAO" Variable
Audio Line Output (3.5mm mini jack);
1 - RS-232C (9-pin mini DIN).
LAN Connectivity
Utilize Optional AN-LS1 Ethernet to RS-232C interface
Key Functions Auto Synchronization; Auto Vertical Digital Keystone
Correction; I/P conversion and 3/2 pull down;
3-step bright-boost; color temperature adjustment;
sRGB; Advanced Picture Mode; OSD (on-screen
display) Help; set-up guide; quick start; menu
selectable for tabletop or ceiling-mount operation.
Control Systems Compatible with Crestron, AMX, Extron, Bitlogix
SHARP ELECTRONICS CORPORATION
Information Systems Group / LCD Products Division
Sharp Plaza, Mahwah, N.J. 07430-1123
1-866-4VISUAL (1-866-484-7825)
www.SharpLCD.com
email: ProLCD@SharpUSA.com
