XG-MB67X
4 – 1
XG-MB67X
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

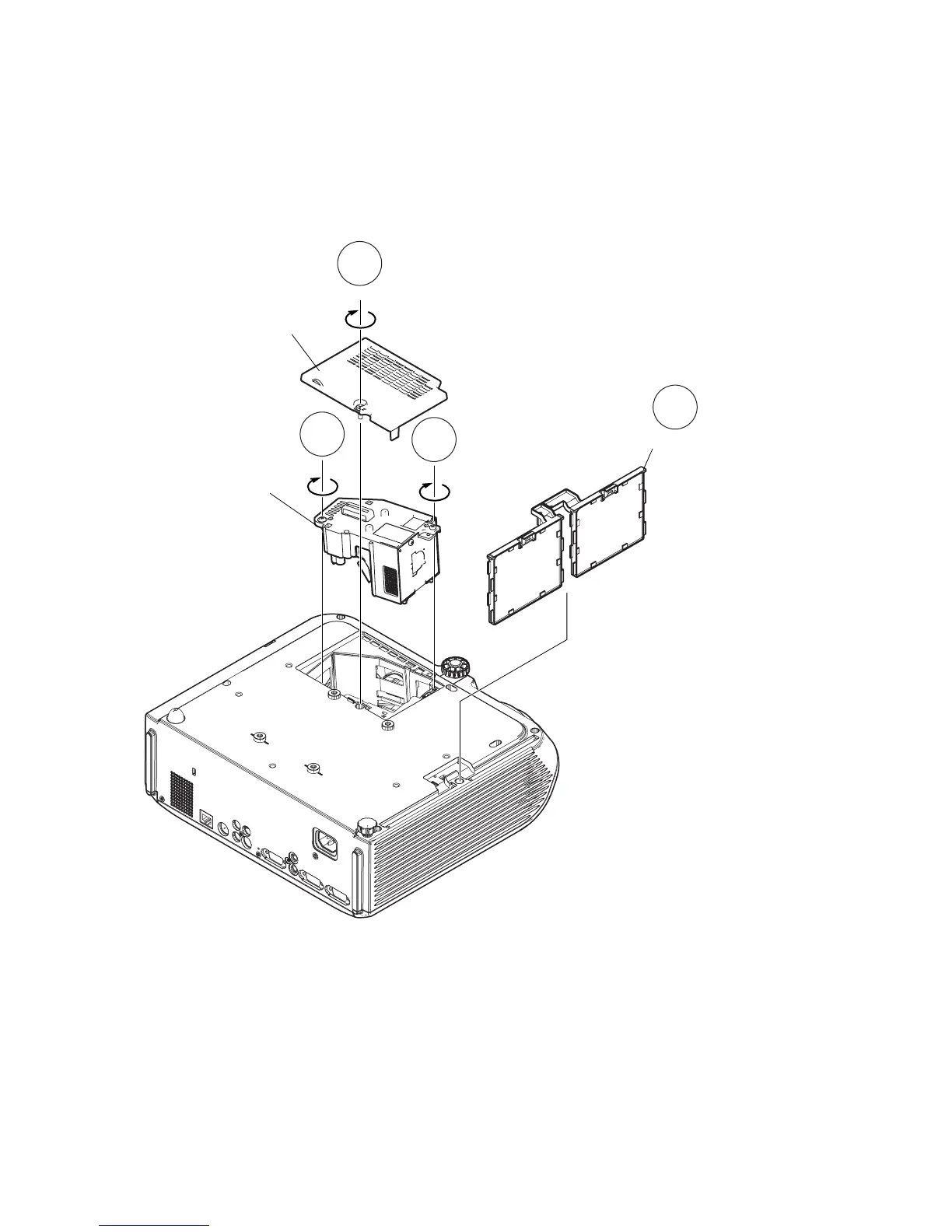

1. Removing the lamp door and the lamp unit
1. Loosen the lamp door fixing screw. Lift off the lamp door.
2. Remove 2 lamp unit fixing screws to detach the lamp unit.
3. Detach the filters.
1-1
1-2
1-2
Lamp Door
Lamp Unit
1-3
Filters
