Sharp XG-PH70X Setup Manual

-11

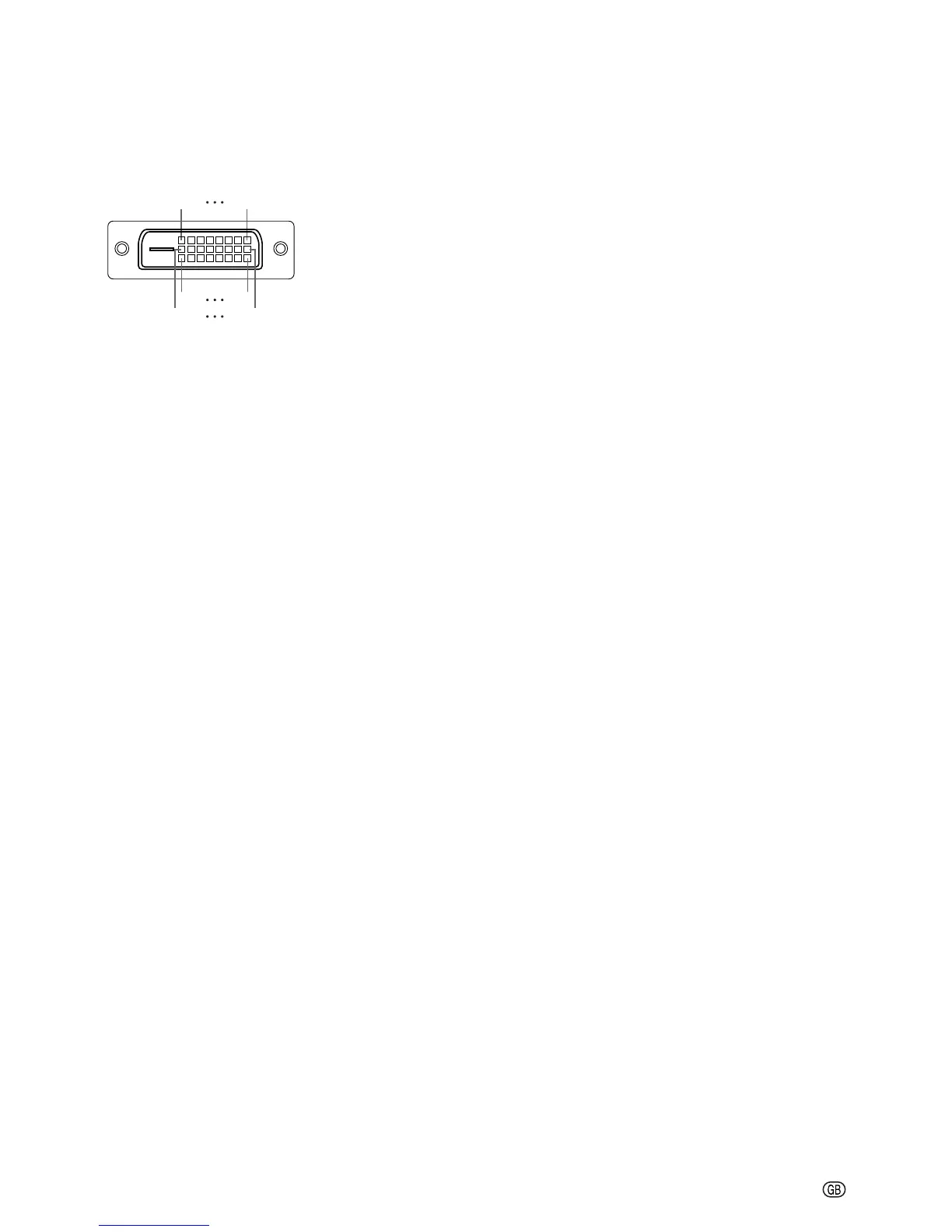

Connecting Pin Assignments
1724
1
9
16
8
Pin No. Signal
1T.M.D.S. Data 2–
2T.M.D.S. Data 2+
3T.M.D.S. Data 2 Shield
4 Not connected
5 Not connected
6 DDC Clock
7 DDC Data
8 Not connected
9T.M.D.S. Data 1–
10 T.M.D.S. Data 1+
11 T.M.D.S. Data 1 Shield
12 Not connected
13 Not connected
14 +5 V Power
15 Ground
16 Hot Plug Detect
DVI digital Terminal (INPUT 3)
Pin No. Signal
17 T.M.D.S. Data 0–
18 T.M.D.S. Data 0+
19 T.M.D.S. Data 0 Shield
20 Not connected
21 Not connected
22 T.M.D.S. Clock Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock–

Sharp XG-PH70X Specifications

General

Brand	Sharp
Model	XG-PH70X
Category	Projector
Language	English
