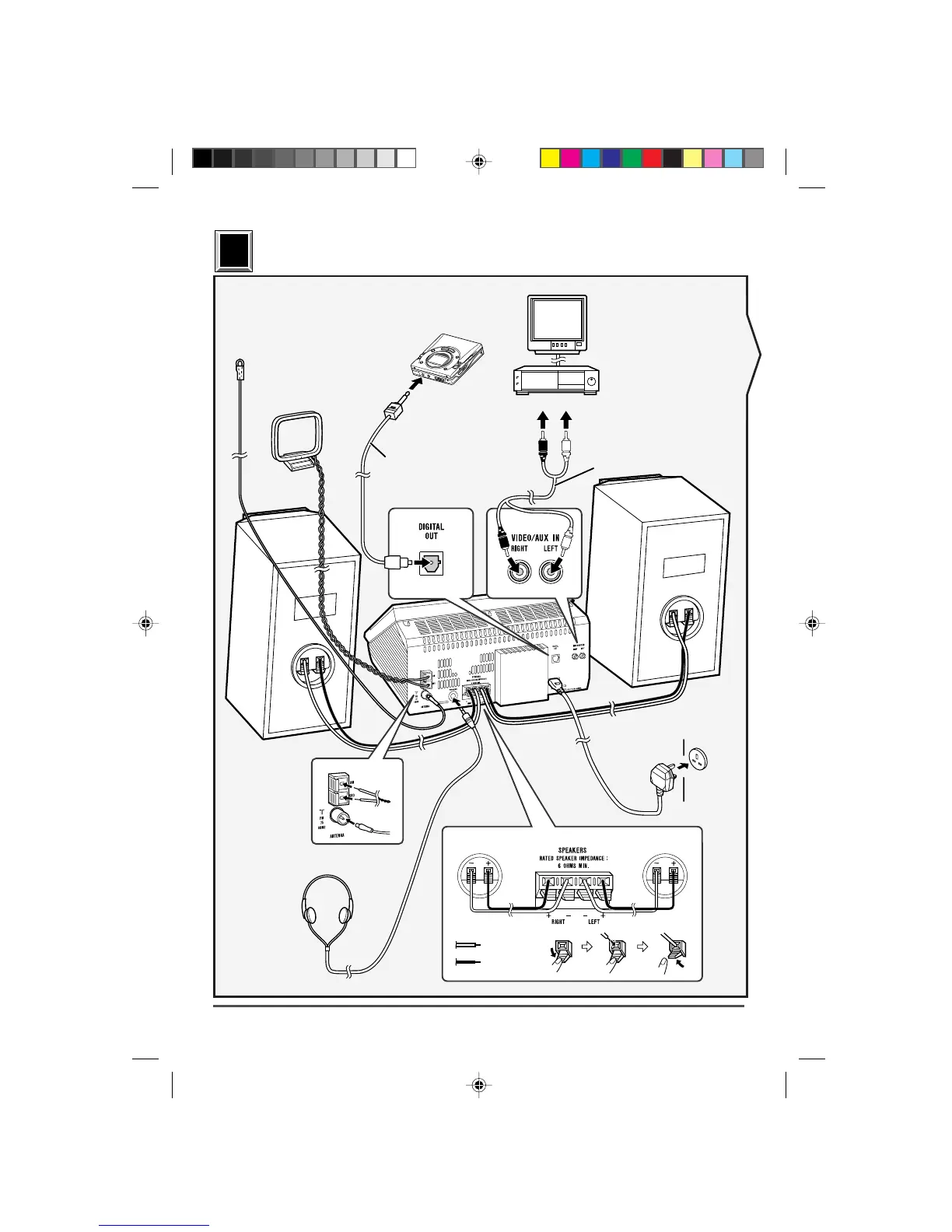

System Connections
3
3
Right speaker
Left
speaker
Connection cable
for digital recording
(not supplied)
MD recorder
To the optical line
input socket
Wall socket
(AC 230 V, 50 Hz)
To the line
output sockets
RCA lead
(not supplied)
FM aerial
AM loop aerial
VCR, DVD, etc.
TV
Right speaker
Left speaker
Black
White line
(CD only)
Headphones
