1. The Basics
1A. Connections and Video Settings
When installing your HDDSR, 1 direct coax line is required to connect to your satellite dish or multi-
switch. If you have an HDPVR, 2 direct coax lines are required. The HDPVR will not function if only 1
line is connected. If you would like us to take care of the installation, call Customer Service or visit
shawdirect.ca/contactus – we’re here 24/7 to discuss available options and help you book an
appointment.
If you are unsure of how to connect your satellite receiver to your TV or home theatre system, please
refer to the corresponding product manual or the directions that came with your satellite receiver.
Cable Types
Note that the following cable types must be used to provide high definition (HD) picture:

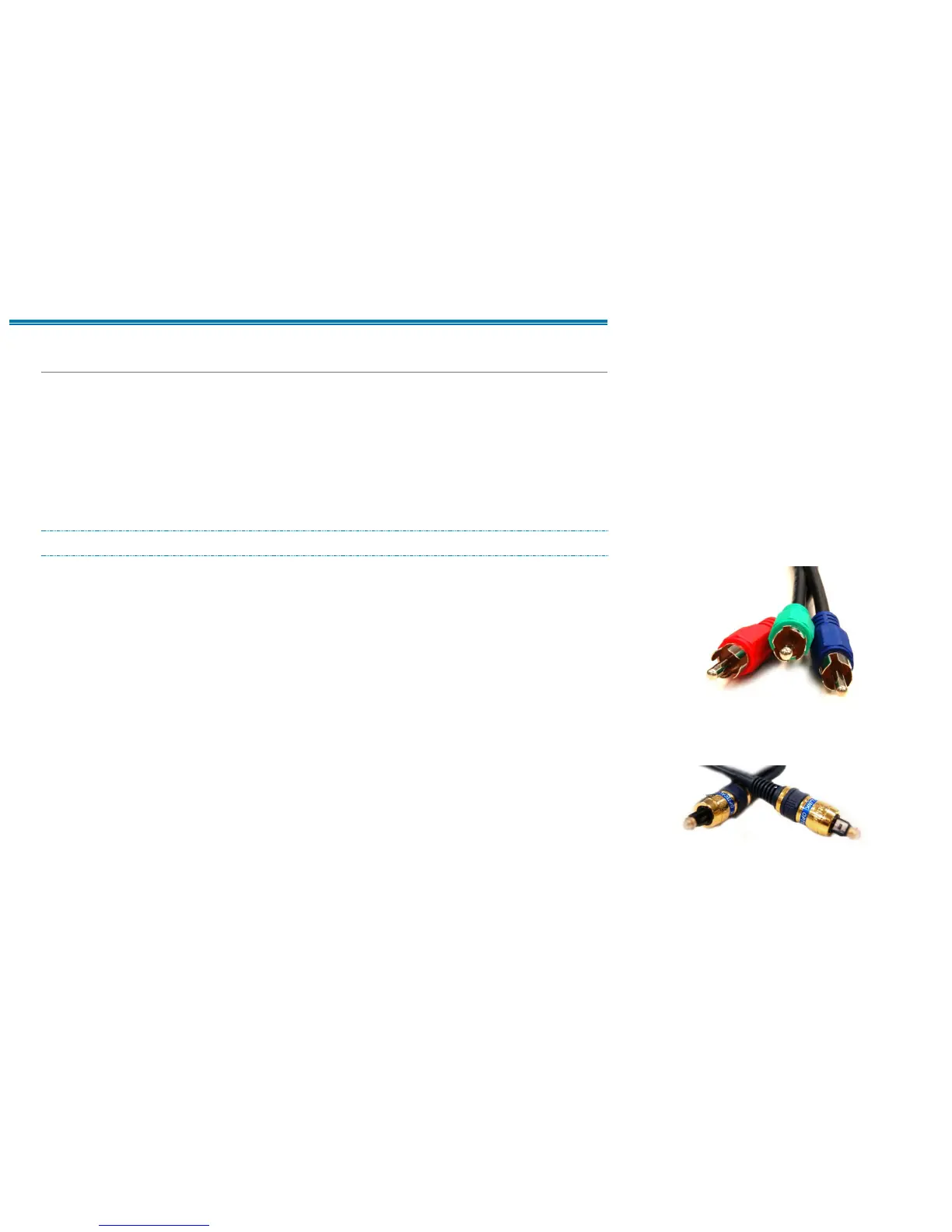

• Component: Look for three connectors on each end, coloured green, blue, and red. This cable is
pictured at right and does not carry sound.
• HDMI: This cable carries both video and sound. It has a single identical connector on both
ends.
The following cable types will provide Dolby Digital Plus and 5.1 Surround Sound when connected to a
capable home theatre receiver:
• Optical: This thin cable has a small square connector at each end, as pictured at right
• HDMI: If supported by your home theatre receiver, you can use a single HDMI cable to connect
your receiver to your home theatre system, and another HDMI cable to connect the home
theatre system to the TV. Both video and sound are carried in the cable.
For the best television experience, it is recommended that you connect your HD receiver with one of the
above video and audio connections. Component video and Optical audio are not available on the HDDSR
600.
