Step 2: Install handlebar onto stem as shown in the assembly video for the Shengmilo MX03 in the
COMMUNITY>>Video>>MX03 ASSEMBLY Video
at www.shengmilo-bikes.com.
Place the handlebar on the stem correctly. Trace the front brake cable directly up
A. from the front brake caliper to the left handlebar and ensure the cables and wires are not
twisted.
B. Locate the assembly tool in the accessory box.
Ensure the correct four bolts are used to install the handlebar faceplate.
The handlebar faceplate bolts use a 4 mm Allen wrench.
C. Center the handlebar and tighten the four stem faceplate bolts evenly and part way.
D. Adjust the handlebar so the grips are approximately parallel to the ground when the front
wheel is installed.
E. Secure to the recommended torque value. Once adjusted properly, use a torque wrench

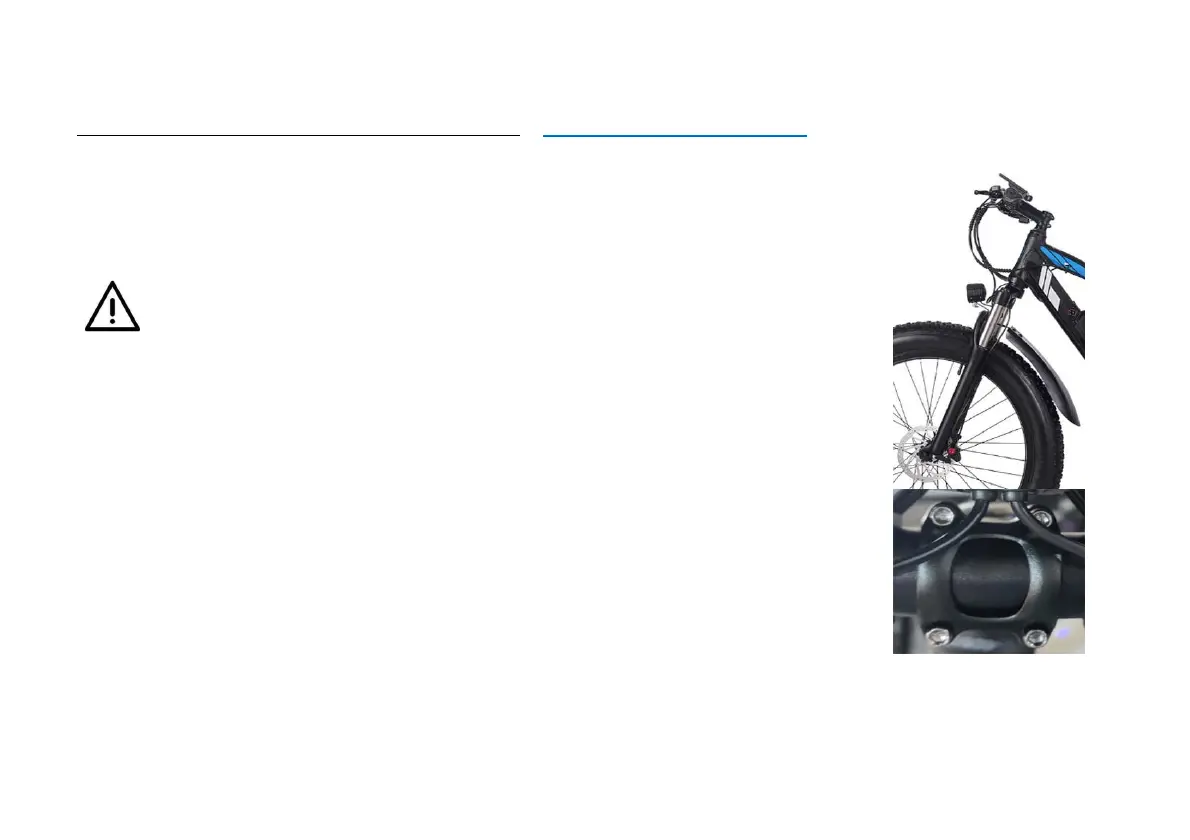

with a 4 mm Allen bit to evenly tighten the four stem faceplate bolts (shown at right) to the
recommended torque value, 10 Nm.
Get help from a bike fitting professional for safety and optimal fit and bike ergonomics. Consult a
certified, reputable, and local bike fitting specialist for assistance properly fitting
the bike to a rider.
