Step 5 : After connecting the front wheel motor cable, use a cable tie to secure the cable to the front fork, and use scissors to shorten the
cable tie..

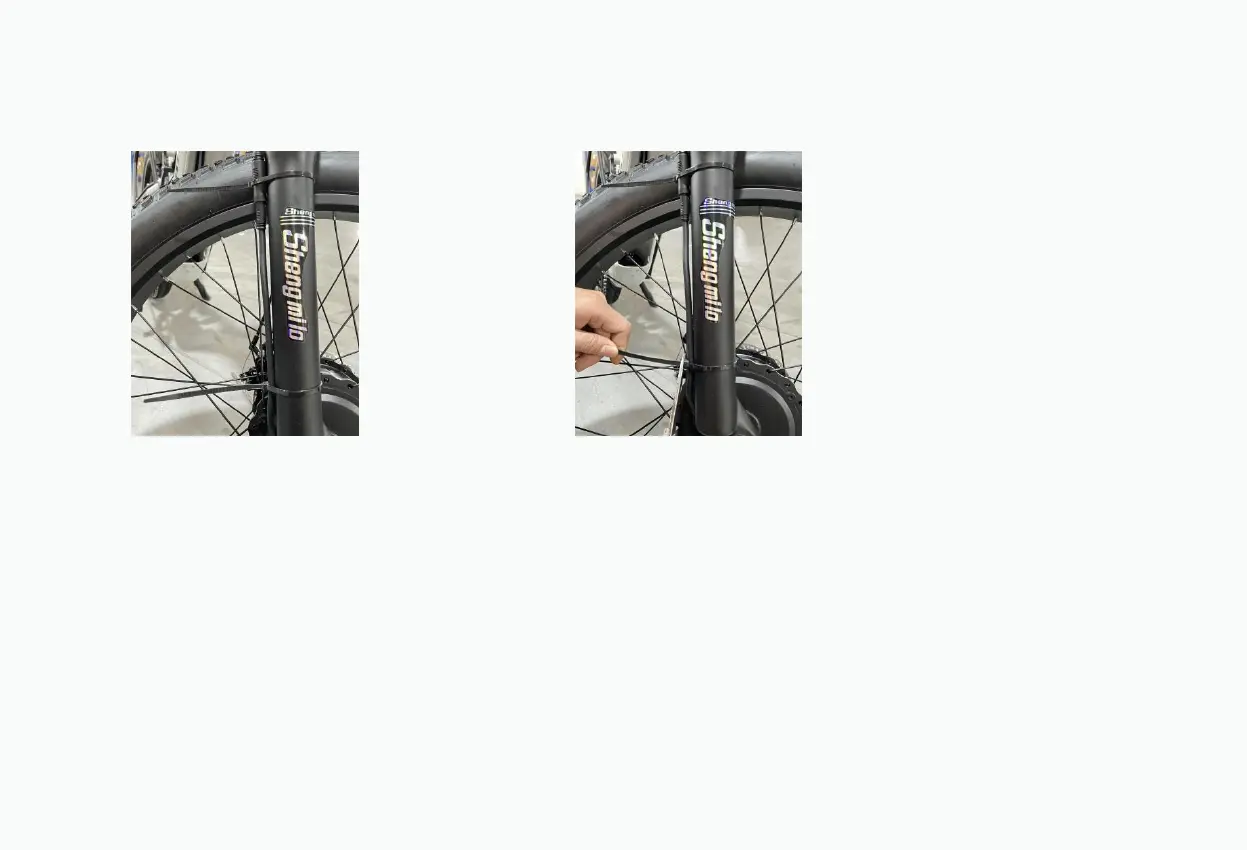

（1）Secure the wire to the fork with zip ties. （2）Use scissors to shorten the tie.
Step 6 : Rotate the front wheel. Make sure the quick release skewer lever on the front wheel is fully closed, and check the wheel balance in
Pedal- Only Mode.
If you notice the riding is imbalanced or the rotation of the front wheel makes noise, it means the bolts were not
completely tightened or not aligned horizontally.
◆ Headlight & Front Fender Installation
The headlights are attached with a bolt, and you'll need a 4mm wrench to tighten its nut
Step 1 : Loosen the bolts on the headlight. Align the headlight bolt holes with the holes on the fork bracket, then re-thread the
bolts through all holes and tighten the bolts with a 4mm wrench extractor retaining nut.
