SECTION 4 – SXM54, SXM60 MOWER DECK
4-26

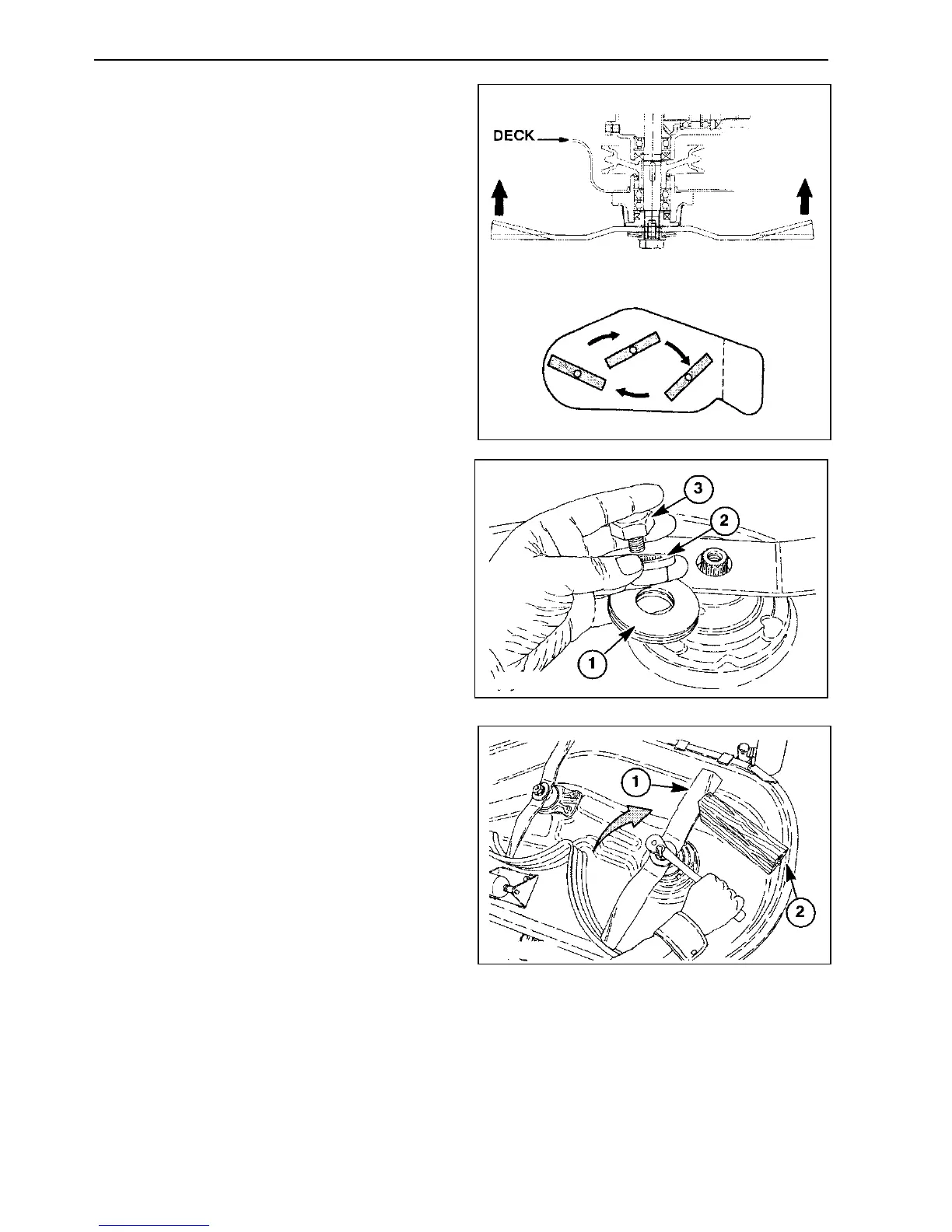

Blade Installation
1. Place the new or sharpened and balanced
blades on the spindles with the curved edge
(sail) part of the blade facing "up" towards
the underside of the deck.
NOTE: Rotate the blades to different spindles
(from the removed position) according to the
inset drawing.
2. Install the two cup washers ① spacer ②
and bolt ③.
3. Hand tighten the bolt.
4. Wedge a block of wood between the blade
① and mower housing ② to prevent the
spindle from rotating.
5. Use a M20 socket or long handle box wrench
to tighten the blade retaining bolt. Torque
each blade bolt to 98 - 118 N·m.
IMPORTANT: Recheck and re-torque the blade
and spindle pulley fasteners after the first hour of
mower operation, and daily thereafter.
NOTE: High lift blade kits are available, for
difficult cutting/discharge conditions
