2-1
SECTION 2
OPERATION
CONTROLS AND INSTRUMENTS
SEAT, SEAT BELT, AND ROLLOVER
PROTECTIVE STRUCTURE (ROPS)

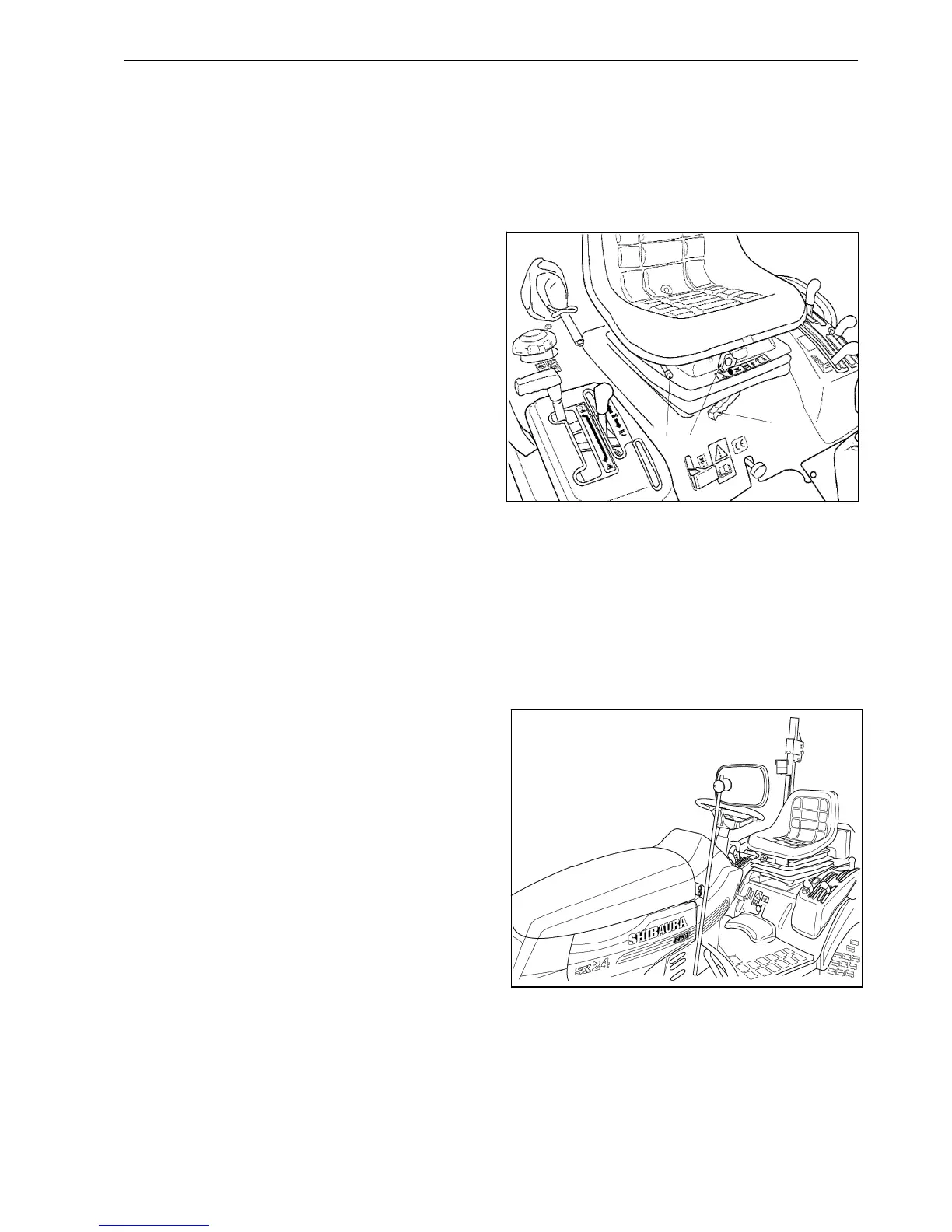

Adjusting the Tractor Seat
Your SHIBAURA Tractor equipped with an
adjustable suspension seat.
To adjust the seat fore and aft, move the release
lever ①, towards the fender, slide the seat to the
desired position, releasing the lever to lock.
The seat has seven height position controlled by
the knob ②. While sitting in the seat, pull out the
knob moving it to the left to increase the height,
or to the right to reduce the height.
To adjust the seat suspension for individual
operators; with moving the lever ③ straight up,
turn it clockwise to be for (+) and turn it
counter-clockwise to be for less (-).
Your tractor equipped with a mirror.
To adjust the mirror, loosen the screw tightened
clamp for repositioning the mirror.
