SECTION 4 – SXM54, SXM60 MOWER DECK
4-29
Installation

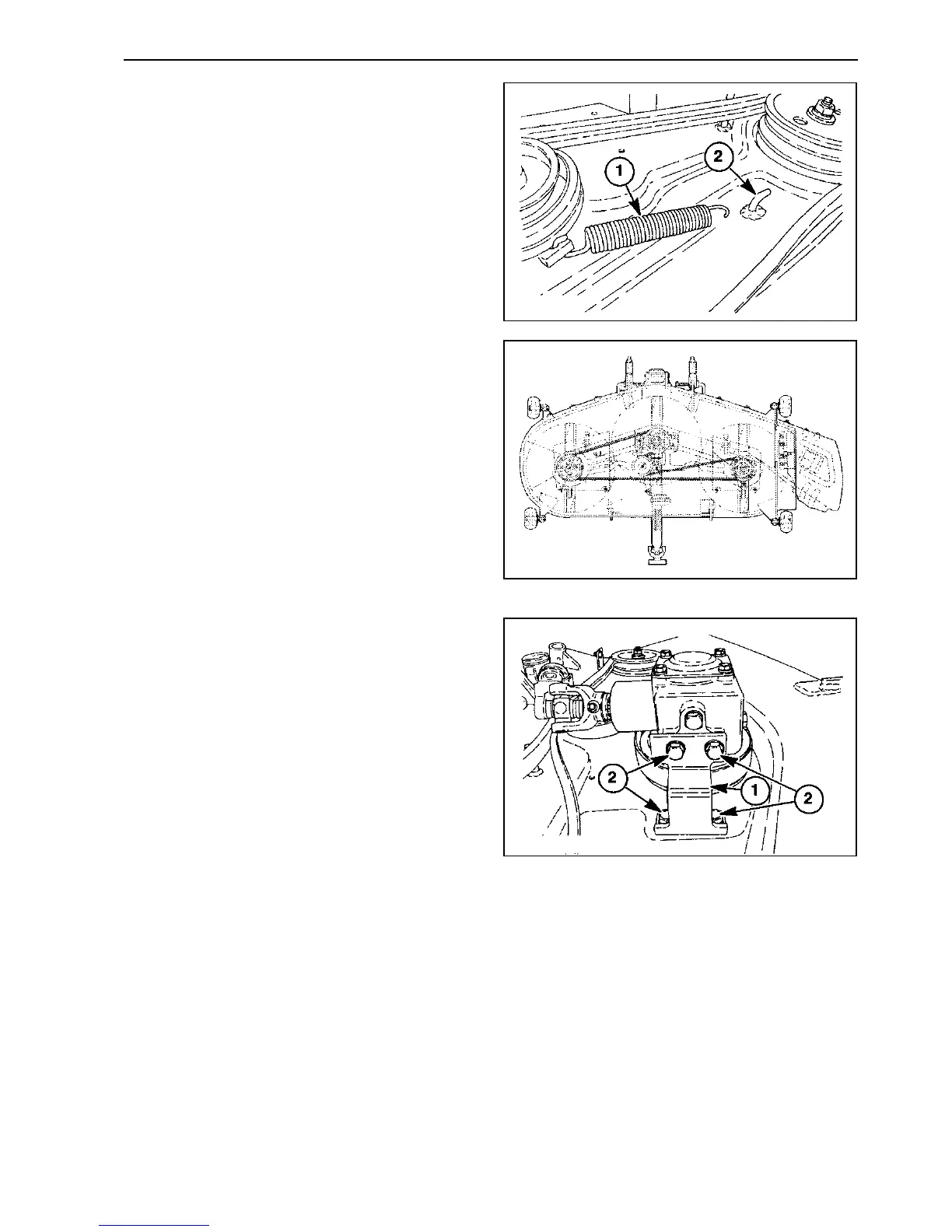

1. Remove the tension spring ① from the
spring hook ② on the deck.
2. Route the new belt around the pulleys as
shown.
3. Install the gearbox bracket ① and secure
with the bolts ②. Tighten the bolts to 77 - 90
N·m.
To Next Page
