SECTION 3 – LUBRICATION AND MAINTENANCE
3-7
2. Place a suitable container below the oil filter
① to catch the used oil and unscrew the oil
filter. Discard the used oil and filter.
3. Coat the gasket on the new filter with a thin
film of new oil. Screw the filter into place until
the gasket contacts its mating surface, then
turn the filter approximately three-quarters of
a turn BY HAND. Do NOT overtighten.
4. Add the proper type and amount of new oil,
then start the engine and check the filter for
leaks. The crankcase capacity (with filter) on
these tractor models is 4.0L.
PRIMARY FUEL FILTER
NOTE: Primary fuel filter should be replaced
every 300 hours of operation.

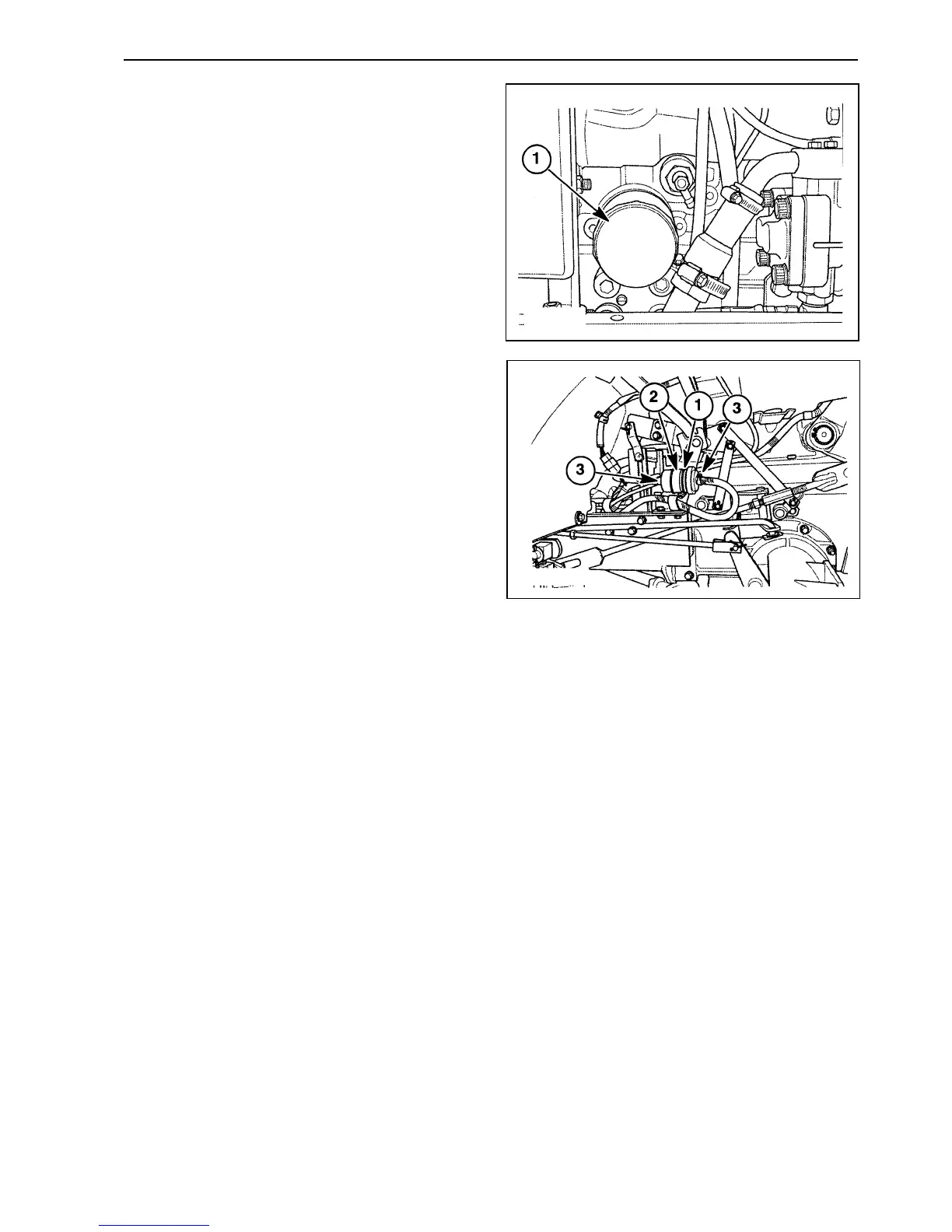

The primary fuel filter ① is installed in the fuel
line between the fuel tank and the electric fuel
pump. Location left rear of tractor, (left rear tire
removed for clarity).
To replace filter:
1. Remove left rear tire assembly and support
axle with jack stand.
2. Drain the fuel tank or pinch the fuel hose to
prevent fuel leakage.
3. Remove filter mounting clamp ② from filter.
4. Loosen clamps ③ from fuel line and remove
fuel filter from fuel hose.
5. Install new fuel filter, pay attention to
directional arrow on filter, arrow points in
direction of fuel flow, from tank to engine.
6. Install line clamps ③ and mounting clamp
② to filter.
7. Check for any leakage, place key switch in
the "ON" position for a several seconds to
bleed any air out of fuel system.
