SECTION 3 – LUBRICATION AND MAINTENANCE
3-13
TRANSMISSION, REAR AXLE, AND
HYDRAULIC SYSTEM
Checking the Transmission, Rear Axle, and
Hydraulic System Oil Level
NOTE: Check the transmission, rear axle, and
hydraulic system oil level after every 50 hours of
operation.

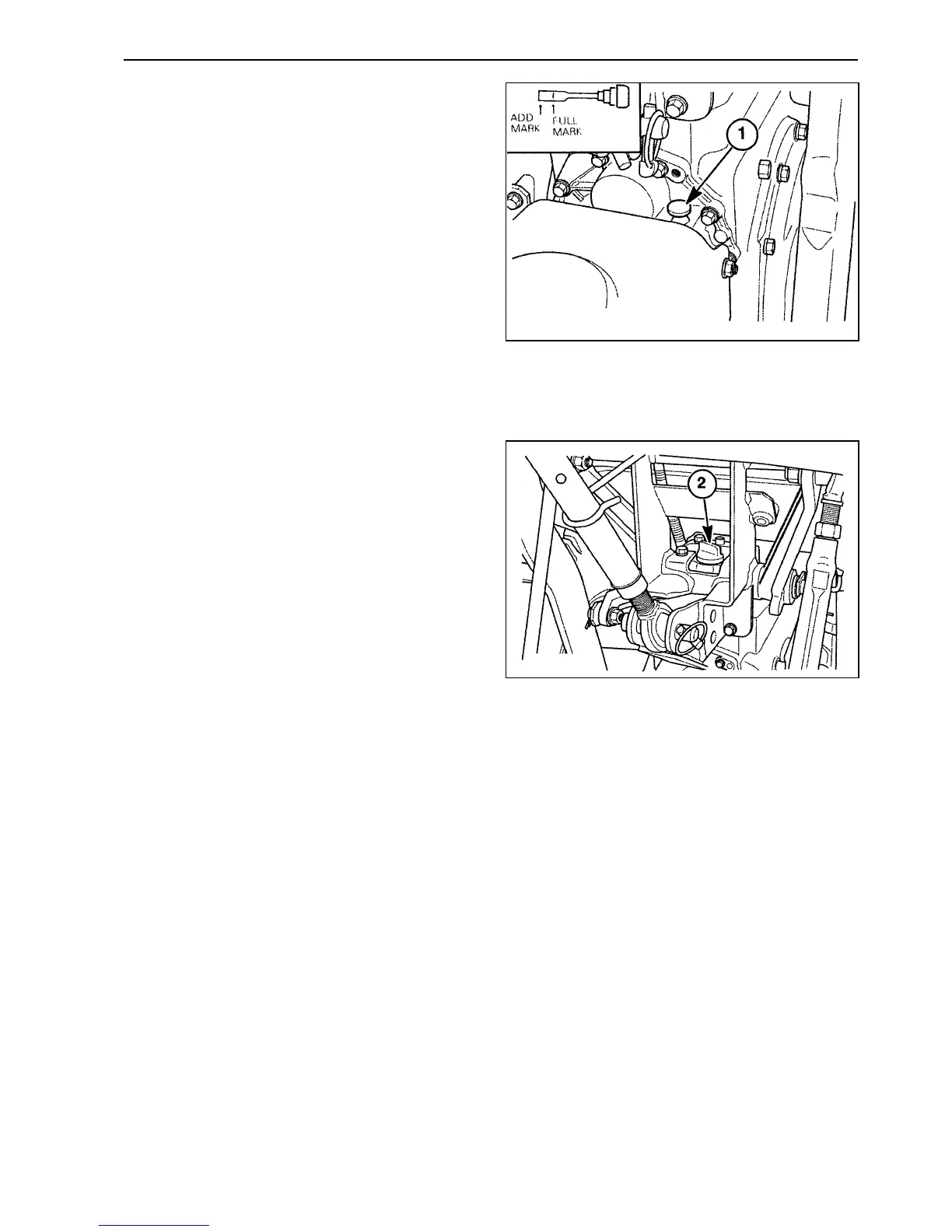

1. With the engine off and the tractor standing
level, check the oil level using the dipstick ①.
The dipstick is located on the rear of the
transmission housing, on the RH side, above
the rear PTO guard. The oil is at the correct
level when it reads between the two marks
on the dipstick, after fully inserting dipstick.
2. If the level is low, remove the filler plug ②
and ISO VG 46 hydraulic oil through the filler
hole. The filler plug is located on the upper
rear of the transmission housing, above the
hydraulic lift rocker. Do not fill above the
dipstick 'full' mark.
3. Reinstall the filler plug and dipstick.
