SECTION 4 – SXM54, SXM60 MOWER DECK
4-18

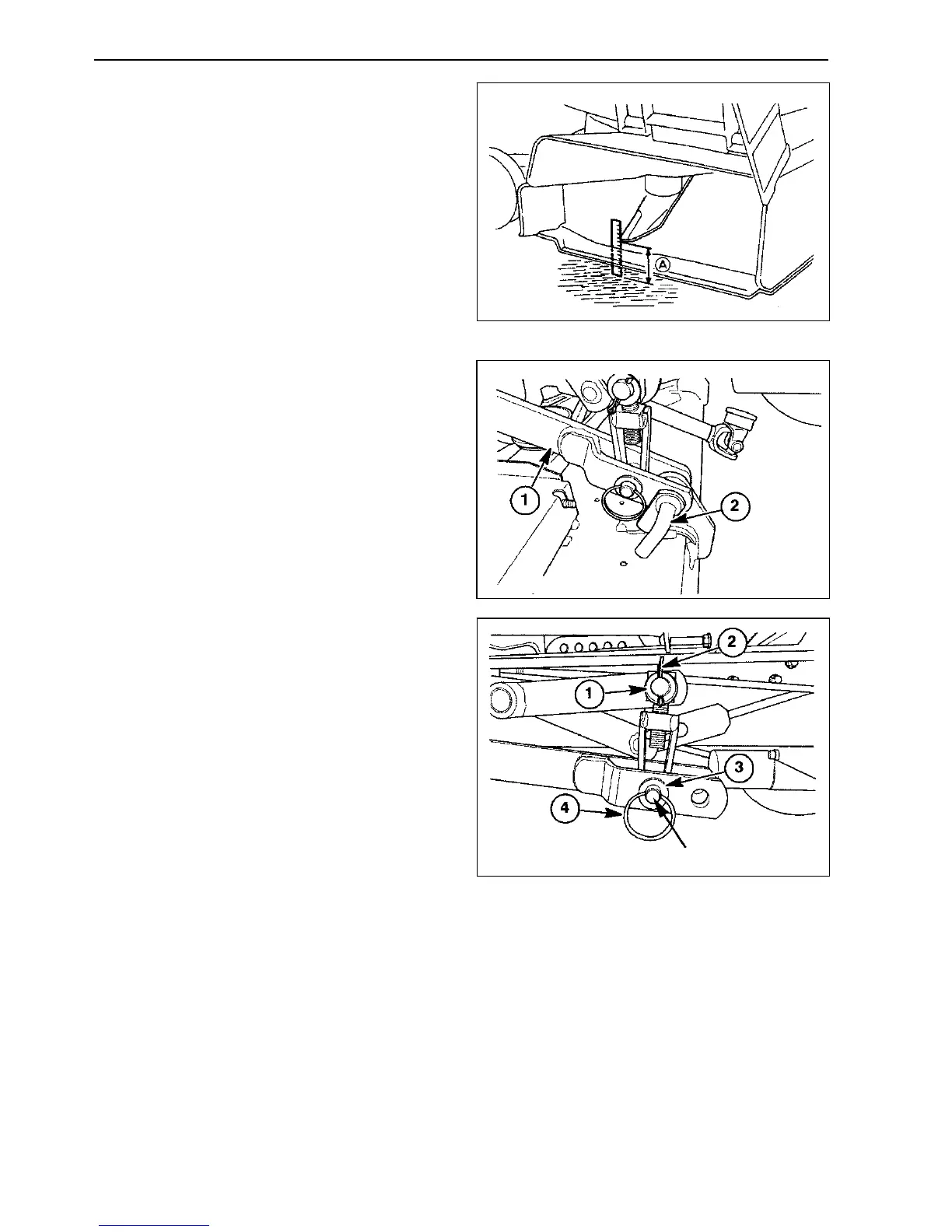

6. Measure the left and right blade outer ends.
7. The difference between the left and right
blades should not be more than 3 mm. If the
difference is more than 3 mm, proceed to the
next step to adjust.
8. With the deck lowered in the 4" cutting height
position, disconnect the rear links ① from
the mower deck using the spring loaded
handle ②.
9. Remove the cotter pin ① and M16 flat
washer ② from the lift arm.
10. Remove the wire ring ④ M16 flat washer ③
and pin ⑤ from the link arm.
11. Slide the adjuster off the pin on the lift arm
and adjust as follows:
• Lengthen the adjuster on the side with the
high blade or;
• Shorten the adjuster on the side with the
low blade.
12. Reinstall the adjuster and secure with
washers, cotter pin and wire clip.
13. Measure blade height on left and right side.
14. Repeat steps 9-13 until blades are within 3
mm.
⑤
