SECTION 4 – SXM54, SXM60 MOWER DECK
4-20

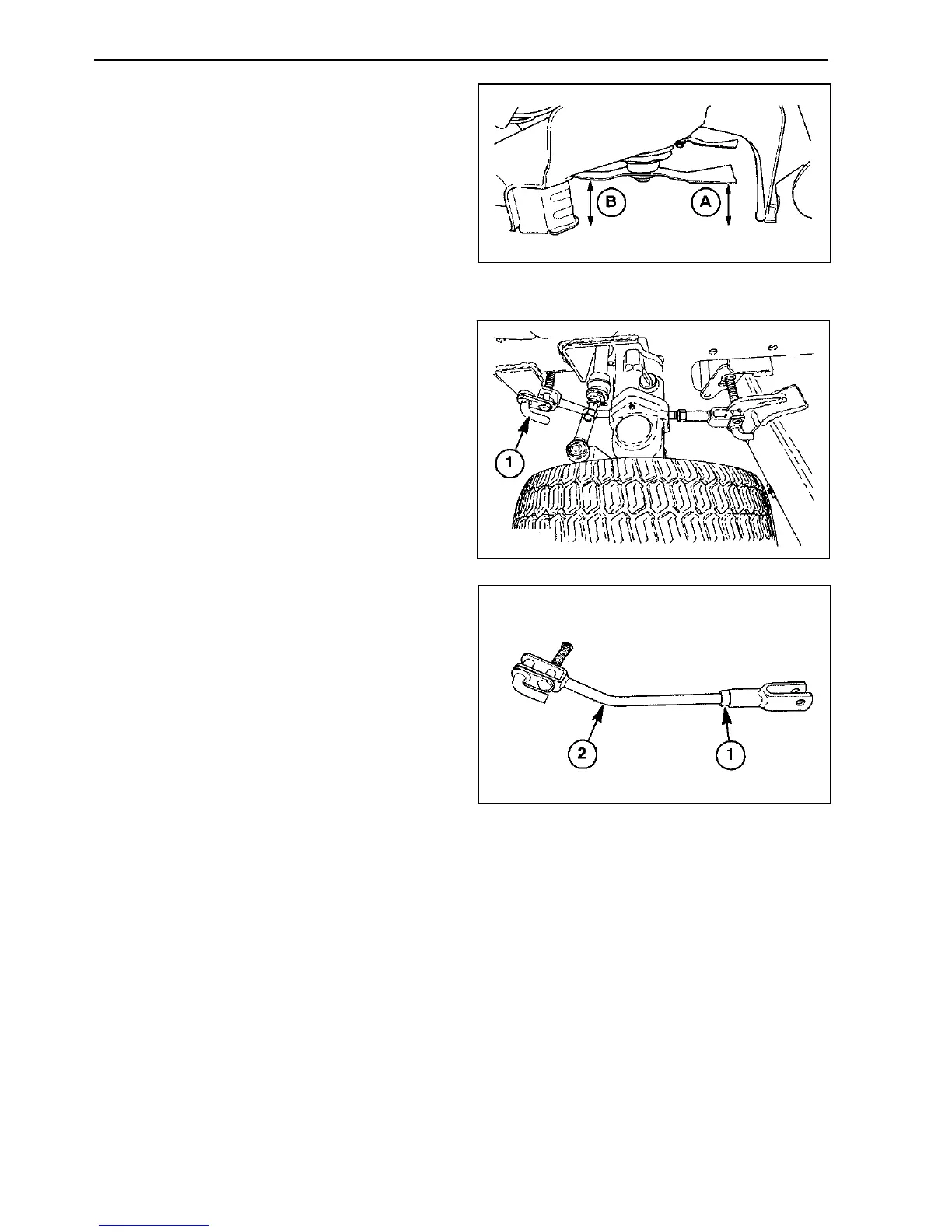

6. Measure one blade at the front and rear end.
7. The front Ⓐ of the blade should be 3 mm
lower than the rear Ⓑ of the blade. If the
difference is more than 3 mm, proceed to the
next step to adjust.
8. With the deck lowered in the 4" cutting height
position, disconnect the front links ① from
the tractor.
9. Loosen the lock nut ① on the left and right
front links.
IMPORTANT: Count the number of turns
required on each front link to achieve proper
adjustment Use the same number of turns on
each front link to maintain side to side level.
10. Turn the front portion ② of the link arm and
adjust as follows:
• Lengthen the adjuster (turn out) to lower
the front of the blade, or;
• Shorten the adjuster (turn in) to raise the
front of the blade.
11. Connect the front links to the tractor and
measure the front and rear blade height.
IMPORTANT: Front of blade must never be
higher than rear of blade.
12. Repeat steps 8-11 until blades are within 3
mm. Tighten the lock nuts on the front links
when adjustment is correct.
