MODEL: SD1010, SD1015, SD1030, SD1032

DESCRIPTION

The SHIELD Sprinklers, SD1010, SD1015, SD1030, SD1032

(Glass Bulb Type), Standard Orice, Upright, Pendent and

Recessed Pendent type, design incorporates state-of-the-art,

heat responsive, frangible glass bulb design (standard or quick

response)forprompt,preciseoperation.

The die cast frame is more streamlined and attractive than

traditionalsandcastframes.Itiscastwithahex-shapedwrench

boss to allow easy tightening from many angles, reducing assembly

effort. This sprinkler is available in various temperature ratings

and nishes to meet many design requirements. The recessed

pendent should be utilized with a recessed escutcheon which

provides up



”of adjustments. AllSprinklersaremanufactured

usingthetimeprovenBellevillesealusedexclusivelybyallmajor

manufacturestoensurelonglifeandsafeoperation.

SPRINKLER OPERATION

Theoperatingmechanismisafrangibleglassbulbwhichcontains

aheatresponsive liquid. Duringare, theambienttemperature

risescausingtheliquidinthebulbtoexpand.Whentheambient

temperature reaches the rated temperature of the sprinkler, the

bulbshatters. Asaresult, thewaterwayis clearedofallsealing

partsandwaterisdischargedtowardsthedeector.Thedeector

is designed to distribute the water in a pattern that is most

effectiveincontrollingthere.

MAXIMUM COVERAGE

Standard spray coverage is up to: Light Hazard = 225 square

feet(20.9sq.m);OrdinaryHazard=130squarefeet(12.1sq.m)per

NFPA13.

TECHNICAL SPECIFICATION

RATINGS

SPRINKLER HEAD

Upright, Pendent & Recessed Pendent Sprinklers

SprinklerIdentication

Number

Standard SD1015, SD1010

(bulb5mm),QuickResponse

SD1030,SD1032(bulb3mm)

Style Upright Sprinkler SD1015,

SD1032, Pendent &

Recessed Pendent

SD1010, SD1030

K Factor 5.6gpm/psi

.(80lpm/bar

)

ResponseTimeIndex

(RTI)

Standard 50

Quick Response 30

NominalThreadSize

”NPT(15mm)

OrceSize 13mm

Max.WorkingPressure 175PSI(1200kPa)

FactoryHydrostaticTest 100%@500PSI(3450kPa)

Min.OperationPressure 7PSI(48kPa)

SprinklerTemperature

Classication

Norminal Sprinkler

TemperatureRating

N.F.P.AMaximumAmbient

(Ceiling)Temp.(Allowed)

Glass Bulb Color

Ordinary** 155ºF/57ºC 100ºF/38ºC Orange

Ordinary 155ºF/68ºC 100ºF/38ºC Red

Intermediate 175ºF/79ºC 150ºF/65ºC Yellow

Intermediate 200ºF/93ºC 150ºF/65ºC Green

High* 286ºF/141ºC 225ºF/107ºC Blue

ExtraHigh* 360ºF/182ºC 300ºF/149ºC Mauve

Open* Open - No Bulb

*Non-Approved

**ULListedonly.

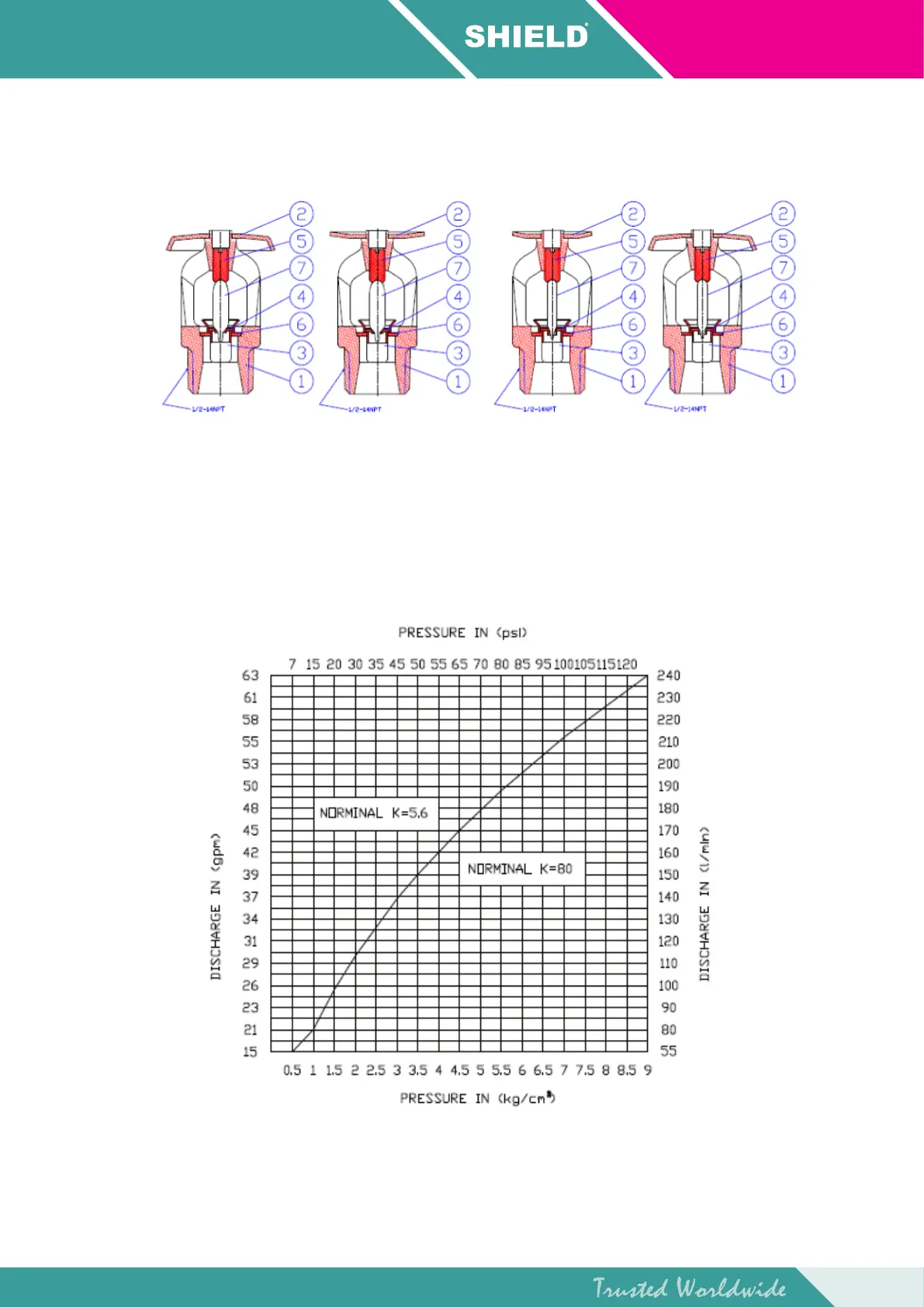

Shield SD1010 - SHIELD Upright, Pendent & Recessed Pendent Sprinkler Data; Part List (SD1015, SD1010, SD1030, SD1032); Discharge Curve
