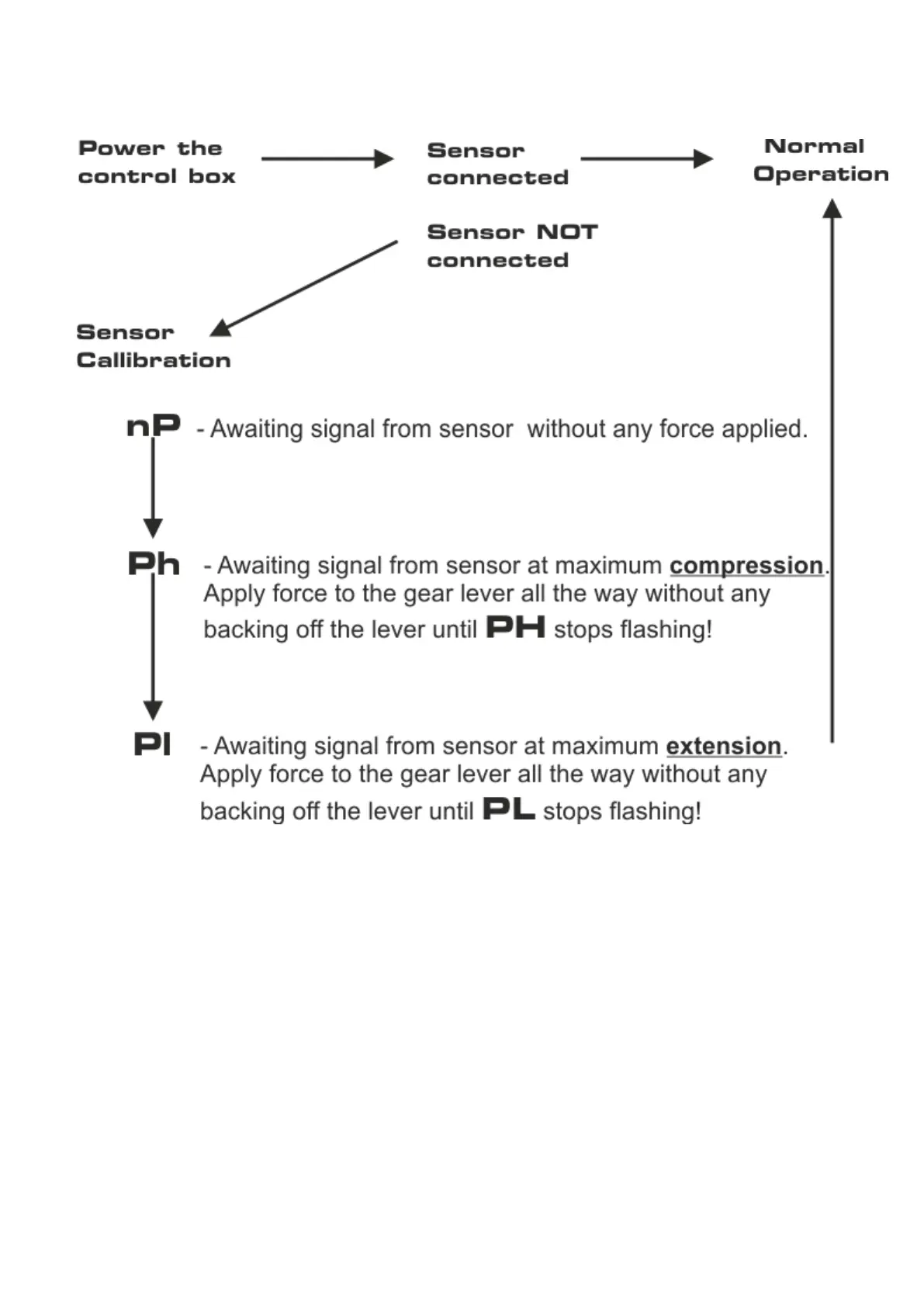

The following is shift sensor calibration procedure.
(Required only if you’re replacing an existing sensor!)
Activating sequence for the Launch Control:
- The vehicle speed must be 0km (rear wheel standing still).
- The engine RPM must drop at idle for at least 1,5seconds.
- The engine RPM must raise to the pre-set Launch Control RPM limit (twist the throttle here).
Force to reset of the control box
With everything connected turn the ignition key on with the engine kill switch in RUN position,
the engine must not be running then press and hold the shift lever in the direction of
upshifting all the way in – at this point the control box will display a counter starting from 1
hold the shift lever until 9 is reached, module is now reset to the factory pre-set values, refer
to the above table.
Tips on adjusting your Quickshifter!
The Full Race Unit arrives with best overall setting to your motorcycle make and model. We
strongly recommend you to test ride it before changing the St settings. Use the following as a
general guide when adjusting your Quickshifter:
