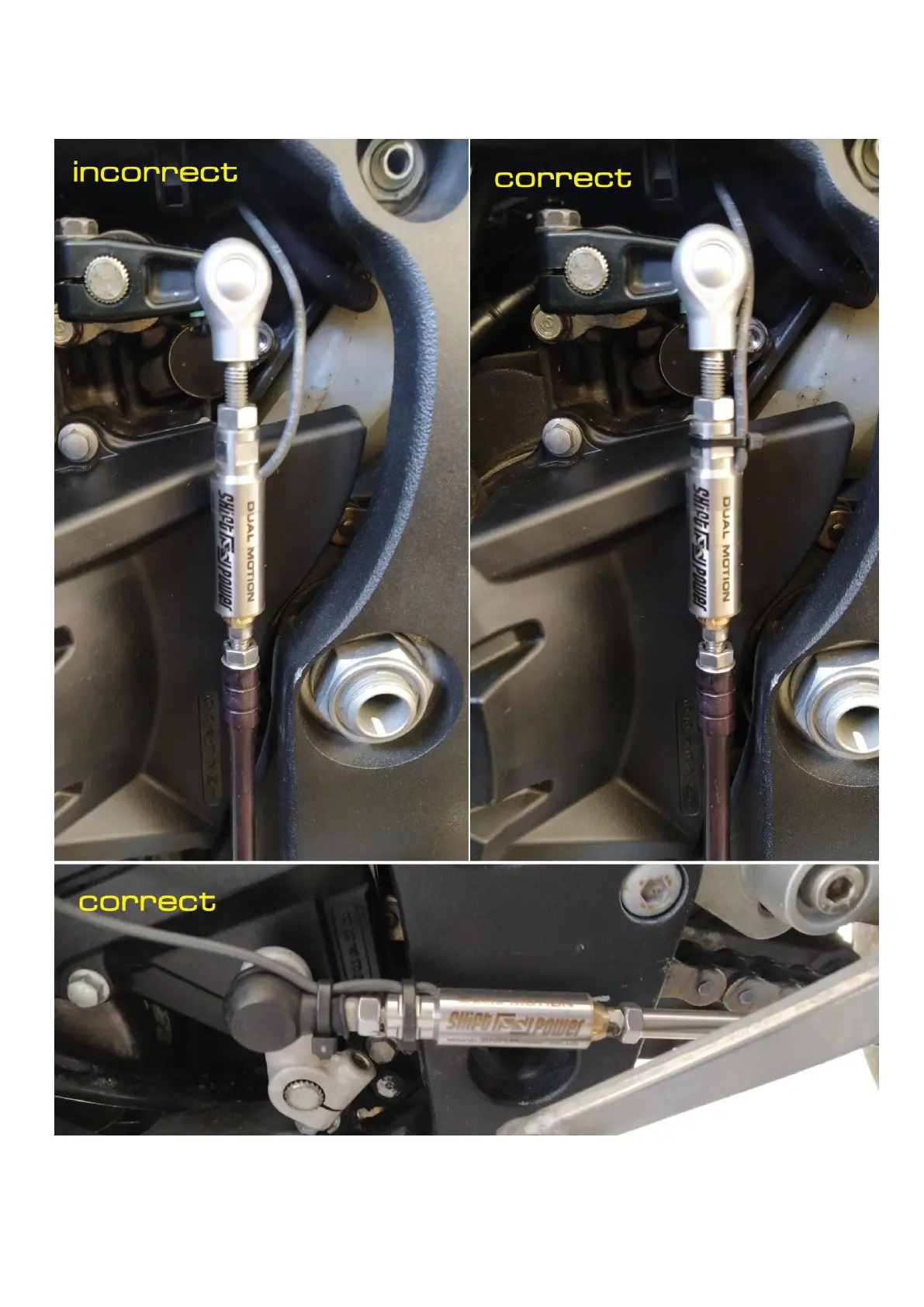

NOTE: The gearbox pivot arm must extend to 90 degrees with the shift rod in order to
receive equal force in both directions, if not set correctly the gearbox may not react
accordingly and miss gears when using the quickshifter!
After this is done, turn the ignition key ON, make sure the engine kill switch is in RUN
position and the gearbox is in neutral, at this time the control box must power up and enter
normal operation displaying SP flashing.
