INSTALLATION
Installation of the hub to the frame
To be continued on next page
3
(H)
(J)
(I)
(K)

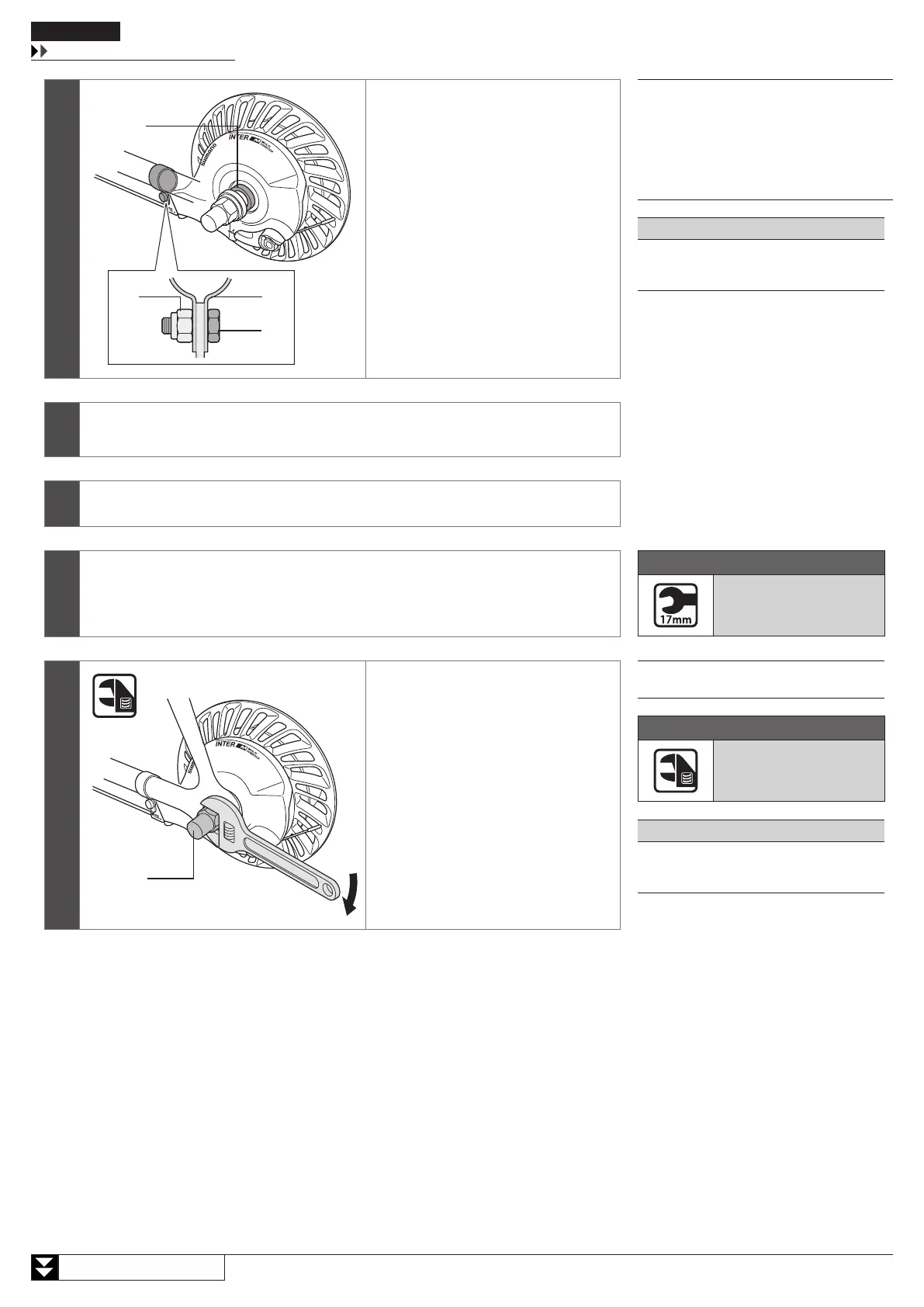

Attach the brake arm of the INTER M
brake to the chainstay with the brake
arm clip (J).
Then temporarily fix the clip screw (K)
and clip nut (I) by lightly tightening
them.
Check that the brake unit is firmly
secured to the hub body with the
brake unit fixing nut or brake unit
fixing washer (H).
(H) Brake unit fixing nut/Brake unit
fixing washer
(I) Clip nut
(J) Brake arm clip
(K) Clip screw (M6×16 mm)
NOTE
If the hub nuts are cap nuts, use a frame
with dropouts that are at least 7 mm thick.
4
Pull the wheel towards the rear to adjust the chain tension and align the wheel with
the frame center.
5
Temporarily tighten the hub nut strongly.
6
Slightly loosen the hub nut.
Fully tighten the brake unit fixing nut.
Tightening torque
20 - 25 N·m
7
(L)
Take up the slack in the chain and
secure the wheel to the frame with the
hub nut (L).
(L) Hub nut
Tightening torque
30 - 45 N·m
NOTE
Check that the wheel is fixed securely to
the frame with the hub nuts.
