INSTALLATION

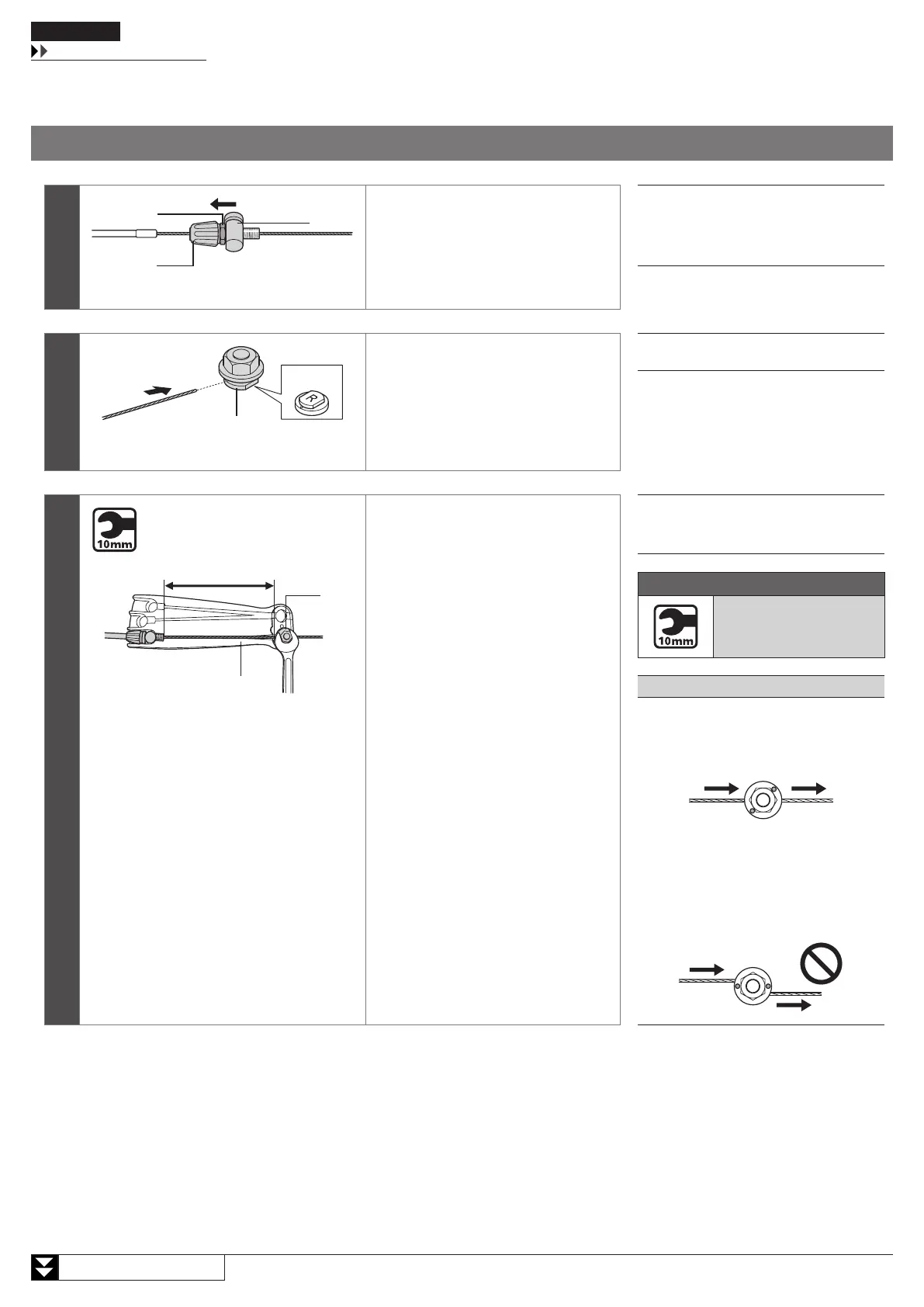

Installation of the brake cable
Installation of the brake cable
Rear side
1
(B)
(C)
(A)
After checking that the cable
adjustment barrel (B) and adjustment
nut (A) are fully tightened, insert the
outer holder unit (C) into the inner
cable in the direction shown in the
illustration.
(A) Adjustment nut
(B) Cable adjustment barrel
(C) Outer holder unit
2
(D)
(a)
After checking that the marking of the
back side of the inner cable fixing bolt
unit (D) is “R”, pass the inner cable
through the hole of the inner cable
fixing bolt unit.
(a) "R" marking
(D) Inner cable fixing bolt unit
3
(b)
(E)
(F)
Place the components as shown in the
following figure and tighten the inner
cable fixing nut (E).
Use (b) 99 mm of TL-IM21 (F) to
tighten the inner mounting nut as
shown in the illustration.
(E) Inner cable fixing nut
(F) TL-IM21
Tightening torque
6 - 8 N·m
NOTE
•
After tightening, check that the
orientations of the inner cable fixing nut
and inner cable are correct as shown in
the illustration.
•
Never tighten the inner cable fixing bolt
with it attached to brake. The
orientations of the inner cable fixing nut
and inner cable will become improper as
shown in the illustration, which may
cause the inner cable fixing bolt to
detach from the brake body.
