15
INSTALLATION

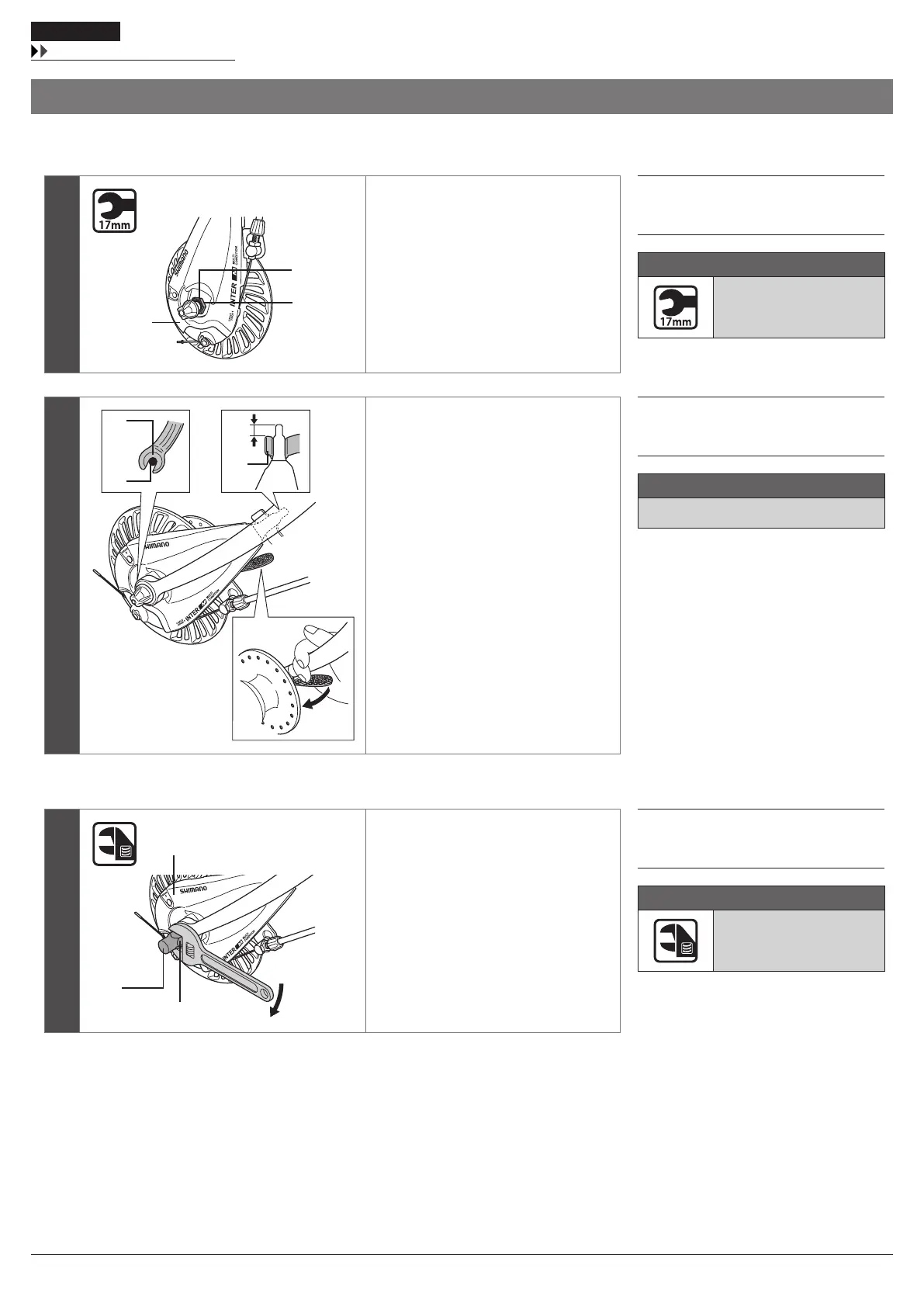

Installation of the hub to the frame
Front side
<For quick release type>
1
(A)
(B)
(a)
Check that the front brake unit (A) is
firmly secured to the hub with the
brake unit fixing nut (B).
(a) With notches (The side with
notches is the front.)
(A) Brake unit
(B) Brake unit fixing nut
Tightening torque
15 - 20 N·m
2
(d)
(D)
(b)
(C)
(c)
Check that the hub axle (C) is touching
the back of the dropout, and that the
end of the brake arm is protruding 11
mm or more from the brazed-on
bracket (D) of the front fork. Check
also that the wheel is firmly secured to
the frame with the quick release or the
hub nut.
If the wheel is not installed properly, it
may come off the frame, which could
result in a serious accident when
riding.
(b) Touching
(c) 11 mm or more
(d) For quick release type:
Secure the cam lever of the quick
release firmly.
(C) Hub axle
(D) Brazed-on bracket
Cam lever tightening torque
5 - 7.5 N·m
<For nut type>
(E)
(F)
(e)
Check that the front brake unit (F) is
firmly secured to the hub body with
the hub nut (E).
(e) Without notches
(E) Hub nut
(F) Brake unit
Tightening torque
20 - 25 N·m
To Next Page
