INSTALLATION
Installation of the brake cable
3
(b)
(E)
(F)
(c)
(d)
(E)
(F)

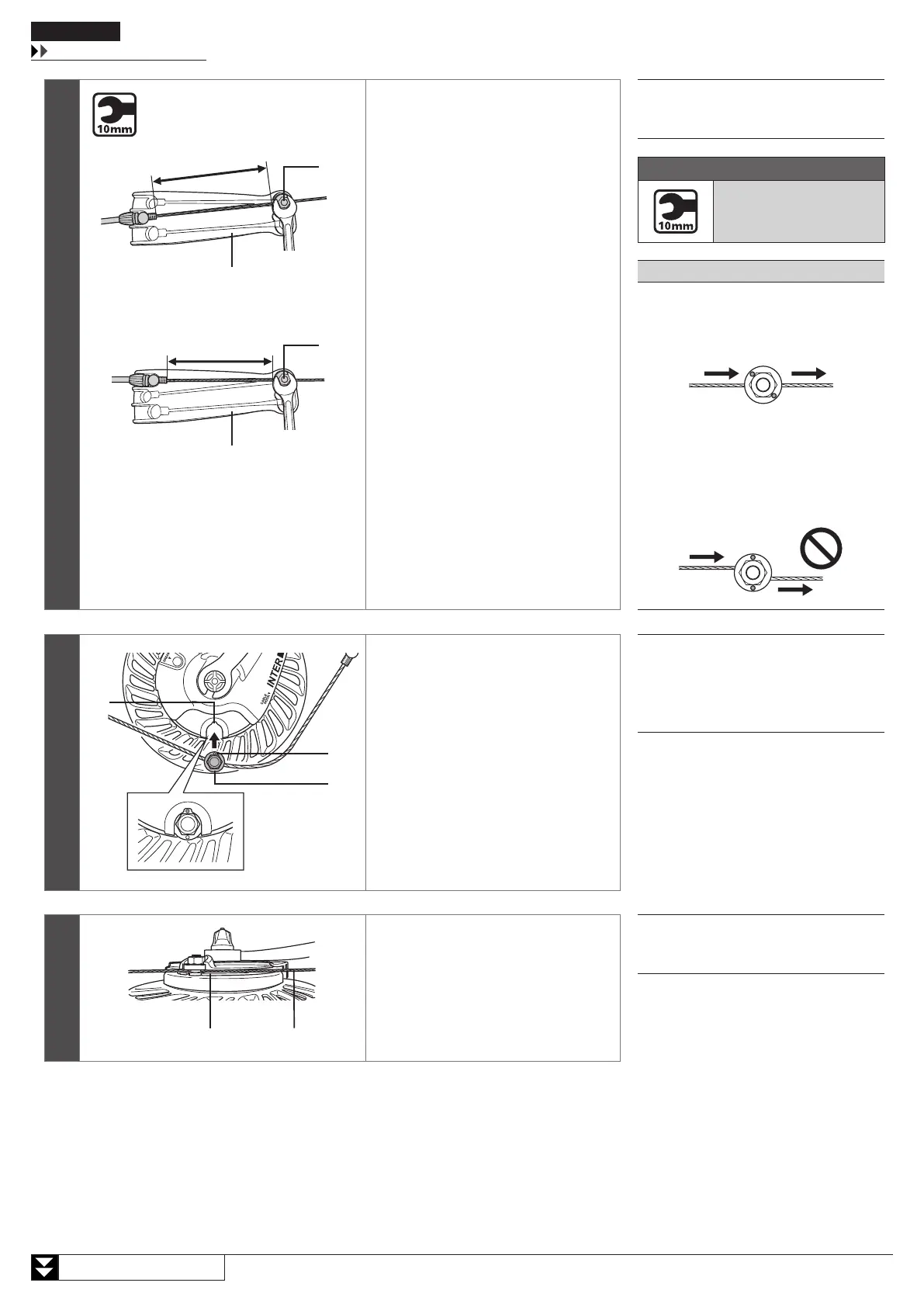

Place the components as shown in the
following figure and tighten the inner
cable fixing nut (E).
Use (b) 109 mm of TL-IM21 (F) to
tighten the inner mounting nut as
shown in the illustration.
Use (d) 101 mm for BR-IM86.
(E) Inner cable fixing nut
(F) TL-IM21
Tightening torque
6 - 8 N·m
NOTE
• After tightening, check that the
orientations of the inner cable fixing nut
and inner cable are correct as shown in
the illustration.
• Never tighten the inner cable fixing bolt
with it attached to brake. The
orientations of the inner cable fixing nut
and inner cable will become improper as
shown in the illustration, which may
cause the inner cable fixing bolt to
detach from the brake body.
4
(G)
(H)
(I)
Align the red mark on the inner cable
fixing washer (H) so that it faces in the
direction of the groove in the winder
unit (G), and then insert the inner
cable fixing bolt unit (I) and push it
into the groove in the winder unit as
far as it will go.
(G) Groove in the winder unit
(H) Red mark on inner cable fixing
washer
(I) Inner cable fixing bolt unit
5
(K)
(J)
Route the inner cable (K) along the
groove in the winder unit (J).
(J) Groove in the winder unit
(K) Inner cable
