Program basic setting screens
Program basic setting screens Lead screen
No setting on this screen
Press key to shift to step 1 lead screen.
Press key to shift to step 40 lead screen.
key Press key to shift to the first setting screen start mode setting screen.
Start mode setting screen
Initial value: （PV）
Setting range: (SV)、(PV)
This setting screen can decide if the start set point of program control should be PV, or
key should be the start SV which is set on the next screen.
When PV is chosen, and when PV is closer to the set point of Step1 than start wasting
SV,time is omissible.
Start SV setting screen
Initial value : At the type of sensor input 0
linear input type scaling lower limit
Setting range: sensor input type within measuring range
key linear input type within scaling range
Moreover, within limit of SV limiter.
When SV is chosen on start mode setting screen, this screen's set value becomes start set point.
The basic screen SV display at the time of Program RST is the value set on this screen.
Termination step setting screen
Initial value: 40
Setting range: 1～40 steps
key Pattern termination step No, of program control is set.
Number of execution Setting screen for repeating of program pattern
Initial value:1
Setting range:1～9999 times、∞
key The number of execution of a program pattern is set.
Gurantee soak zone
Initial value:OFF
Setting range:OFF,1～2000 Digits(Time unit belong to the Time unit setting screen)
key In case deviation of step SV of level step PV remains,the step does not move to the
next step until PV reach to the SV.
Time unit setting screen
Initial value:：(minute:second)
：
：：
： Setting range: ：、 ：、 .
..
.
key This decides if unit of the execution time set up at each step is minute:
second ,hour: minute,or hour.
To program basic setting screens Lead screen

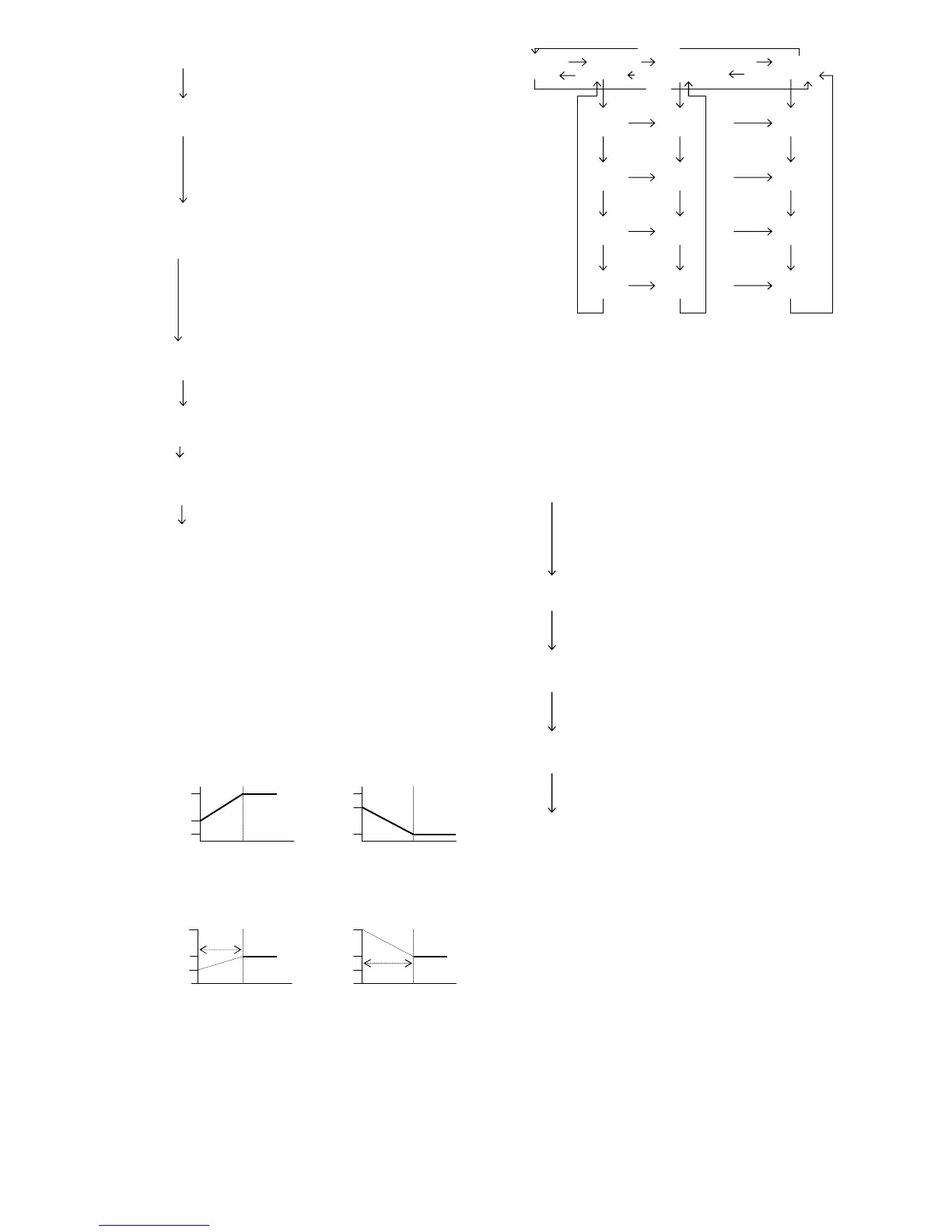

About PV start
In start mode,when PV is chosen, and when PV is closer to the set point of Step1 than start SV,
wasting time is omissible.
「example」：PV at the time of "RST is 30℃, Start SV is 0 ℃, Step 1's attainment SV 100 ℃,
Execution time of Step1 is 60 minutes
Start at start SV,attainment time is 60 minutes.
When starts at PV, 100-30=70℃ ,therefore 60 minutes x70%= 42 minutes = 18
minutes' shortening
However, depending on the spatial relationship between PV, Start SV, and attainment SV, it may become
SV start or Step1 may be skipped.
(1) case of SV start
PV≦S_SV(start SV) < 1_SV (step1 attainment SV)
PV≧S_SV>1 _SV
1_SV PV
S_SV
S_SV
PV 1_SV
Step 1 Step 2 Step 1 Step 2
(2)When Step 1 is skipped and progresses to Step 2
S_SV < 1_SV < PV
S_SV > 1_SV > PV
PV=1_SV
PV S_SV
abbreviation
1_SV 1_SV
S_SV PV abbreviation
Step 1 Step 2 Step 1 Step 2
Step 1 setting screens～ Step 40 setting screens
Screen sequence of step 1 setting screens ～ step 40 setting screens are as follows.
・・・・
・・・・
1 second ・・・ 1 second
1 second ・・・ 1 second
1 second ・・・ 1 second
1 second ・・・ 1 second
In each step setting screen, next to number, for Steps 1～9 , for 10～ 19 for 20～ 29 ,30
～39 and 40 are assained to distinguish each of them.
( Step 1 SV = , step 12SV = , step 23SV= , and step 34 )
If the key is pressed at each step lead screen, it shifts to SV setting screen of each step.
If the key is pressed on SV setting screen, it shifts to execution time setting screen of each step.
After that, if key key is pressed,then it shifts to output 1PID№, output 2PID№, and lead screen.
Moreover, it is if key is pushed for 1 second on each setting screen,it advances to the next Step №'s
same setting item screen.
(1_SV→2_SV・・・→0 SV→1_SV)
Step 1 is explained, since all the setting content of each step are same.
Step1 SV setting screen
Initial value : At the time of sensor input 0
At the time of linear input scaling lower limit
Setting range : At the time of sensor input within measuring range
key At the time of linear input scaling within the limits
Within limit of SV limiter,and yet
Attainment set value of Step 1 is set.
Being initialized when measuring range, unit, and scaling are changed.
Step 1 execution-time setting screen
Initial value: 00:01
Setting range: 00:00 to 99:59 (minute: second, hour : minute)
0.1-999.9 (hour) and ∞(infinity)
key Execution time of Step 1 is set.
Step1 output1 PIDNo. setting screen
Initial value:1
Setting range:1～3
PID№ used in Step1's control output 1 is chosen.
key
Step1 output 2 PIDNo. setting screen
Initial value:1
Setting range:1～3
key PID№ used in Step1's control output 2 is chosen.
Displayed when output 2 option is added.
To step1 lead screen
