LBL 61876 rev. E, March 2018 EN 8

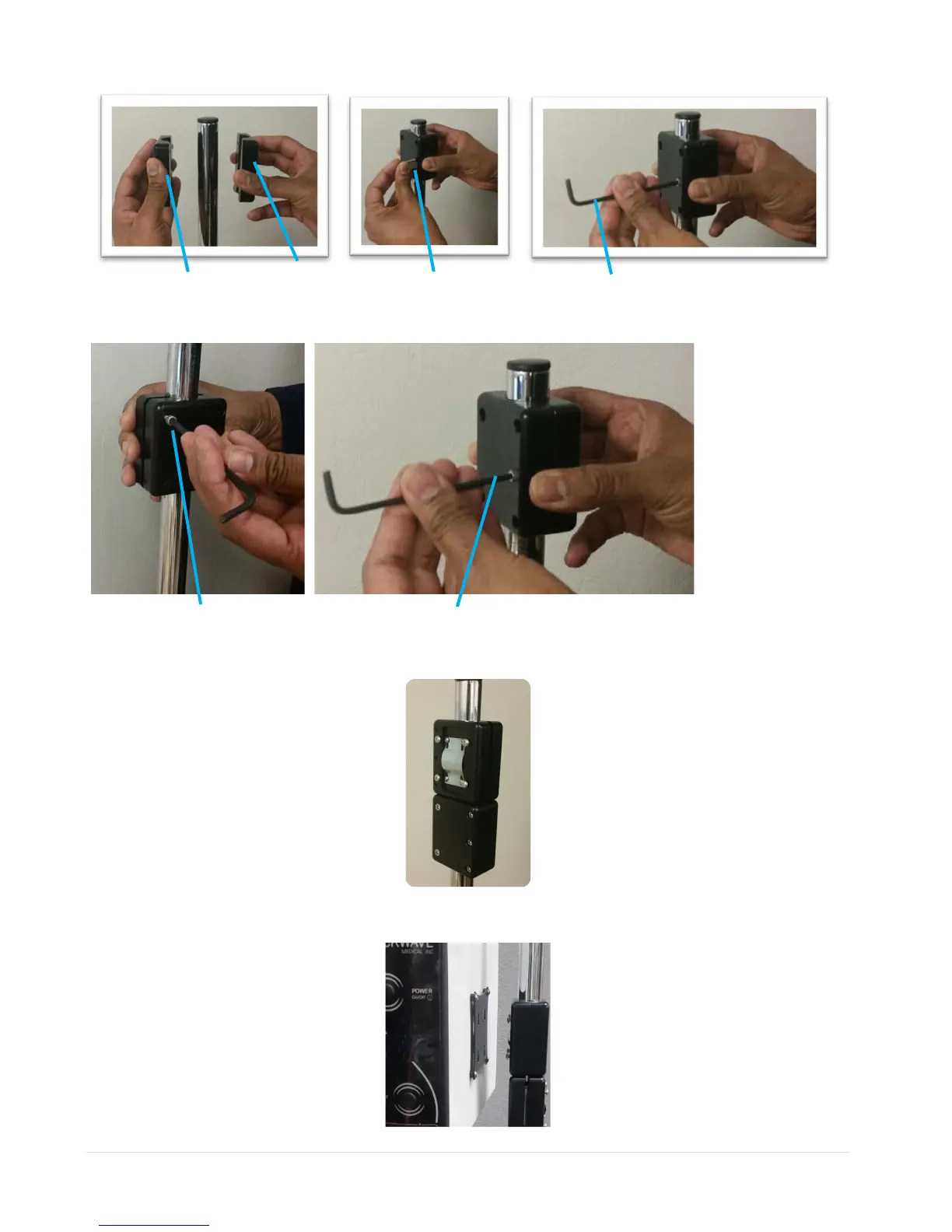

STEP 3 – Mount the brackets to the IV Pole as follows:
Slide the bracket to the desired position on the pole for the battery charger. Install and tighten the clamp screw.
Install and tighten the remaining mounting (2ea) and clamp screws (1ea).
Install the second mounting bracket in the same fashion. Position the second bracket so that it rests on top of the first bracket. Orient the brackets so that they are facing
opposite directions.
STEP 4 – Mount the IVL Generator to the top bracket:
Align the holes in the mounting plate on the right side of the IVL Generator with the bracket mounting studs. Push the IVL Generator towards the bracket to engage the
mounting studs then push the IVL Generator down to lock in place.
Side B
Bracket
Side A
Screw
(5/32”)
(5/32")
To Next Page
