LBL 61876 rev. E, March 2018 EN 7
5. Installation
Important - Follow all steps in Sections 5.0 – 5.5 prior to use of this product.
The IVL Generator is shipped as an assembled product, ready to install on an IV pole as outlined in Section 1.1. It is designed to be mounted to an IV pole prior to use.

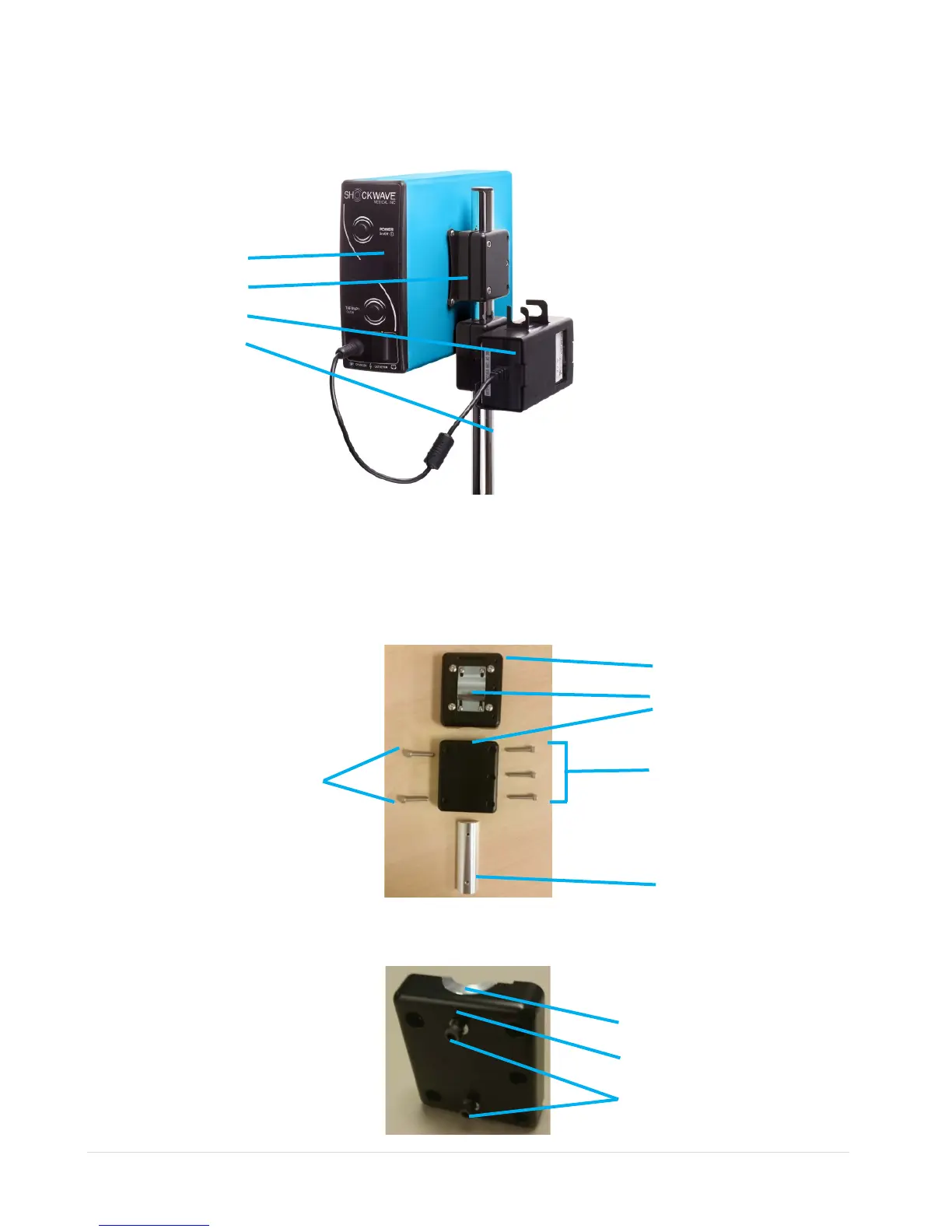

Once mounted, it will appear as shown below.
Care should be taken in selecting a stable IV pole which should have a wide base and locking-style casters. An IV pole with five casters, located in a circular pattern with a
diameter of at least 23 inches (58 cm), such as the I.V. League Ventilator Stat-Stand™ model 1059 (or equivalent) is recommended.
The IVL Generator should be mounted such that its top surface is no more than 50 inches (127 cm) from the floor. Consult your biomedical department in the event there are
any questions regarding the stability of the intended IV pole and mounting location. Mounting the IVL Generator to an unstable IV pole could present a tip over hazard to staff
or patients.
5.1 IV Pole Mounting
STEP 1 – Locate and identify mounting hardware (see image below).
Two identical sets of IV pole mounting hardware are provided. One set is used to mount the IVL Generator and one set is used to mount the battery Charger Module.
IV Pole Mounting Hardware
STEP 2 –Determine the IV pole diameter at the desired mounting location.
The mounting bracket will accommodate IV pole diameters from 3/4 to 1 inch (19 mm to 25 mm).
NOTE: If the pole diameter 1 inch (25 mm) proceed to step 3.
If the IV pole is 3/4 inch (19 mm) in diameter, attach the IV Pole Mounting Bracket Insert to the side B mounting bracket as shown below and proceed to step 3.
IV Pole Mounting Bracket – Side A
IV Pole Mounting Bracket Spring
IV Pole Mounting Bracket - Side B
IV Pole Mounting Bracket Mounting Screws
IV Pole Mounting Bracket Insert
IV Pole Mounting Bracket Insert
IV Pole Mounting Bracket
Side B
IV Mounting Bracket Insert Screws
IV Pole Mounting Bracket
Charger Module
IV Pole
