D2260A Mini Mobile Base Instructions
Assembling Base Around Machine
1. Threadeachknobseveralturnsintothefootposts,
as shown in Figure 12 in Assembling Base on Page 5.
2. Insertafootintothebottomofeachfootpost(see
Figure 12 on Page 5).Theknobshouldpickupthe
magnetic shaft of the foot when it gets close.
3. Slideasiderailinsideeachofthetwocorner
bracketswiththefootposts,thenslidetheassembly
up against the side of the machine that will be the
front when pushed (see Figure 13).
4. Movethecornerbracketsasclosetothemachine
base as possible.
5. Securetherailtothecornerbracketswith(4)
M8-1.25x16hexbolts,and8mmlocknuts,asshown
in Figure 14.
Tip: Thread the hex bolts into the rails but do
not tighten the lock nuts against the rails until
instructed.

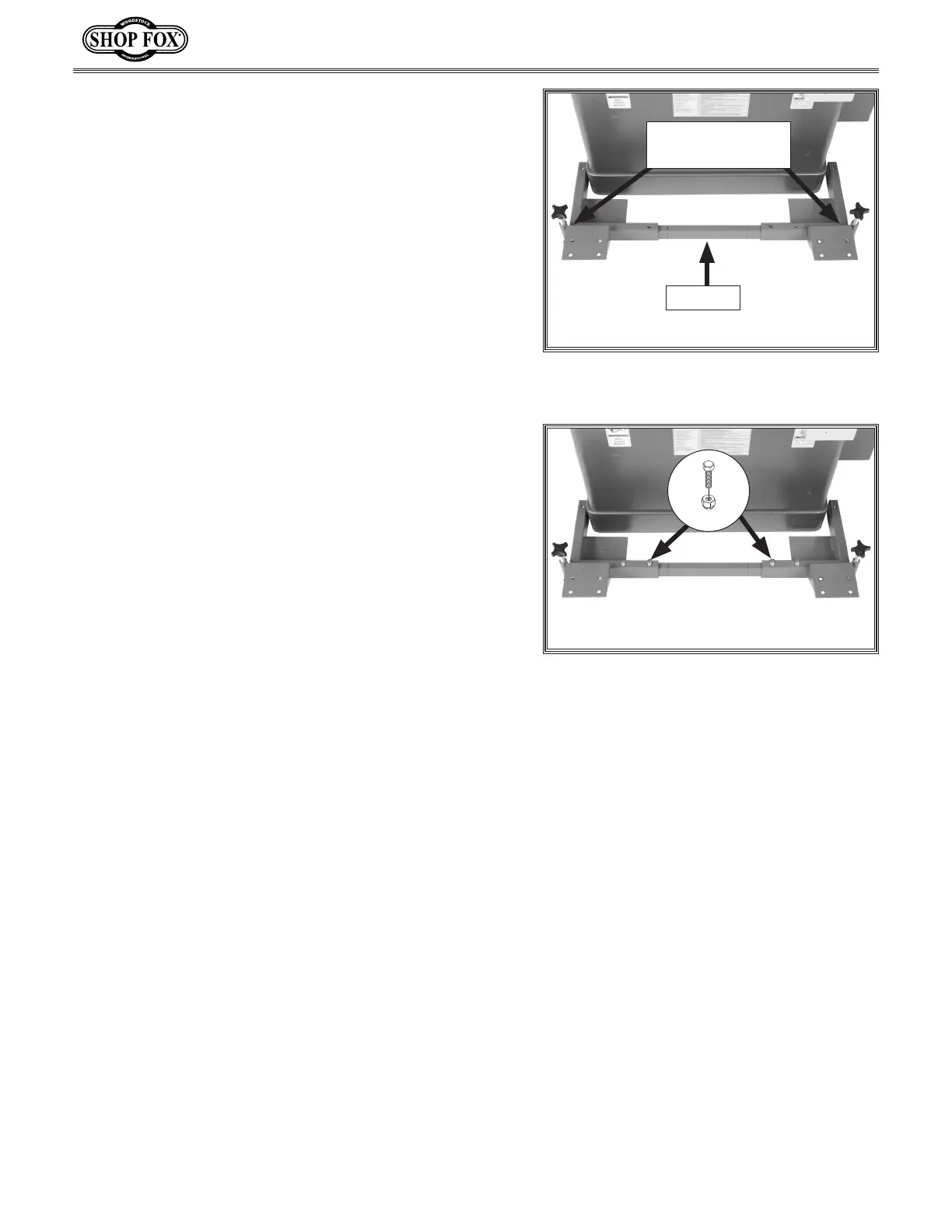

Figure 13. Rail inserted between corner
bracketswithknobsandfeet.
Figure 14.Railsecuredtobrackets.
x 4
CornerBrackets
w/Knob
SideRail
