-3-
D4666 Heavy-Duty Mobile Base
1. Attach swivel casters to both front corner using (4)
M8-1.25 x 16 hex bolts and (4) M8-1.25 lock nuts
(see Figure 4).

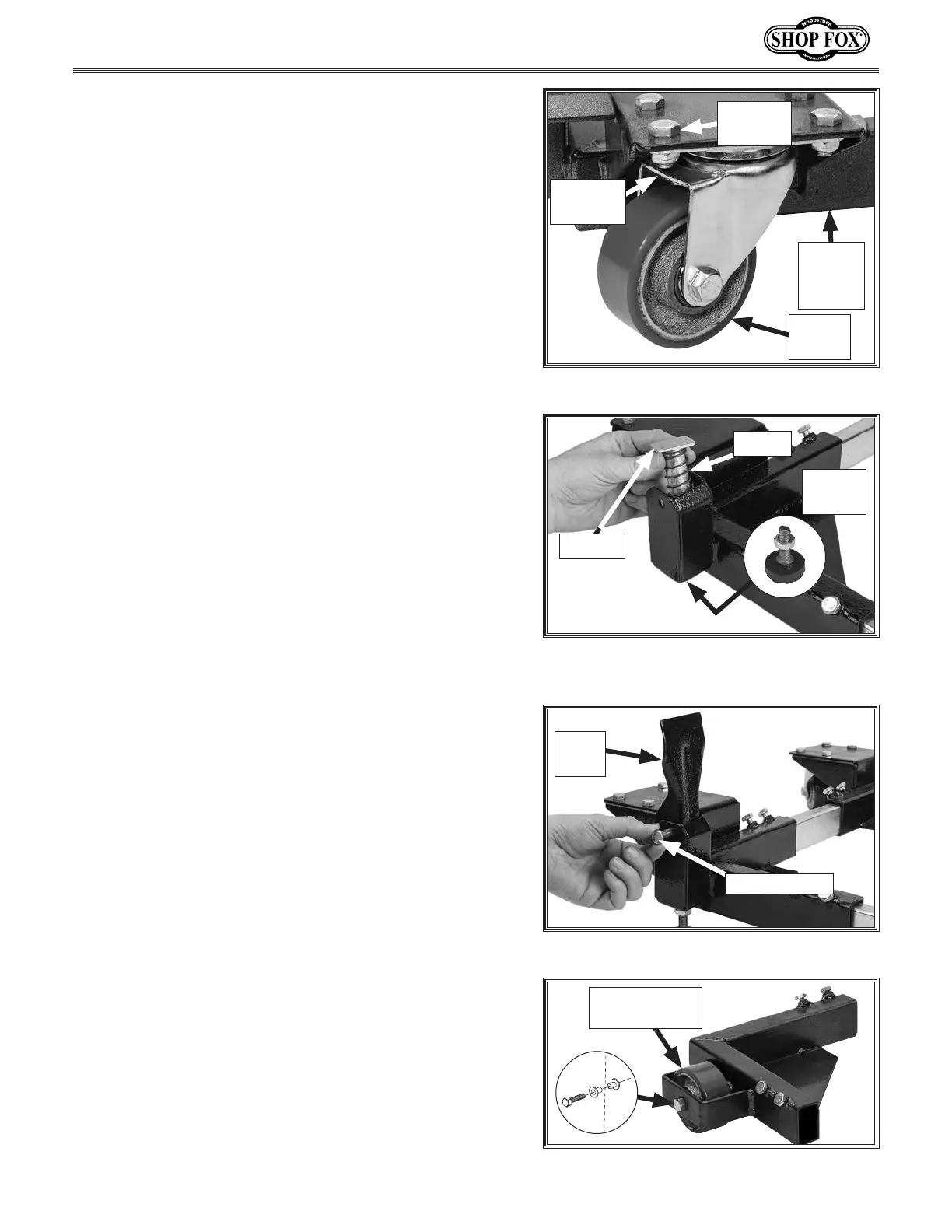

Assembling Base & Mounting Machine
Figure 4. Swivel caster attached.
Spring
Figure 6. Attaching foot pedal.
Shoulder Bolt
Figure 5. Installing foot pedal plunger and
spring.
Figure 7. Fixed wheel attached.
Fixed Caster
Wheel
2. Install a foot pedal plunger and spring into each of
the front corner brackets (see Figure 5), and attach
a rubber foot (with M10-1.5 hex nut) to the bottom
of each foot pedal plunger.
3. Attach each foot pedal to front corner bracket using
(1) M8-1.25 x 52 shoulder bolt and (1) M8-1.25 lock
nut (see Figure 6).
4. Install each fixed caster wheels to rear corner brack-
ets using (1) M10-1.5 x 55 shoulder bolt and bearing
sleeves (see Figure 7).
Hex Bolt
(1 of 4)
Front
Corner
Bracket
Swivel
Caster
Lock Nut
(1 of 4)
Rubber
Foot
Plunger
Foot
Pedal
To Next Page
