Shop fox D4666 - Assembling Base Around Machine

-5-
D4666 Heavy-Duty Mobile Base
1. Install a foot pedal plunger and spring into each
of the front corner brackets (see Figure 12), and
attach a rubber foot (with M10-1.5 hex nut) to bot-
tom of foot lever plunger.
2. Attach each foot pedal to front corner bracket using
(1) M8-1.25 x 52 shoulder bolt and (1) M8-1.25 lock
nut (see Figure 13).
Items Needed Qty
Additional Person ...............................................1
Open-End Wrench 13mm.......................................1
Socket Wrench 13mm ..........................................1
12" 4x4 Block ....................................................1
12" 2x4 Block ....................................................1
Assembling Base Around Machine
The D4666 Mobile Base can assembled around oddly
shaped or heavy machinery. Always have an assistant
stabilize machine during mobile base assembly.
Spring
Plunger
Rubber
Foot

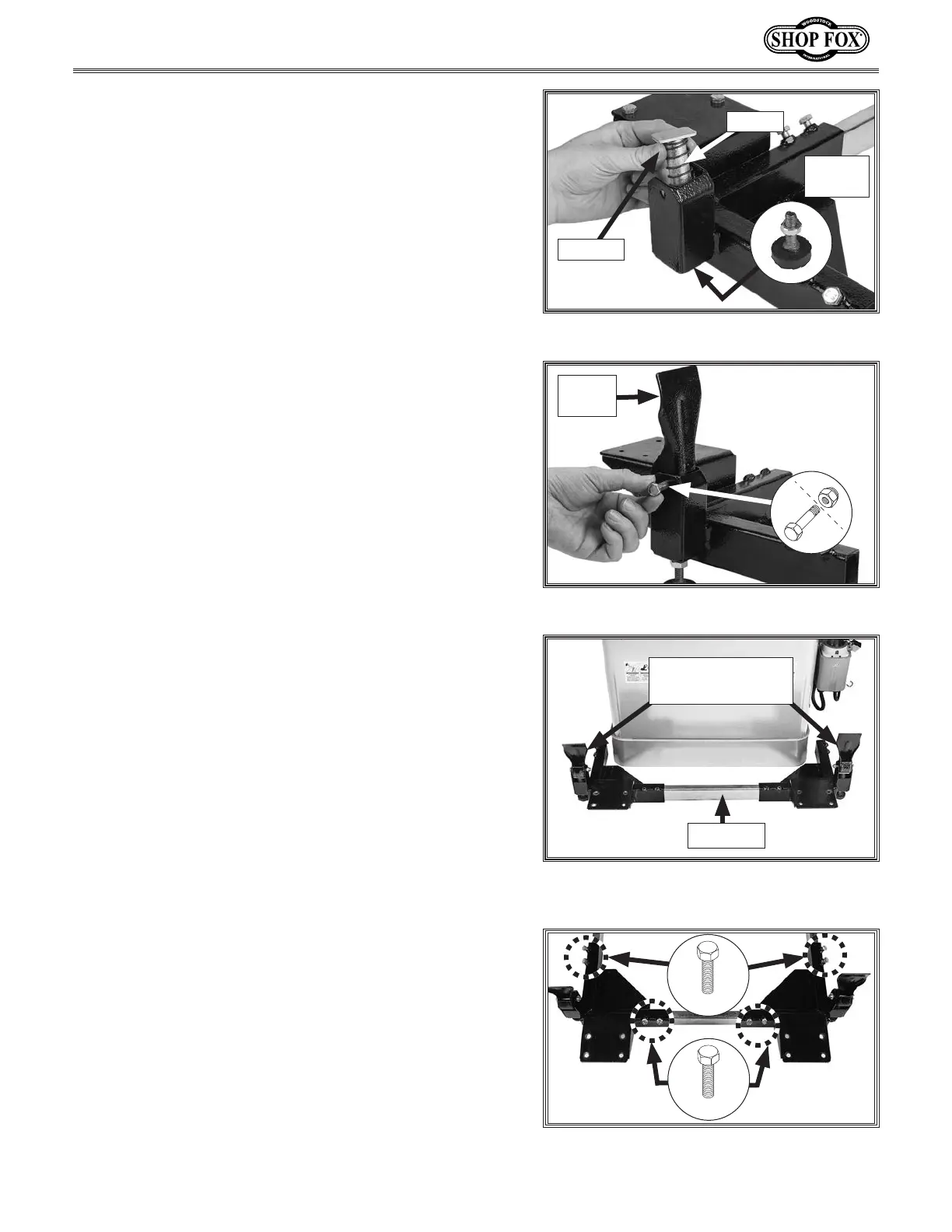

Figure 12. Installing foot lever assembly.
Figure 13. Attaching foot pedal.
Foot
Lever
Corner Brackets
with Rubber Feet
Side Rail
Figure 14. Rail inserted between corner
brackets with rubber feet.
3. Insert one side rail into the two front brackets, as
shown in Figure 14, then slide the bracket assembly
against the side of machine that will typically be
pushed against when moving the machine.
Figure 15. Rails fastened to brackets
(machine removed for clarity).
x 4
4. Secure each side rail to corner brackets with (4)
M8-1.25 x 16 hex bolts, as shown in Figure 15.
5. Slide other side rails into corner brackets from Step
4. Secure rails to corner brackets with (4) M8-1.25 x
16 hex bolts, as shown in Figure 15.
x 4
To assemble base around machine, do these steps:
